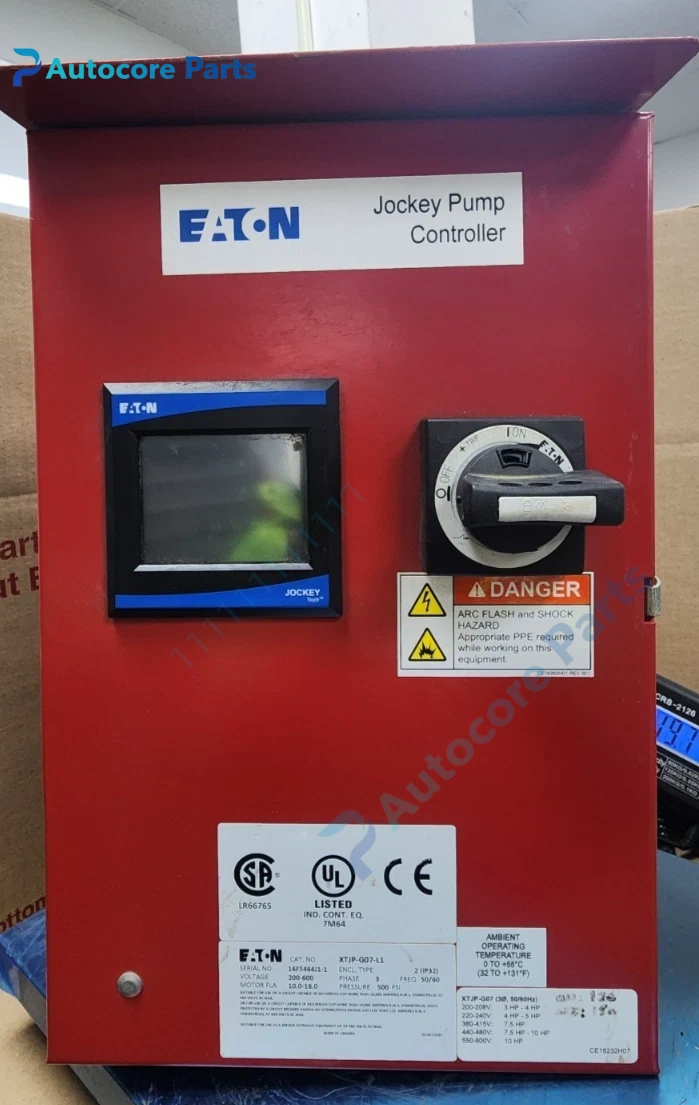

Eaton XTJP-G07-L1 Jockey Pump Controller Unit

Module Feature

XTJP-G07-L1 belongs to Eaton XTJP Jockey Touch fire jockey pump controller series, rated 7HP. It adopts direct full voltage starting method, the integrated combination motor controller integrates circuit breaker and thermal overload relay. Equipped with microprocessor-based color touchscreen interface for pressure setpoint adjustment, real-time monitoring and fault log review. NEMA4X metal enclosure provides dust and splash water protection, suitable for indoor fire pump room installation. Built-in pressure transducer interface, automatically starts and stops jockey pump to stabilize pipeline pressure of fire sprinkler system. Widely used for commercial building, warehouse and factory fire protection systems.

Working principle

Pressure sensor continuously detects fire pipeline pressure value and sends signal to main control board. When pipeline pressure drops below low pressure setpoint, controller energizes motor starter to start jockey pump for pressure supplement. When pressure rises above high pressure threshold, controller cuts off motor power to stop pump. Touchscreen records operating events and fault information for maintenance inspection.

Onboard components

NEMA4X metal cabinet, combination motor controller (circuit breaker + overload relay), main control PCB, color touchscreen HMI, pressure transducer terminal, internal control power transformer, wiring terminal blocks.

LED indicators

Power LED, run LED, fault alarm LED.

Hardware self-diagnosis

Overload, overcurrent, undervoltage, phase loss detection, pressure signal loss monitoring, fault history recording.

Programming software

No dedicated PC software; parameters can be programmed locally via touchscreen.

Electrical & Process Parameters

Model:XTJP-G07-L1 Brand:Eaton Device type:XTJP Series Jockey Touch Jockey Pump Controller Motor rating:7HP Start method:Full voltage across-the-line Enclosure:NEMA4X Supply voltage:200-600VAC 3-phase /110-240VAC single phase Frequency:50/60Hz Cooling:Natural convection cooling Protection:Motor overload, short circuit, phase loss, low pressure alarm

Mechanical & Structure

Mounting:Floor / wall mount Protection class:NEMA4X Housing:Painted metal enclosure

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,FM compliant for fire pump control Status: Eaton original XTJP series fire jockey pump controller for fire sprinkler pipeline pressure maintenance

Installation

Follow strict fire electrical safety procedure before handling.Mount controller firmly in fire pump room.Connect main power cable, jockey pump motor cable and pressure sensor wiring. Set high/low pressure thresholds on touchscreen, test automatic start-stop function before putting into fire protection service.

Interface

Main power terminals,motor output terminals,pressure transducer input port,touchscreen HMI,status alarm dry contact terminals.

Diagnostic

Pump fails to auto start:low pressure setpoint misconfigured, pressure transducer fault or motor overload trip. Continuous pump running:pipe leakage or high pressure threshold setup error. Fault alarm triggered:phase loss, overload or internal control power failure.

Product Brief

Eaton XTJP-G07-L1 XTJP series jockey pump controller,7HP full voltage start,NEMA4X cabinet with color touchscreen,for fire sprinkler system pipeline pressure maintaining and automatic jockey pump control.
