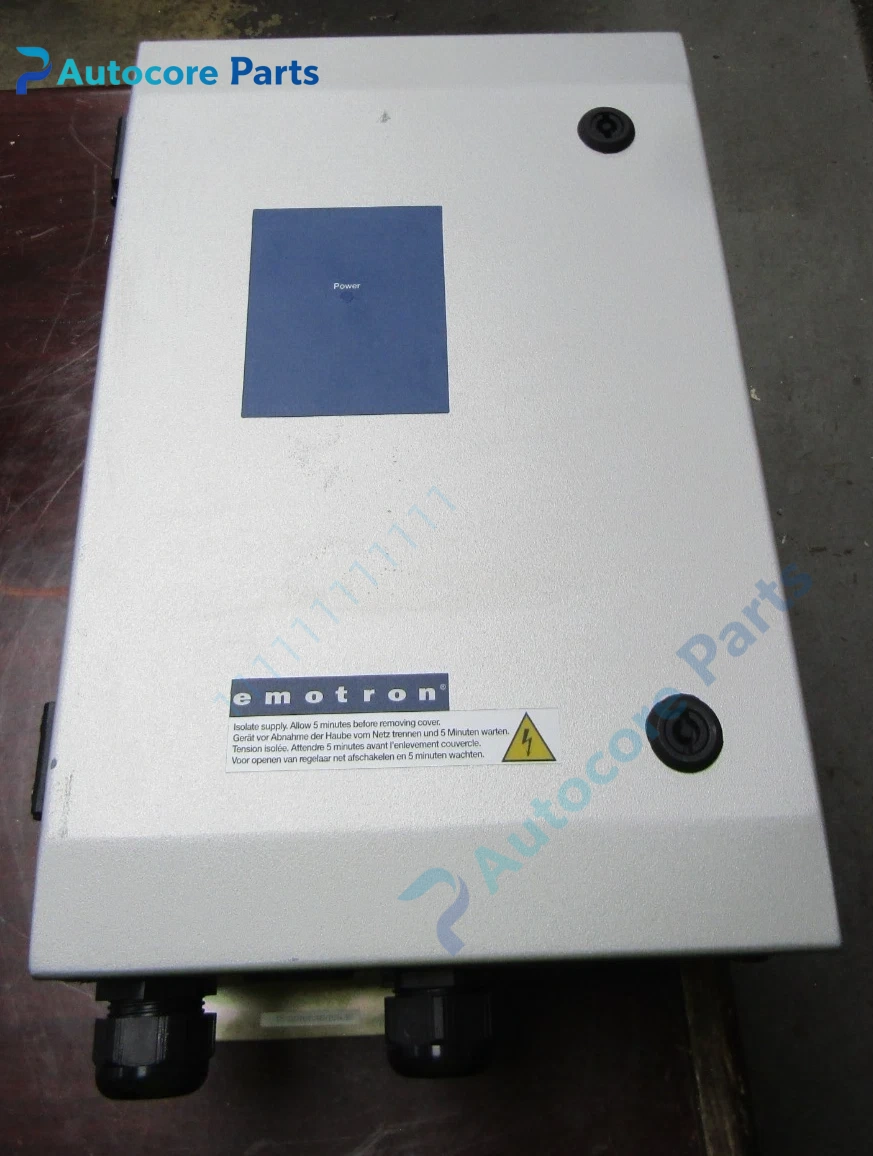

EG2T-40/400-EMC Variable Frequency Drive Unit

Module Feature

EG2T-40/400-EMC belongs to EG2T heavy-duty variable frequency drive series. It adopts high-performance IGBT power module, supporting V/F control and sensorless vector control. Built-in EMC filter suppresses electromagnetic interference on industrial site. Integrated braking interface connects external braking resistor to consume regenerative energy during rapid deceleration. Digital control board reserves multiple analog and digital I/O terminals, standard Modbus RTU communication interface for PLC and industrial network connection. Equipped with built-in cooling fan and metal housing, suitable for continuous heavy-load operation. Widely applied in water pumps, industrial fans, material conveyors and other heavy-duty motor speed control scenarios.

Working principle

Three-phase AC input power passes through rectifier bridge and converts to DC voltage. IGBT inverter converts DC into adjustable frequency and voltage AC power to drive the motor. The motor speed changes with output frequency adjustment. When the motor decelerates, regenerative energy returns to DC bus; external braking resistor consumes excess energy to avoid overvoltage trip.

Onboard components

Input rectifier module, IGBT power module, DC bus capacitor, EMC filter, main control PCB, digital/analog I/O terminal block, cooling fan, operation keypad, status indicator panel.

LED indicators

Power LED, run LED, fault alarm LED.

Hardware self-diagnosis

Overvoltage, undervoltage, overcurrent, over-temperature, short circuit, ground fault detection, records fault code and historical operation logs.

Programming software

Manufacturer PC software for parameter backup, real-time running monitoring and firmware upgrade.

Electrical & Process Parameters

Model:EG2T-40/400-EMC Brand:Device type:EG2T Series Heavy Duty 3-phase Variable Frequency Drive Rated power:40kW Rated voltage:400V Control mode:V/F, Sensorless vector control Communication:Modbus RTU Built-in accessory:EMC filter Cooling:Forced air cooling Protection:Overcurrent, overvoltage, undervoltage, over temperature, short circuit, earth fault

Mechanical & Structure

Mounting:Panel mount inside control cabinet Protection class:IP20 Housing:Metal painted enclosure

Environmental

Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status: Original heavy-duty VFD for industrial motor variable speed control

Installation

Follow strict ESD and high voltage safety procedure before handling. Mount the drive vertically in control cabinet and reserve sufficient ventilation space. Connect main power cable and motor cable to corresponding terminals, set motor nameplate parameters before commissioning.

Interface

Power input terminals, motor output terminals, digital/analog I/O terminals, Modbus communication port, keypad interface.

Diagnostic

Drive trip on startup: motor cable short circuit, wrong motor parameters or winding insulation damage. Over temperature fault: cooling fan failure or insufficient cabinet ventilation. No communication: incorrect Modbus station address or wiring error.

Product Brief

EG2T-40/400-EMC EG2T series heavy-duty variable frequency drive, 3-phase 40kW 400V, built-in EMC filter, IP20 panel mount, for industrial fan, pump and heavy machinery speed regulation.
