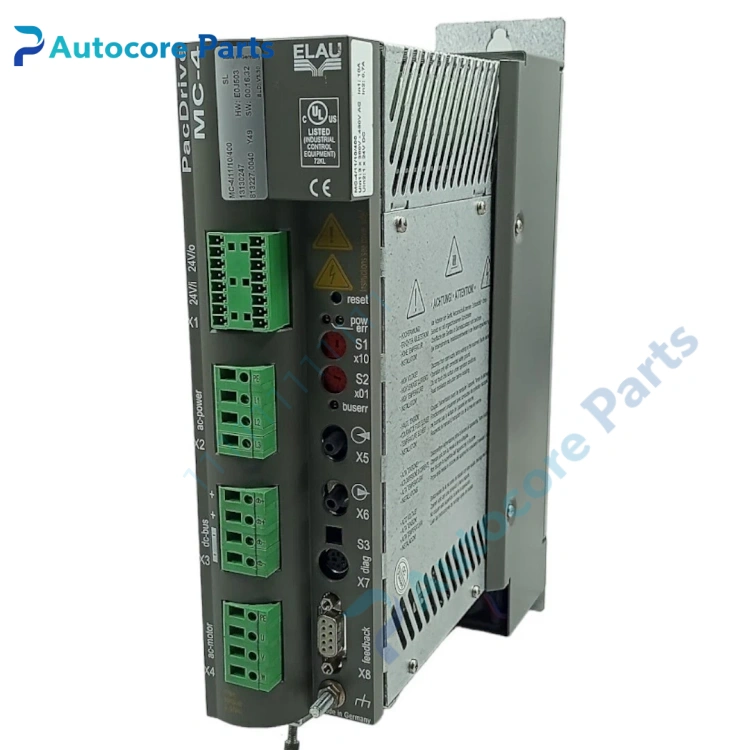

ELAU MC-4/11/10/400 PacDrive MC-4 Digital Servo Amplifier

Feature & Principle

It is ELAU PacDrive MC-4 series integrated single-axis servo drive (owned by Schneider). It integrates rectifier and inverter, adopts SERCOS fiber real-time bus. Motion trajectory is calculated by PacDrive C200/C300 master controller, this drive executes position, speed and torque closed-loop control for SH series synchronous servo motors. It is widely used on high-speed packaging machines. This model is discontinued.

Specifications

Model: MC-4/11/10/400 Brand: ELAU (Schneider) Series: PacDrive MC-4 Rated power: 4kW Input: 3AC 380~480V Bus: SERCOS Mounting: DIN rail, IP20 Matched controller: C200 / C300 Matched motor: ELAU SH servo motor Application: Packaging, filling, cartoning automation line Certification: CE, UL

Components & Diagnostics

IGBT power module, rectifier bridge, SERCOS communication board, control motherboard, cooling fan, status LED. Common faults: fan failure, SERCOS communication loss, IGBT breakdown, overcurrent alarm, firmware corruption.

Product Brief

MC-4/11/10/400 servo drive, ELAU PacDrive obsolete motion spare widely used for packaging machine overhaul and replacement.
