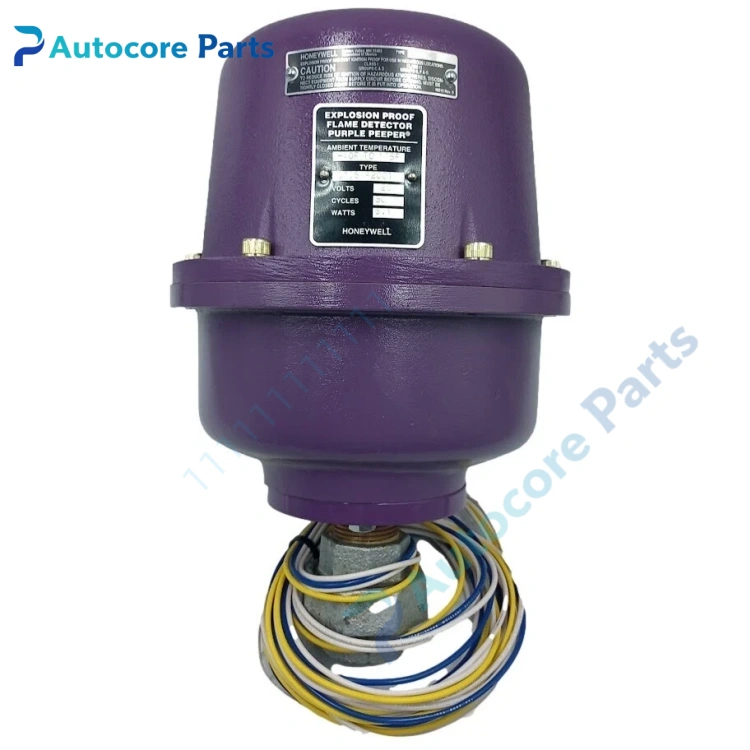

Honeywell C7061F2001 Ultraviolet Flame Detector

Feature & Principle

It is Honeywell C7061 series explosion-proof ultraviolet flame detector. It captures ultraviolet radiation generated by fuel combustion. Built-in oscillating shutter for dynamic self-check, it automatically judges UV tube and circuit health status. It must cooperate with R7861 flame amplifier and 7800 series burner controller, used for continuous flame monitoring of gas and oil burners. The quartz window and UV sensing tube can be replaced on site.

Specifications

Model: C7061F2001 Brand: Honeywell Power: 120VAC, 50/60Hz Type: UV ultraviolet, dynamic self-check Housing: Explosion-proof cast aluminum purple housing Ambient temp: -40℃ ~ +80℃ Window pressure rating: 100psi Mounting: Any angle installation Matching amplifier: R7861 Application: Boiler, furnace, industrial burner, hazardous area combustion safety monitoring Certification: CE, UL, Class I C/D, Class II E/F/G

Components & Diagnostics

UV sensing tube, quartz viewing window, shutter mechanism, explosion-proof housing, wiring lead. Common faults: window fouling, UV tube aging, shutter stuck, wiring loose, false flame / loss of flame signal.

Product Brief

C7061F2001 flame detector, Honeywell combustion safety spare widely used for boiler and burner overhaul and replacement.
