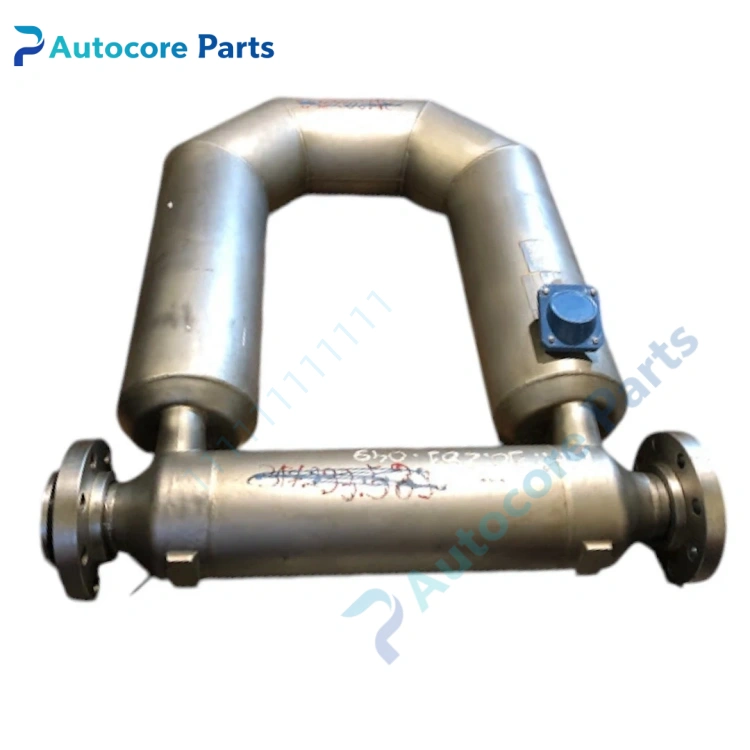

Emerson Micro Motion CMF300M Coriolis Mass Flowmeter

Feature & Principle

It adopts Coriolis effect measurement principle. The fluid flows through the vibrating measuring tube to generate Coriolis force, and the sensor detects the phase difference of the tube vibration to calculate mass flow. It can simultaneously output density and medium temperature signals, no need for temperature and pressure compensation. Dual tube design reduces pipeline vibration interference, supports Smart Meter Verification self-check function, can be matched with 1700/2700 transmitters, has multiple explosion-proof options, stable for high viscosity, high pressure and complex fluid working conditions.

Specifications

Model: CMF300M551NRJZPZZZ Brand: Emerson Micro Motion Series: ELITE Tube structure: Dual measuring tube Liquid accuracy: ±0.10% (standard) Gas accuracy: ±0.25% Density accuracy: ±0.0005 g/cm³ Material: 316L stainless steel wetted parts Process connection: Flange Communication: Matched with transmitter for 4-20mA, HART, Modbus Explosion-proof: Ex d / Ex i optional Application: Petrochemical, natural gas, refining, pharmaceutical, custody transfer Certification: CE, ATEX, SIL optional

Components & Diagnostics

Vibrating measuring tube, drive coil, signal pickup coil, sensor housing, junction box, temperature probe. Common faults: tube coating fouling, coil damage, signal cable failure, vibration interference, zero drift.

Product Brief

CMF300M551NRJZPZZZ Coriolis mass flow sensor, Emerson high precision flow spare widely used for oil, chemical and process measurement cabinet maintenance and replacement.
