GE IS200VRTDH1D RTD Input Board

Feature & Principle

It is a dedicated RTD temperature acquisition board for GE Speedtronic Mark VI VME rack. It supplies excitation current to 3-wire RTD sensors such as Pt100, samples resistance value and converts into digital temperature value, then transmits data to main controller via backplane bus. It supports multi-point temperature monitoring for turbine bearing, generator winding and oil temperature. With built-in open/short circuit diagnosis for sensor loop. Conformal coating protects circuit from moisture and corrosive gas in power plant cabinet.

Specifications

Model: IS200VRTDH1D Brand: GE Series: Speedtronic Mark VI Channel: 16 RTD inputs, 3-wire Sensor type: Pt100 Installation: VME single slot plug-in Indicator: RUN / FAULT / STATUS LED Working temperature: 0 ~ 60℃ Humidity: 5~95% non-condensing Coating: Conformal coated Application: Gas turbine, steam turbine, generator temperature monitoring Certification: CE

Components & Diagnostics

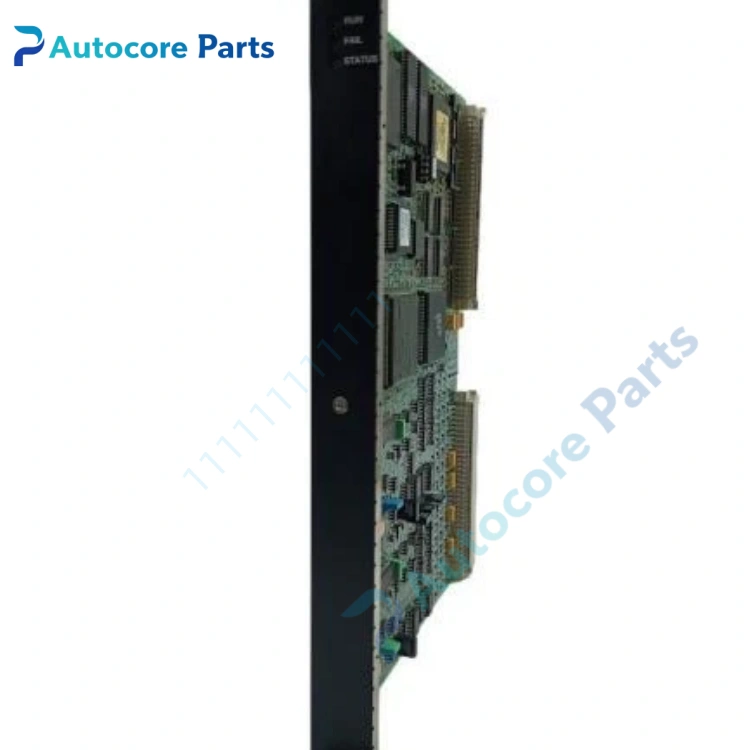

Main PCB, multiplexer circuit, A/D conversion chip, FPGA, backplane gold finger, status LED. Common faults: channel drift, sensor loop false alarm, board no communication, component aging, PCB corrosion.

Product Brief

IS200VRTDH1D RTD temperature input board, GE obsolete Speedtronic spare widely used for turbine and generator temperature monitoring cabinet overhaul and replacement.
