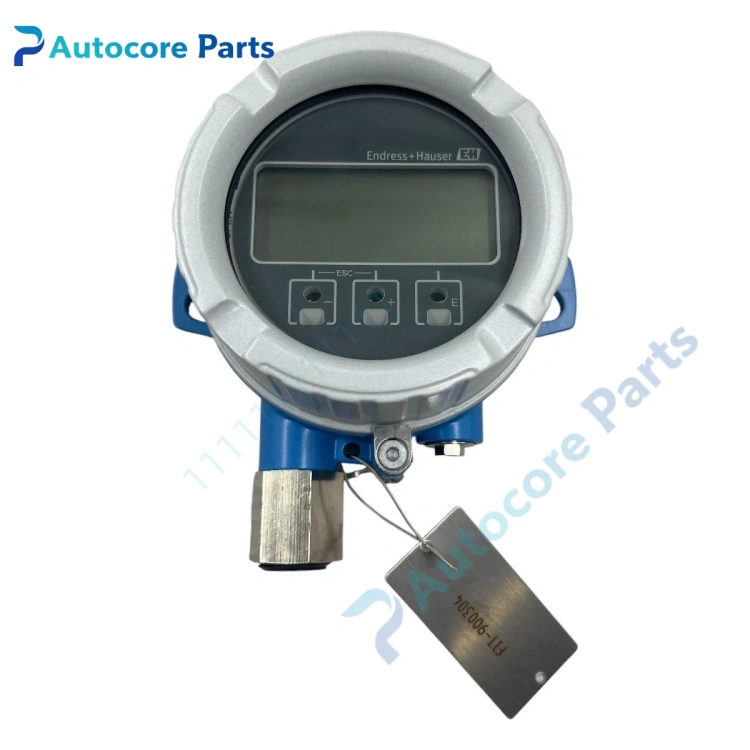

Endress+Hauser DKX001 Remote Display Module

Feature & Principle

It is a remote display and operation accessory developed by Endress+Hauser. It connects to the transmitter through dedicated signal cable to realize remote viewing of measurement values and on-site parameter setting. It adopts touch operation and 4-line backlit screen. Only one display unit can work with one transmitter at the same time, the built-in explosion-proof version is available for hazardous areas. It is widely used for instruments installed in hard-to-reach locations.

Specifications

Model: DKX001 Brand: Endress+Hauser Display: 4-line backlit LCD, touch control Compatible devices: Promag, Promass, Micropilot, tank gauging series Max cable length: Up to 300 m Housing material: Aluminum alloy Certification: ATEX, IECEx Mounting: Wall / pipe bracket mounting Application: Flow, level and tank inventory measurement in chemical, oil & gas, water treatment Certification: CE

Components & Diagnostics

Display circuit board, touch panel, aluminum enclosure, sealing gasket, terminal block. Common faults: no screen backlight, communication interruption with transmitter, touch failure, seal aging.

Product Brief

DKX001 remote display module, Endress+Hauser process instrument accessory widely used for flow and level transmitter overhaul and replacement.
