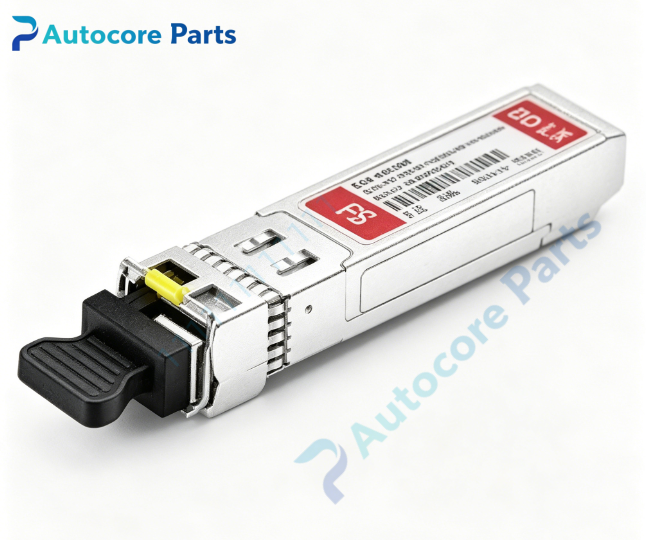

Extreme Networks 1000BASE-BX-D SFP Optical Transceiver

Technical SpecificationsModel：1000BASE-BX-D Brand：Extreme Networks Product Type：Hot-pluggable SFP optical transceiver

Interface: LC simplex connector Rate: 1.25Gbps 1000BASE-BX Wavelength: TX 1490nm, RX 1310nm Fiber type: Single mode fiber (SMF OS1/OS2) Max reach: 10km Diagnostic: DDM / DOM digital optical monitoring Operating voltage: 3.3V Transmit power: -9 ~ -3 dBm Receiver sensitivity: -19 dBm

Physical Parameter Weight：0.02kg Dimension：13.5mm(H) ×14.3mm(W) ×85mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

1000BASE-BX-D is Extreme original bidirectional single-fiber gigabit SFP transceiver. Compatible with Extreme Summit X440, X450a, VSP series switches equipped with SFP slots. It must be paired with 1000BASE-BX-U module at the opposite end of the fiber link. Supports DDM real-time monitoring of optical power, temperature and supply voltage. Widely used for scenarios with limited fiber cores in enterprise campus and factory gigabit links.

Function

1000BASE-BX-D adopts WDM bidirectional transmission technology, sending and receiving optical signals on one single-mode fiber. It transmits at 1490nm and receives at 1310nm, matching with BX-U module. DDM function can read transceiver working parameters in real time. This module saves fiber resources for 10km gigabit point-to-point singlemode fiber connection.

Installation

Wear ESD anti-static wrist strap. Insert the SFP module fully into the SFP port of switch. Connect LC simplex singlemode fiber patch cord. Make sure the remote side uses 1000BASE-BX-U. Power on the equipment, verify module identification, DDM optical power reading and link status via switch CLI before commissioning.

InterfaceSFP gold finger, LC simplex fiber port, status indicator for Extreme Networks 1000BASE-BX-D.

FeatureOriginal Extreme 1000BASE-BX-D SFP bidirectional optical transceiver,1490nm TX /1310nm RX,10km single fiber transmission,built-in DDM digital diagnostic function,hot-pluggable,simplex LC interface,low power consumption. This spare is designed for gigabit fiber links with insufficient fiber cores.

DiagnosticModule undetected: Check gold finger cleanliness, SFP port health. No optical link: Verify fiber polarity, singlemode fiber quality and confirm remote module is 1000BASE-BX-U. Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged singlemode fiber cables. DDM read failure: Confirm switch firmware supports DOM function. Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Product Brief1000BASE-BX-D is Extreme Networks hot-pluggable single-fiber bidirectional SFP transceiver with 1490nm transmit /1310nm receive wavelength and max 10km transmission,classic spare part for enterprise gigabit single fiber link overhaul.
