Extreme Networks 10GB-BX10-D SFP+ Optical Transceiver

Technical SpecificationsModel：10GB-BX10-D Brand：Extreme Networks Product Type：Hot-pluggable SFP+ optical transceiver

Interface: LC simplex connector Rate: 10.3125Gbps 10GBASE-BX Wavelength: TX 1330nm, RX 1270nm Fiber type: Single mode fiber (SMF OS1/OS2 G.652) Max reach: 10km Diagnostic: DOM / DDM digital optical monitoring Operating voltage: 3.3V Transmit power: -8.2 ~ 0.5 dBm Receiver sensitivity: -14.4 dBm Max power consumption: ≤1W

Physical Parameter Weight：0.02kg Dimension：13.5mm(H) ×14.3mm(W) ×85mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

10GB-BX10-D is Extreme original 10G bidirectional single-fiber SFP+ transceiver. Compatible with Extreme Summit and VSP series switches equipped with SFP+ slots. It must be paired with 10GB-BX10-U module at the opposite end of the single fiber link. Supports DOM real-time monitoring of optical power, temperature, supply voltage and laser bias current. Widely used in enterprise campus and factory 10G backbone when fiber resources are limited.

Function

10GB-BX10-D uses WDM bidirectional transmission technology, transmitting and receiving optical signals over one single-mode fiber. It transmits at 1330nm and receives at 1270nm, matched with 10GB-BX10-U on remote side. DOM function can read real-time operating parameters of the transceiver. This module saves fiber cores for 10km 10G point-to-point singlemode fiber interconnection.

Installation

Wear ESD anti-static wrist strap. Insert the SFP+ module fully into the SFP+ port of switch. Connect LC simplex singlemode fiber patch cord. Confirm the far-end transceiver is 10GB-BX10-U. Power on the equipment, verify module identification, DOM optical power reading and link status via switch CLI before commissioning.

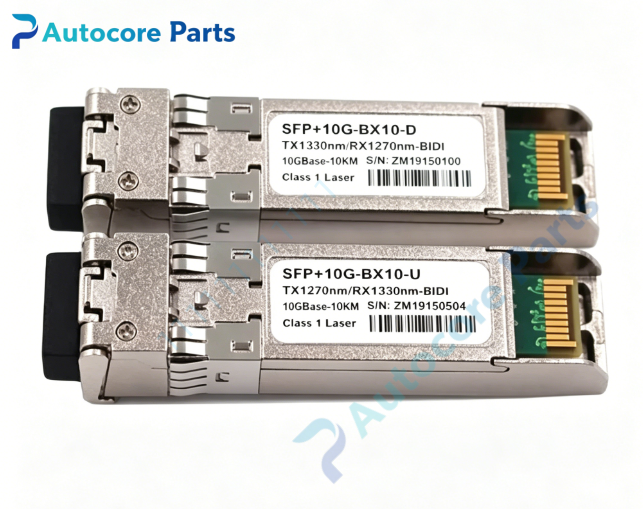

InterfaceSFP+ gold finger, LC simplex fiber port, status indicator for Extreme Networks 10GB-BX10-D.

FeatureOriginal Extreme 10GB-BX10-D SFP+ bidirectional optical transceiver,1330nm TX /1270nm RX,10km single fiber transmission,built-in DOM digital diagnostic function,hot-pluggable,simplex LC interface,low power consumption. This spare is designed for 10G fiber links with limited fiber pairs.

DiagnosticModule undetected: Check gold finger cleanliness, SFP+ port health. No optical link: Verify fiber polarity, singlemode fiber quality and confirm remote module is 10GB-BX10-U. Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged singlemode fiber cables. DOM read failure: Confirm switch firmware supports DOM function. Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Product Brief10GB-BX10-D is Extreme Networks hot-pluggable single-fiber bidirectional SFP+ transceiver with 1330nm transmit /1270nm receive wavelength and max 10km transmission,classic spare part for enterprise 10G single fiber backbone link overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
