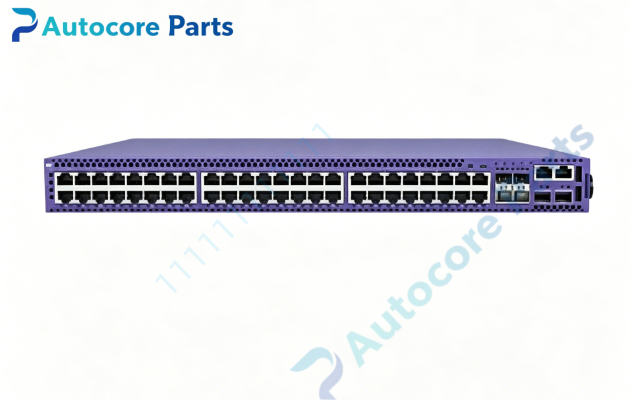

Extreme Networks 5420F-16MW-32P-4XE Multi-Gigabit PoE Managed Switch

Technical SpecificationsModel：5420F-16MW-32P-4XE Brand：Extreme Networks Product Type：1U rackmount Layer2/Layer3 managed PoE switch

Ports:

• 16 ×100M/1G/2.5GBASE-T multi-speed copper ports, IEEE802.3bt Type4 PoE, max 90W per port, MACsec hardware supported

• 32 ×10/100/1000BASE-T RJ45 copper ports, IEEE802.3at PoE+, max 30W per port, MACsec hardware supported

• 4 ×1G/10G auto-sensing SFP+ uplink slots, MACsec capable

• 2 ×SFP-DD universal high-speed stacking ports

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB Micro-B console port

• 2 ×USB-A ports for configuration backup & file storage

Switching capacity：256Gbps Forwarding rate：190.5Mpps MAC address table：64000 entries Jumbo frame：9216 bytes PoE total power budget：1200W Security：Hardware MACsec link encryption for all ports Stacking：High-speed stacking via SFP-DD ports, up to 8 switches in one stack OS：Switch Engine / Fabric Engine, compatible with ExtremeCloud IQ cloud management

Power & fan：Built-in 1200W fixed AC PoE PSU, vacant slot for optional redundant power supply, three fixed hot-swappable fan modules, front-to-back airflow Operating temperature：0℃ ~ +50℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：6.64kg

System compatibility

5420F-16MW-32P-4XE belongs to ExtremeSwitching 5420F universal enterprise edge family. Compatible with Extreme validated 1G SFP,10G SFP+ optical transceivers and SFP-DD stacking modules. Supports stacking within the whole 5420 series platform. Local management via CLI/web GUI or remote cloud management by ExtremeCloud IQ. Widely used for enterprise campus, office, hospital PoE access for Wi-Fi 6/6E APs, PTZ IP cameras and high-power IP terminals spare replacement.

Function

5420F-16MW-32P-4XE is high-performance hybrid multi-gigabit Layer3 PoE edge switch. 16 multi-gig 90W bt ports supply high power and 2.5G bandwidth for high-performance wireless access points; 32 gigabit 30W PoE+ ports connect standard IP cameras, IP phones and terminals. Four SFP+ ports provide 1G/10G fiber uplink to aggregation layer; dual SFP-DD ports realize high-speed stacking. Hardware MACsec supports end-to-end data link encryption. It supports static & dynamic routing,VLAN,STP/RSTP/MSTP,LACP link aggregation,ACL,QoS and multicast snooping. It monitors port link state,PoE power consumption,system temperature and fan health, and generates hardware fault alarms. Used for enterprise wiring closet hybrid multi-gig PoE access networks.

Installation

Mount the switch on standard 19-inch 1U rack. Connect AC power cable, redundant PSU can be installed for power redundancy. Insert SFP/SFP+ transceivers and fiber patch cords for uplink. Install SFP-DD stacking modules if stacking topology required. Connect console port for initial configuration. Verify boot,port optical link,PoE output and stacking function before commissioning.

Interface16×2.5G 90W PoE RJ45 ports,32×1G 30W PoE+ RJ45 ports,4×SFP+ 1G/10G uplink slots,2×SFP-DD stacking ports,1G out-of-band management port,RJ45 serial console,USB Micro-B,dual USB-A,status LEDs,reset button,AC power inlet,redundant PSU slot,ground terminal,rack mounting ears for Extreme Networks 5420F-16MW-32P-4XE.

FeatureOriginal ExtremeSwitching 5420F 1U rackmount hybrid multi-gigabit PoE Layer3 edge switch,16×2.5G 90W 802.3bt ports plus 32×1G 30W 802.3at PoE+ ports,total 1200W PoE budget,4×1/10G SFP+ uplink,dual SFP-DD stacking interfaces,hardware MACsec encryption,cloud & local dual management,three independent fan modules,built-in self-diagnostic function. This spare is ideal for high-power multi-gig enterprise edge access deployment.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. PoE port no power: Verify PoE total budget,PD device classification and port admin status. Multi-gig port negotiation failure: Inspect Cat5e/Cat6 cable quality and auto-negotiation parameters. SFP+ port no link: Check SFP+ transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible SFP/SFP+ module and correct insertion. MACsec negotiation failure: Verify MACsec security key and peer device configuration. Over-temperature alarm: Check three fan modules running status and rack ventilation,clean dust buildup. Stacking unstable: Verify matched firmware version and SFP-DD stacking module connection.

Product Brief5420F-16MW-32P-4XE is ExtremeSwitching 5420F series 1U rackmount Layer3 hybrid multi-gigabit PoE managed switch with 16×2.5G 90W bt PoE ports,32×1G 30W at PoE+ ports,4×1G/10G SFP+ uplink ports and 2 SFP-DD stacking ports,classic spare part for high-power multi-gig enterprise wiring closet edge access network overhaul.
