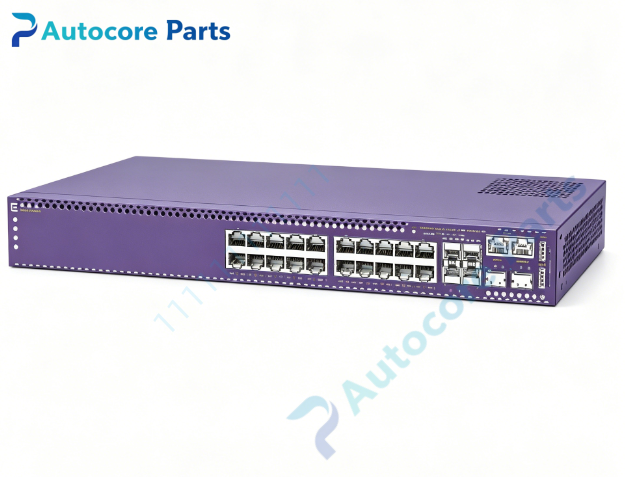

Extreme Networks 5420M-24T-4YE Ethernet Switch

Technical SpecificationsModel：5420M-24T-4YE Brand：Extreme Networks Product Type：1RU Rack Mount Universal Enterprise Edge Switch

Port Configuration: 24 × 10/100/1000BASE-T RJ45 ports,autosensing full/half duplex,MACsec enabled,non-PoE 4 × 25G SFP28 empty uplink slots, MACsec capable 1 × 10/100/1000BASE-T out-of-band management port 1 × RJ45 serial console port 2 × USB-A port for firmware/configuration storage 1 × Micro-B USB console port

Switch Performance: Switching bandwidth 320Gbps, forwarding rate 238Mpps, non-blocking wire-speed architecture Software: Dual operating system support, Switch Engine / Fabric Engine. Managed via ExtremeCloud IQ or on-prem Site Engine Stacking: Up to 8 units stacking within 5420M series; cross-series stacking not supported Power supply: Fixed primary AC PSU, optional secondary field-replaceable PSU slot, input 100-240Vac, 47~63Hz Operating temperature：0℃ ~ +50℃ Dimension: 44mm(H) ×440mm(W) ×280mm(D) Weight: 3.7kg

System compatibility

5420M-24T-4YE belongs to Extreme 5420M universal edge switch family. SFP28 slots support Extreme 10G /25G optical transceivers including SR, LR modules. Supports cloud zero-touch provisioning or local CLI management. Suitable for enterprise campus, office wiring closet, server room high density wired access deployment. Stackable with other 5420M series switches to expand access network scale.

Function

5420M-24T-4YE is universal non-PoE gigabit edge switch. The 24 RJ45 ports provide wired access for PC, printer, low-power network terminals. 4 SFP28 slots deliver high-speed 25G fiber uplink for high bandwidth aggregation. Built-in MACsec for link-layer encryption. Supports static routing, VLAN, QoS, port security, storm control, ACL and network monitoring. Flexible OS selection adapts to traditional switched network or fabric architecture.

Installation

Mount the switch to standard 19-inch 1RU equipment rack. Connect protective earthing and AC power cord. Connect RJ45 cables to end network devices. Insert SFP28 transceiver into SFP28 slot and connect fiber cable. Boot and select Switch Engine or Fabric Engine OS. Configure via console or ExtremeCloud IQ. Verify port negotiation, MACsec and stacking status after commissioning.

InterfaceGigabit RJ45 port, SFP28 transceiver slot, OOB management port, RJ45 serial console, USB-A, Micro-B USB console for Extreme Networks 5420M-24T-4YE.

FeatureOriginal Extreme 5420M-24T-4YE 1RU universal non-PoE gigabit access switch,24×Gigabit MACsec RJ45 ports plus 4×25G SFP28 uplink slots,support dual operating system,cloud or on-prem management,optional redundant power supply. This spare is designed for enterprise wiring closet wired access network requiring 25G uplink.

DiagnosticDevice undetected: Check AC power input, power cord and earthing. RJ45 port no link: Verify copper cable quality, check auto-negotiation configuration. SFP28 port no link: Confirm transceiver compatibility, fiber quality, fiber polarity and RS-FEC configuration. Stacking failure: Ensure Switch Engine OS is active, inspect stacking cable and port assignment. MACsec link down: Check matching MACsec encryption key on both ends of link. Over-temperature alarm: Inspect fan operation and rack air circulation.

Product Brief5420M-24T-4YE is Extreme Networks universal wire-speed non-PoE gigabit edge switch with 24 MACsec-capable RJ45 ports and four 25G SFP28 uplink ports,classic spare part for enterprise wiring closet wired access network replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
