Extreme Networks 5420M-24W-4YE Multi-Gigabit PoE Managed Switch

Technical SpecificationsModel：5420M-24W-4YE Brand：Extreme Networks Product Type：1U rackmount Layer2/Layer3 managed PoE switch

Ports:

• 24 ×100M/1G/2.5GBASE-T multi-gig copper ports, IEEE802.3bt PoE, max 90W per port, hardware MACsec supported

• 4 ×25G SFP28 multi-rate uplink slots, compatible with 10G/25G transceivers

• 2 ×SFP-DD high-speed stacking ports

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB Micro-B console port

• 2 ×USB-A ports for configuration backup

Switching capacity：336Gbps Forwarding rate：250Mpps MAC address table：64000 entries Jumbo frame：9216 bytes PoE total power budget：1440W Security：Hardware MACsec link encryption Stacking：High-speed stacking via SFP-DD ports, up to 8 switches in stack OS：Switch Engine / Fabric Engine, support ExtremeCloud IQ cloud management

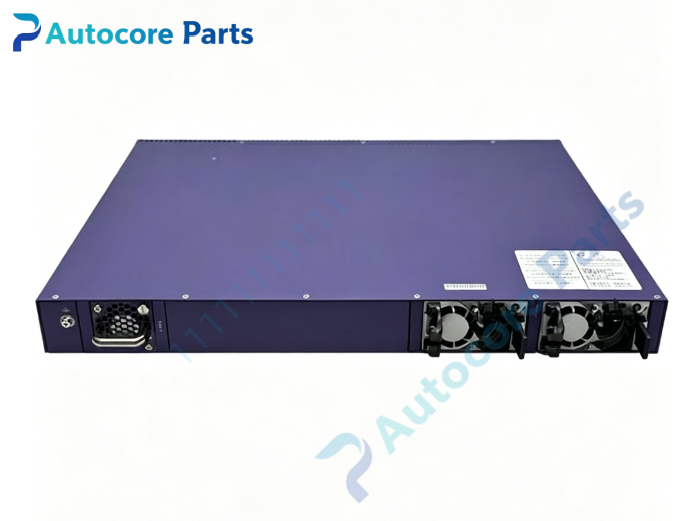

Power & fan：Built-in 1440W AC PoE power supply, optional redundant PSU slot, three variable speed hot-swappable fan modules, front-to-back airflow Operating temperature：0℃ ~ +50℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：7.1kg

System compatibility

5420M-24W-4YE belongs to ExtremeSwitching 5420M multi-gig enterprise edge family. Compatible with Extreme validated 10G SFP+,25G SFP28 transceivers and SFP-DD stacking modules. Stacking available within 5420 series. Managed locally by CLI/web GUI or remotely via ExtremeCloud IQ. Widely deployed for high-performance enterprise campus, hospital, smart building to supply Wi-Fi 6/7 APs, high-power PTZ cameras spare replacement.

Function

5420M-24W-4YE is high density multi-gigabit Layer3 PoE edge switch. 24 ports deliver 2.5G bandwidth and up to 90W PoE power for high-power wireless access points and industrial IP devices. Four SFP28 ports support 10G/25G fiber uplink to aggregation switches. Dual SFP-DD ports realize high-speed stacking. Hardware MACsec encrypts data on link layer. It supports static & dynamic routing, VLAN, STP/RSTP/MSTP, LACP, ACL, QoS and multicast snooping. It monitors port link status, PoE power consumption, system temperature and fan health, and triggers hardware fault alarms. Suitable for high-speed multi-gig enterprise access networks.

Installation

Mount the switch on standard 19-inch 1U rack. Connect AC power cable. Install redundant PSU for power redundancy if needed. Insert SFP28 transceivers and fiber cords for uplink. Fit SFP-DD stacking modules when stacking topology required. Connect console port for initial configuration. Verify boot,port link,PoE output and stacking function before commissioning.

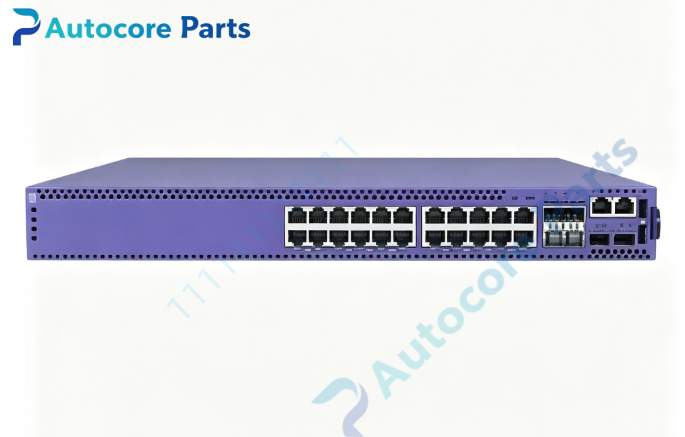

Interface24×2.5G 90W PoE RJ45 ports,4×SFP28 10G/25G uplink slots,2×SFP-DD stacking ports,1G out-of-band management port,RJ45 serial console,USB Micro-B,dual USB-A,status LEDs,reset button,AC power inlet,redundant PSU slot,ground terminal,rack mounting ears for Extreme Networks 5420M-24W-4YE.

FeatureOriginal ExtremeSwitching 5420M 1U rackmount multi-gigabit PoE Layer3 switch,24×2.5G 802.3bt 90W PoE ports,4×25G SFP28 uplink ports,dual SFP-DD stacking interfaces,1440W total PoE budget,hardware MACsec encryption,cloud and local dual management,three smart fans,built-in self-diagnostic function. This spare is perfect for Wi-Fi7 and high power terminal edge deployment.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. PoE port no power: Verify PoE budget,PD classification and port admin status. Multi-gig port negotiation failure: Check Cat6 cable quality and auto-negotiation. SFP28 port link down: Verify SFP28 transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible optical module and correct insertion. MACsec negotiation failure: Check security key and peer device configuration. Over-temperature alarm: Inspect fan operation and cabinet ventilation,remove dust. Stacking unstable: Confirm matched firmware and correct SFP-DD stacking connection.

Product Brief5420M-24W-4YE is ExtremeSwitching 5420M series 1U rackmount Layer3 multi-gigabit PoE managed switch with 24×2.5G 90W bt PoE ports and 4×25G SFP28 uplink ports,classic spare part for high-speed enterprise edge access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
