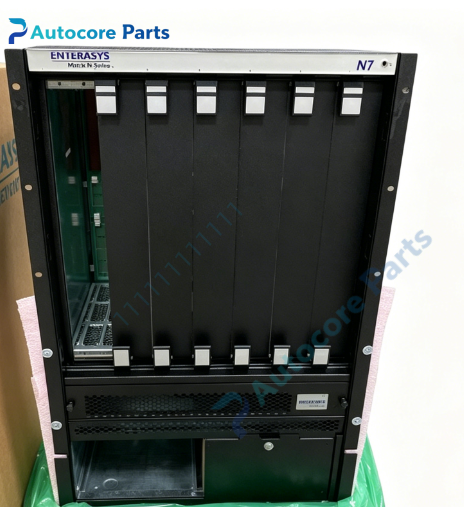

Extreme Networks 7C107 Matrix N7 Modular Chassis

Technical SpecificationsModel:7C107 Brand:Extreme Networks Product Type:7-slot modular switch chassis (Matrix N7) Slots:7 slots for DFE/Platinum DFE I/O line cards Power:Supports dual hot-swappable 1600W AC power supply module 6C207-3 Cooling:Hot-swappable fan tray model 6C407 Architecture:Distributed forwarding DFE architecture OS:EOS (Enterasys Operating System) Dimensions:77.47cm(H) ×44.04cm(W) ×36.83cm(D) Weight:23.6 kg (with factory fan tray) Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing

System compatibility7C107 is Extreme Networks Matrix N7 chassis, formerly Enterasys. Compatible with all Matrix N-series DFE and Platinum DFE line cards including 7H4382 series,7G4202 series,7G4200 series. It supports dual redundant power supplies and hot-swappable fan tray for high availability. Widely used for legacy enterprise core and aggregation network spare replacement.

Function7C107 is the main enclosure of Matrix N7 core switch. It provides backplane interconnection for all installed line cards, power distribution and system cooling. It supports 1+1 redundant power input and hot swap of fan tray without power interruption. It works with DFE line cards to realize wire-speed Layer2 switching, Layer3 routing,ACL,QoS,multicast and security control. It collects hardware status of all modules, power supplies and fans, and reports fault alarms via LANVIEW LED and SNMP. Used for enterprise campus core and aggregation layer large-scale network deployment.

InstallationMount 7C107 chassis to standard 19-inch rack, ensure 3-inch clearance for ventilation. Install power supplies and fan tray first, then insert DFE line cards into the slots. Connect AC power cables. Connect console port to configure EOS system. Verify chassis power-on, fan operation and module recognition before putting into production.

InterfaceFront panel:module slot bays, fan tray, LANVIEW status LEDs; rear panel:power supply bays, ground terminal for Extreme Networks 7C107.

FeatureOriginal Extreme Networks Matrix N7 series 7-slot modular chassis, high-density multi-slot design, support hot swap fan and redundant power supply, distributed DFE forwarding architecture, hardware fault monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise core and aggregation resilient network deployment.

DiagnosticChassis fails to power on: check AC input and power supply installation. Fan alarm: inspect fan tray seating and dust buildup. Line card not detected: check line card insertion and backplane contact. Over-temperature alarm: check fan operation and rack ventilation. Redundancy failure: verify two power supplies are both functional.

Product Brief7C107 is Extreme Networks Matrix N7 7-slot modular switch chassis supporting DFE line cards, redundant power and hot-swappable fan tray, classic spare part for legacy enterprise core aggregation network overhaul.
