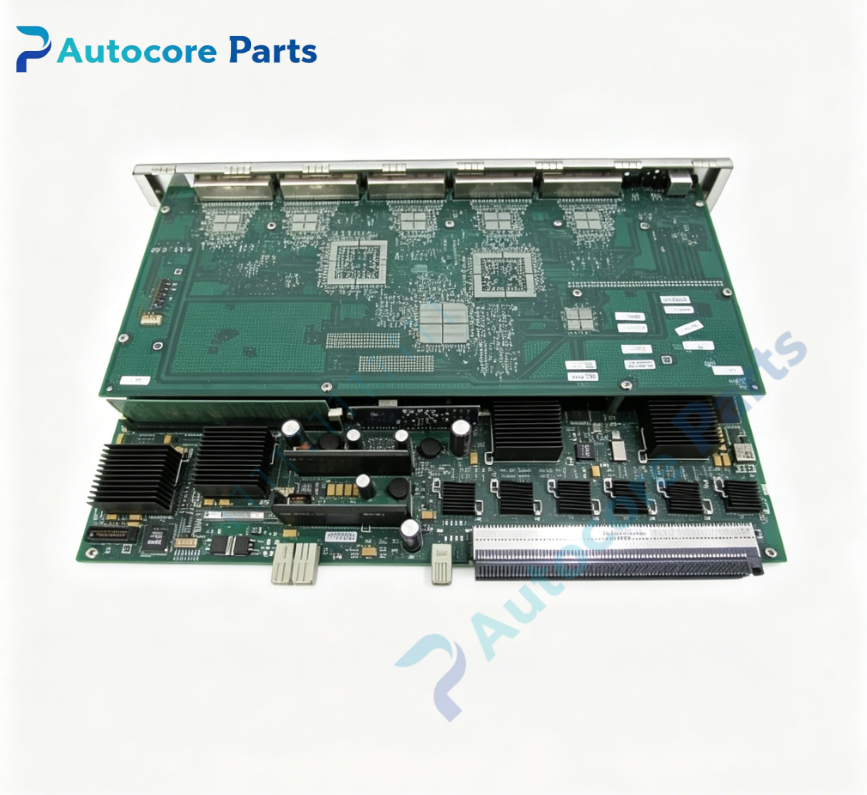

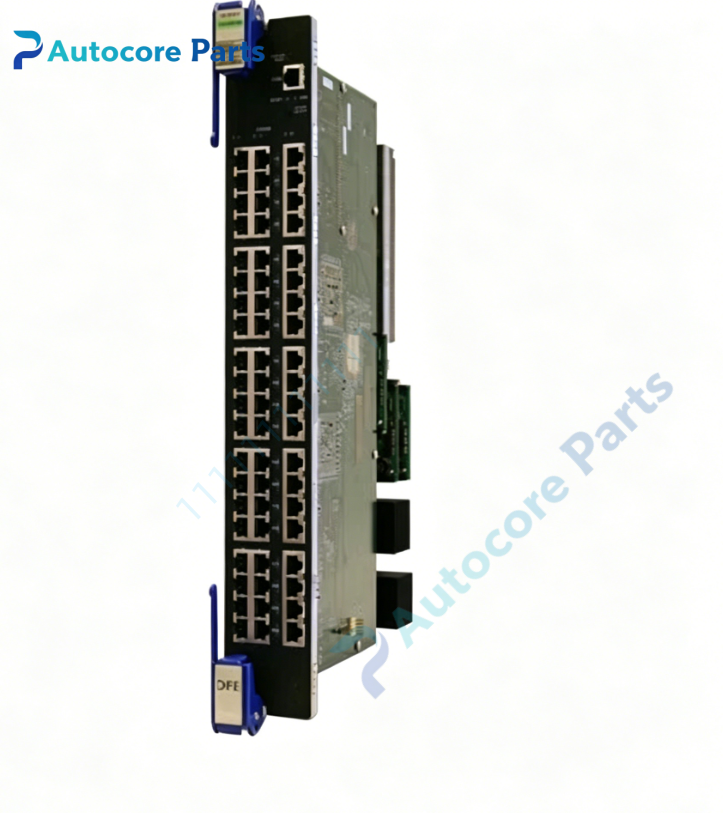

Extreme Networks 7G4202-60 DFE Gold Gigabit Module

Technical SpecificationsModel:7G4202-60 Brand: Extreme Networks Product Type: Distributed Forwarding Engine (DFE) Gigabit Module Mounting: Installed into Matrix N-series chassis slot Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: Supplied by chassis backplane Weight: 1.1 kg

System compatibility7G4202-60 is legacy Matrix DFE Gold forwarding module for Extreme Networks Matrix N-series chassis switches, compatible with Matrix N3, N5, N7 chassis. It connects to chassis backplane and fabric module, used for layer 2/3 data forwarding and port expansion. Widely used for old campus and data center network maintenance and spare replacement.

Function7G4202-60 is distributed forwarding engine card for Matrix chassis switch. It processes Ethernet packet forwarding, VLAN tagging, traffic statistics and ACL filtering. It exchanges fabric data with main switching fabric, collects port status and sends telemetry to switch management CPU. It monitors module temperature, port signal and power status, triggers alarm once port failure, overheating or communication loss occurs. It is used to replace defective DFE modules when chassis switch ports or forwarding function fails.

InstallationCut off chassis power before installation. Insert 7G4202-60 into the empty chassis slot, secure the screw. Connect fiber or copper cables to module ports. Verify pin contact continuity, power on chassis and load ExtremeXOS firmware, perform port test before putting into production.

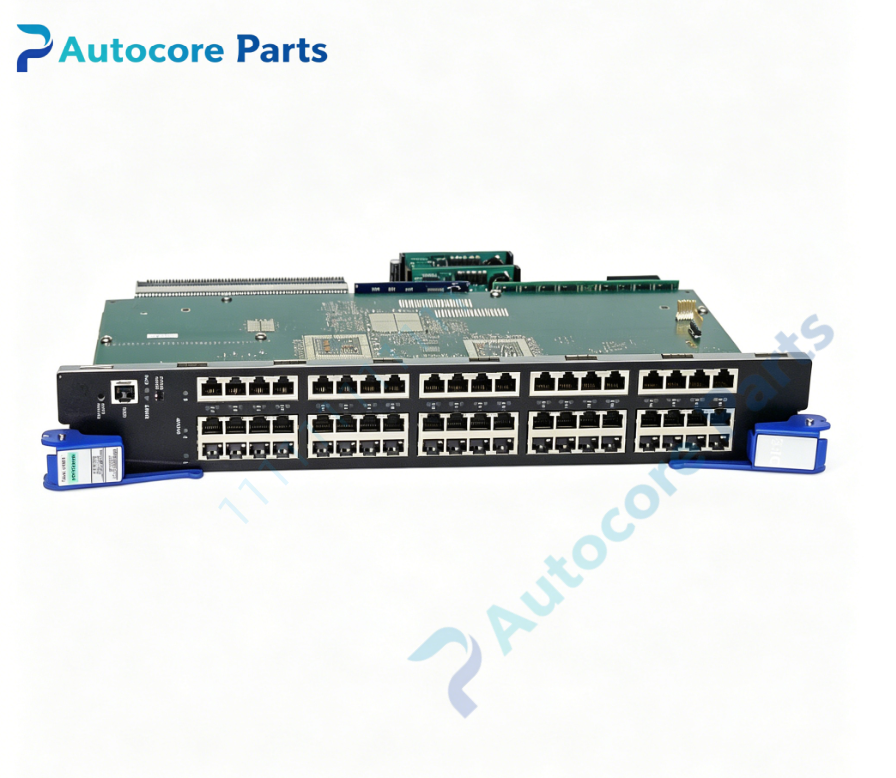

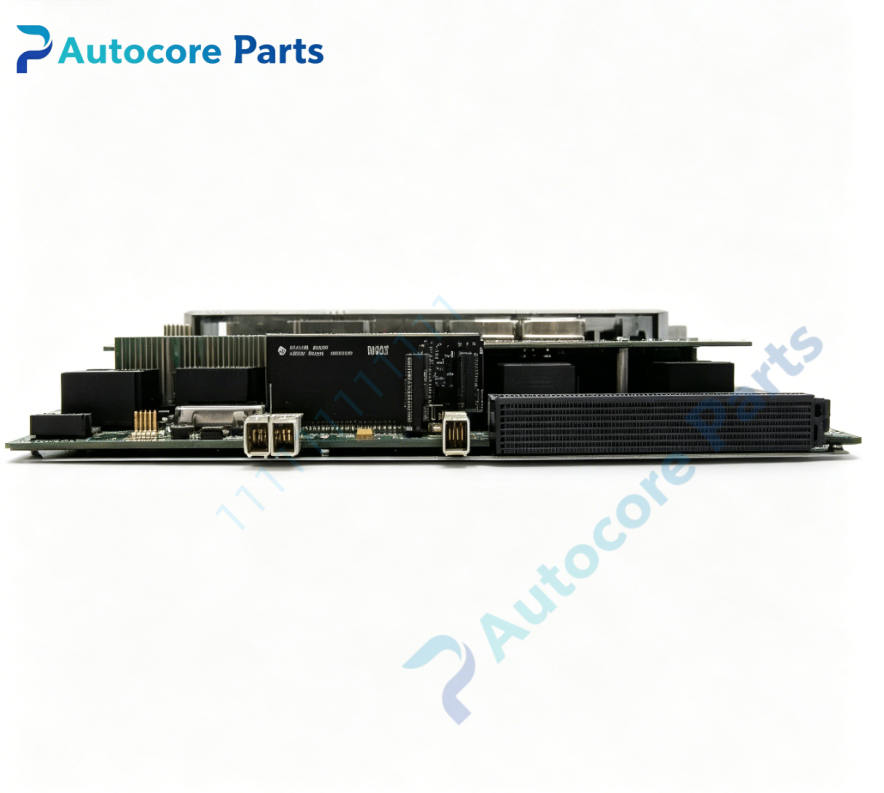

InterfaceGigabit port connectors, chassis backplane edge connector, status LED indicators for Extreme Networks 7G4202-60 DFE Gold module.

FeatureOriginal Extreme Networks Matrix DFE Gold module, hot-swappable design, hardware-based packet forwarding, integrated signal monitoring and self-diagnostic function. This legacy spare supports field repair of old Extreme Matrix N-series chassis switch systems.

DiagnosticNo LED indicator: check chassis backplane power supply and slot connector pins. Port cannot forward traffic: verify firmware version, module registration status and port configuration. Module frequent reset: check temperature, chassis ground and backplane pin oxidation.

Product Brief7G4202-60 is Extreme Networks Matrix DFE Gold distributed forwarding engine module for Matrix N-series chassis switch. It provides hardware packet forwarding and port expansion for legacy chassis network, classic spare part for legacy data center network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
