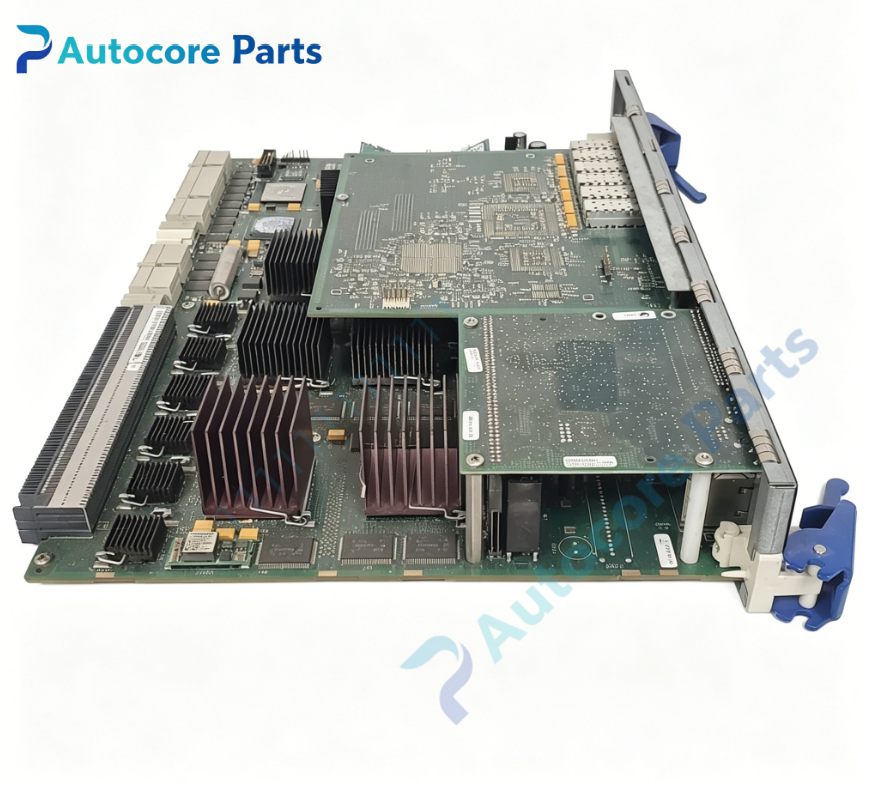

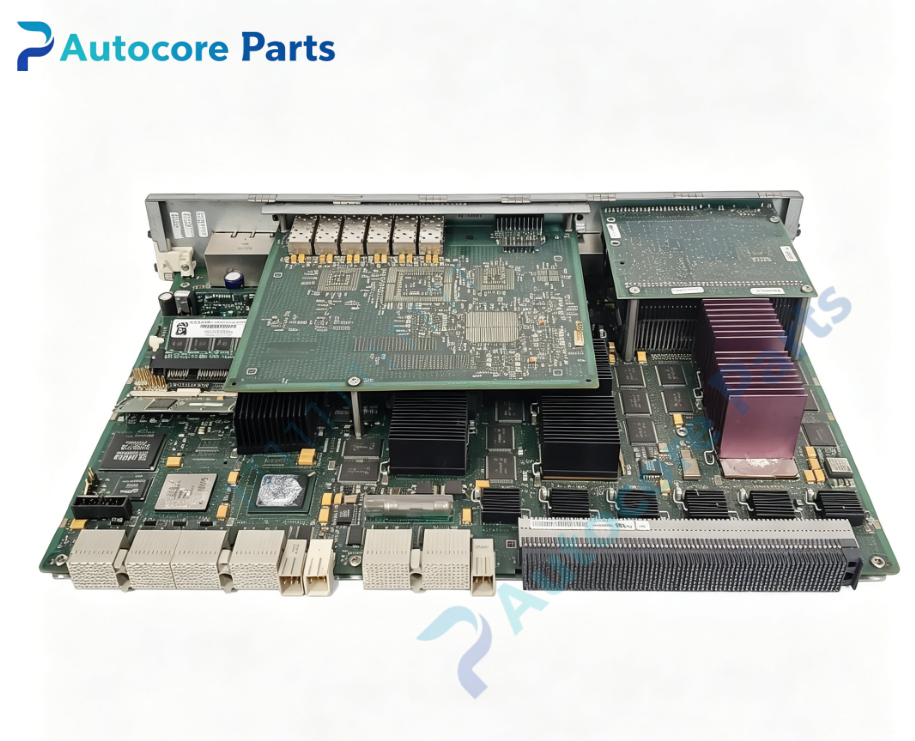

Extreme Networks 7H4382-49 Fast Ethernet DFE I/O Line Card

Technical SpecificationsModel:7H4382-49 Brand:Extreme Networks Product Type:Hot-swappable Platinum DFE distributed forwarding engine line card Compatible chassis:Matrix N7, N5, N3, N1, E7 modular chassis switch Ports:48 × 10/100BASE-TX RJ45 copper ports Speed:10/100Mbps auto-negotiation per port OS:EOS (Enterasys Operating System) Forwarding:Layer2/Layer3/Layer4 policy switching Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.4 kg

System compatibility7H4382-49 belongs to Extreme Networks Matrix N-series Platinum DFE family, formerly Enterasys. It can be installed in Matrix N7, N5, N3, N1 and E7 chassis slots. It supports backplane bridging between FTM1 and FTM2 on E7 chassis. Widely used for legacy enterprise high-density copper access spare replacement.

Function7H4382-49 is a high-density distributed forwarding engine line card for Matrix chassis switches. It provides 48-port 10/100BASE-TX copper access interfaces with independent wire-speed packet forwarding. It supports static routing, VLAN segmentation, STP/RSTP/MSTP, LACP, ACL, QoS and IGMP snooping. It monitors port link status, module temperature and power consumption, and uploads real-time health data to the chassis supervisor engine. Used for expanding large-scale fast ethernet copper access ports inside core chassis systems.

InstallationHot-swappable replacement. Insert 7H4382-49 into empty slot of Matrix N7/N5/E7 chassis. Tighten captive screws. Connect Cat5e cables to RJ45 ports. Verify module recognition and port status on EOS before putting into production.

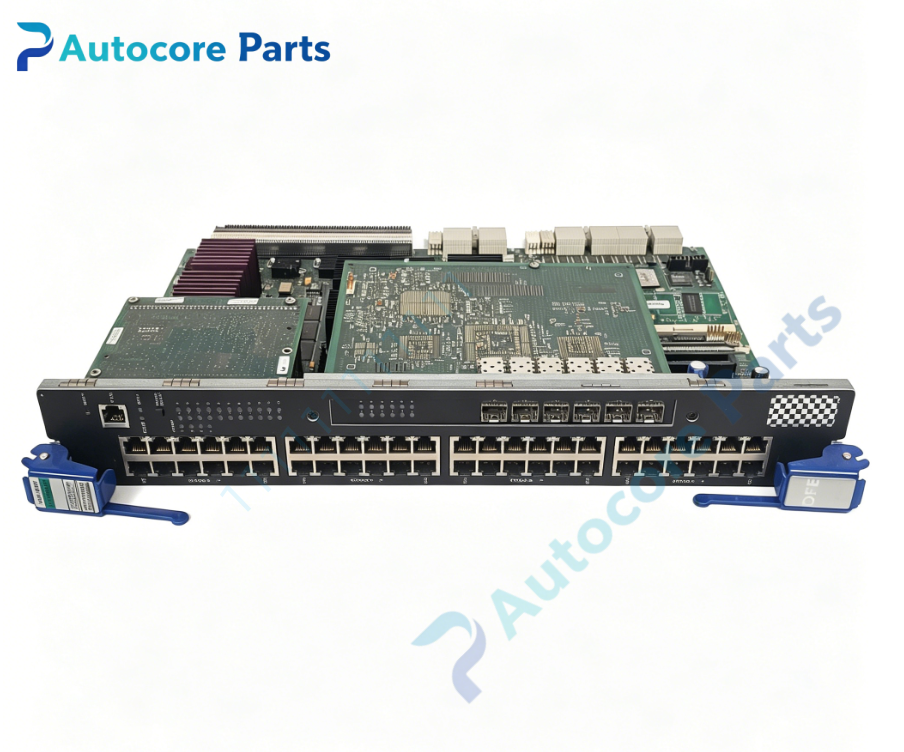

Interface48×10/100BASE-TX RJ45 copper ports,module status LEDs,ejector latches for Extreme Networks 7H4382-49.

FeatureOriginal Extreme Networks Matrix N-series hot-swappable Platinum DFE 48-port fast ethernet line card, high port density, wire-speed Layer4 policy control, real-time hardware health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise large-scale copper access network deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Copper port no link: verify Cat5e cable and port admin status. Over-temperature alarm: inspect chassis fan tray operation and clear dust.

Product Brief7H4382-49 is Extreme Networks hot-swappable Platinum DFE line card with 48×10/100BASE-TX RJ45 copper ports for Matrix N7/N5/N3/N1/E7 chassis, classic spare part for legacy enterprise high-density copper access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
