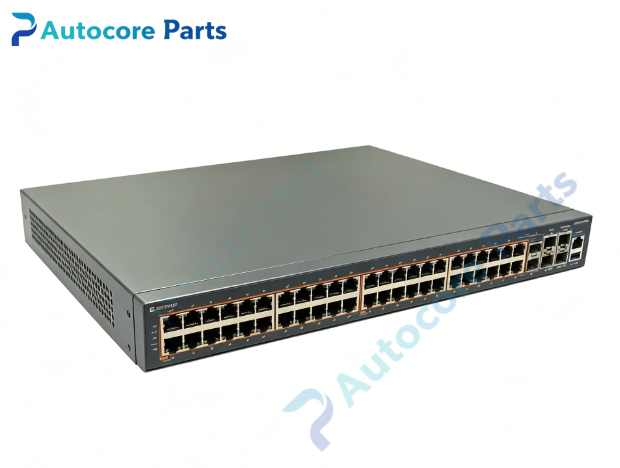

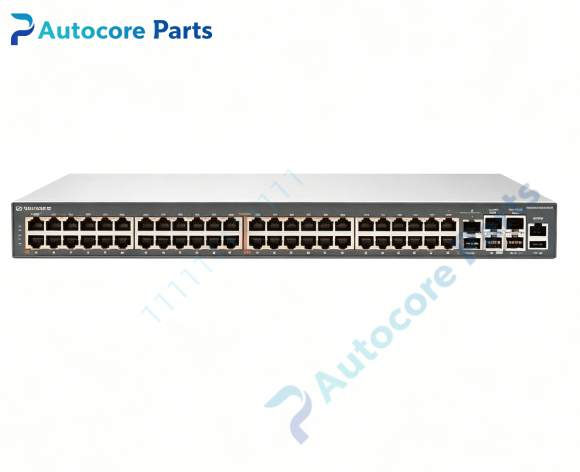

Extreme Networks AL3600A16-E6 Ethernet Routing Switch

Technical SpecificationsModel：AL3600A16-E6 Brand：Extreme Networks Product Type：1RU Rack Mount Layer3 Stackable Enterprise Switch

Port Configuration: 48 × 10/100/1000BASE-T RJ45 PoE+ ports (802.3at, max 30W per port) 2 × 10/100/1000BASE-T / 1000BASE-X combo SFP ports 2 × 1/10G SFP+ uplink ports 2 × 10G SFP+ dual-purpose stacking / uplink ports 1 × RJ45 serial console port

Switch Performance: Switching bandwidth 176Gbps, forwarding rate 131Mpps Software: ERS 3600 firmware release 6, base routing license included, support RIP, static routing, Fabric Connect Stacking: Up to 8 units stacking within ERS3600 series, auto unit replacement for config and firmware Power supply: Integrated high-power PoE AC PSU, input 100-240Vac Operating temperature：0℃ ~ +45℃ Dimension: 44mm(H) ×440mm(W) ×310mm(D) Weight: 5.3kg

System compatibility

AL3600A16-E6 is Extreme ERS3600 series stackable PoE routing switch, model ERS3650GTS-PWR+. Combo SFP slots support 1G SX/LX/BiDi transceivers; SFP+ ports compatible with Extreme 10G SR/LR optical modules. Managed via local CLI or Element Manager. Widely used for legacy enterprise campus, high density Wi-Fi AP and IP camera PoE access. Stackable with other ERS3600 switches to expand access network capacity.

Function

AL3600A16-E6 is Layer3 gigabit PoE routing switch. 48 PoE+ RJ45 ports supply power to wireless AP, IP camera and IP phone. 2 combo SFP ports for long-distance gigabit fiber access. Four SFP+ ports deliver 10G high-speed uplink or stacking. Supports static routing, RIP, VLAN, QoS, storm control, port security, Fabric Connect and network monitoring. Virtual stacking simplifies large campus network management.

Installation

Mount switch into standard 19-inch 1RU rack. Connect protective earthing and AC power cable. Connect RJ45 cables to PoE powered devices. Insert SFP/SFP+ transceiver and fiber cable. Configure through serial console or Element Manager. Verify port negotiation, PoE power budget and stacking status after commissioning.

InterfaceGigabit PoE+ RJ45 port, combo SFP port, 10G SFP+ transceiver slot, RJ45 serial console for Extreme Networks AL3600A16-E6.

FeatureOriginal Extreme AL3600A16-E6 1RU stackable Layer3 PoE+ gigabit switch,48 PoE+ ports,2 combo SFP plus 4×10G SFP+ uplink/stacking ports,support routing and Fabric Connect,built-in high power PoE power supply. This spare is designed for legacy enterprise campus high-density PoE access network replacement.

DiagnosticDevice undetected: Check AC power input, power cord and ground connection. PoE port no power: Verify PD compatibility, check port PoE configuration and total PoE power budget. Combo SFP port no link: Check SFP transceiver model, fiber quality and fiber polarity. SFP+ port link down: Confirm SFP+ module compatibility, optical power and port speed setting. Stacking failure: Inspect stacking cable and stacking port assignment within ERS3600 series. Over-temperature alarm: Check fan operation and rack ventilation.

Product BriefAL3600A16-E6 (ERS3650GTS-PWR+) is Extreme Networks stackable Layer3 PoE+ gigabit switch with 48 PoE+ ports, combo SFP and four 10G SFP+ uplink/stacking ports,classic spare part for legacy enterprise campus PoE access network replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
