Extreme Networks BDXB-100G4X-XL 100G CFP2 I/O Line Card

Technical SpecificationsModel:BDXB-100G4X-XL Brand: Extreme Networks Product Type: Hot-swappable XL I/O line card / blade Compatible chassis:BlackDiamond X8 modular core switch Ports:4 × CFP2 slots for 100G transceivers Port mode:100G native, or breakout into 10×10G per CFP2 port TCAM:Up to 1 million TCAM entries Minimum OS:ExtremeXOS 15.5.1 Max modules per chassis:Up to 8 blades Fabric requirement:Minimum 3× BDXA-FM10T / BDXA-FM20T fabric modules Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.4 kg

System compatibilityBDXB-100G4X-XL is Extreme Networks high-performance XL series 100G line card for BlackDiamond X8 chassis. It works with BDX-MM1 management modules, fabric modules, power supplies and fan trays. Compatible with CFP2 100G SR4/LR4 transceivers and 100G AOC cables; supports breakout for 10G interfaces. Widely used for large data center core uplink and spine-leaf fabric spare replacement.

FunctionBDXB-100G4X-XL provides wire-speed 100G CFP2 uplink interfaces for BlackDiamond X8 chassis, flexible for native 100G or breakout 10G ports. It supports L2 switching, L3 routing, ACL, QoS, FCoE and DCB. It reports port status, transceiver DDM data, module temperature and power consumption to chassis management module. Used to replace faulty high-speed 100G I/O blades for BlackDiamond X8 core chassis overhaul.

InstallationHot-swap replacement without chassis power off. Insert BDXB-100G4X-XL into empty I/O slot of BlackDiamond X8 chassis. Tighten captive screws. Insert CFP2 transceivers or AOC cables. Verify module online status and port configuration on ExtremeXOS, confirm transceiver DDM readings before putting into production.

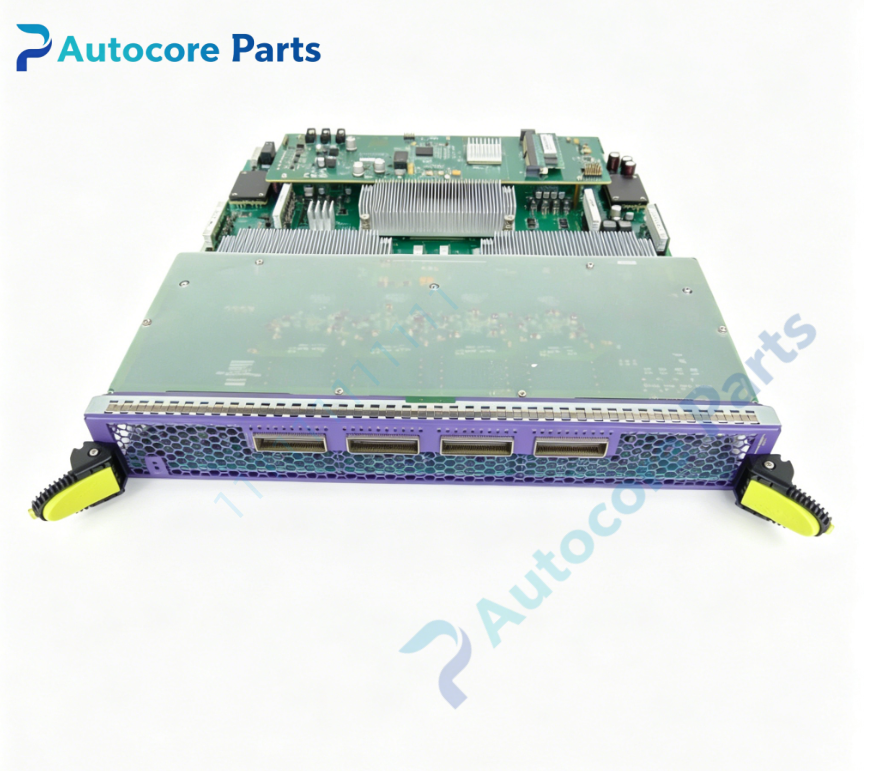

Interface4×CFP2 front panel slots, module status LEDs, ejector handles for Extreme Networks BDXB-100G4X-XL.

FeatureOriginal Extreme Networks BlackDiamond X8 XL series 4-port 100G CFP2 line card, hot-swappable, supports 100G / breakout 10G mode, large TCAM table, DCB/FCoE support, ExtremeXOS OS, built-in self-diagnostic function. This spare supports large data center high-speed core uplink and fabric deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Port link down: verify CFP2 transceiver, fiber/AOC cable and port admin status. Breakout port configuration failure: confirm ExtremeXOS version and license. Over-temperature alarm: check chassis fan tray operation and airflow.

Product BriefBDXB-100G4X-XL is Extreme Networks hot-swappable XL 4-port 100G CFP2 line card for BlackDiamond X8 core chassis, supports native 100G or breakout to 10×10G per port, classic spare part for large data center high-speed core uplink overhaul.
