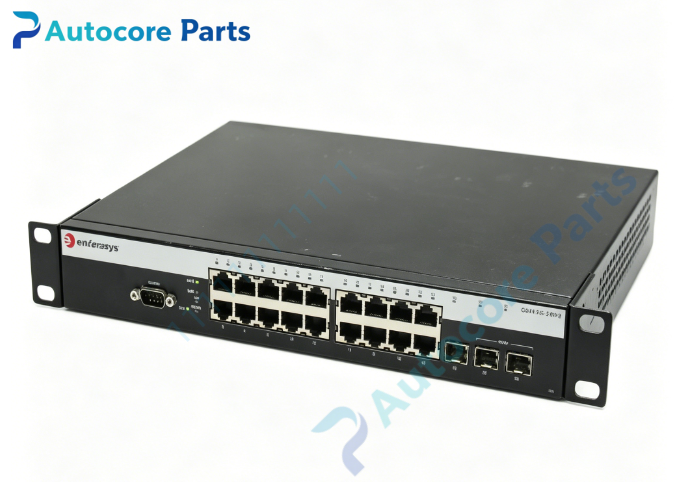

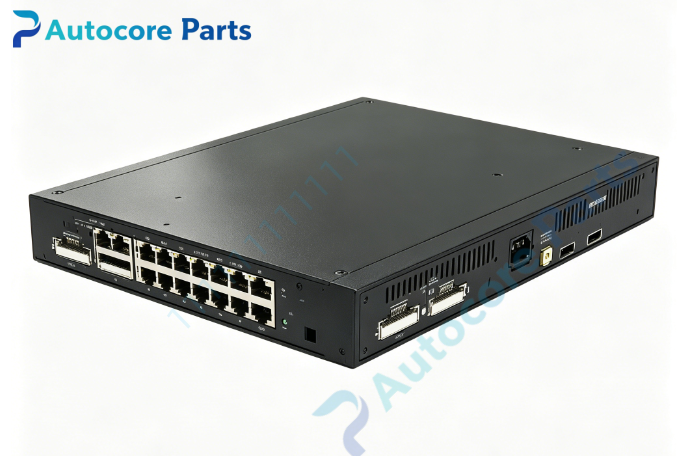

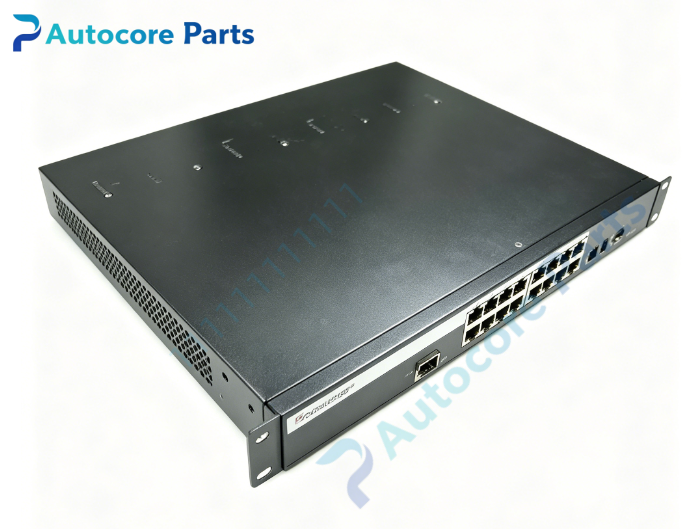

Extreme Networks C5K125-24P2-G Enterasys C5 Stackable PoE+ Gigabit Switch

Technical SpecificationsModel：C5K125-24P2-G Brand：Extreme Networks (Legacy Enterasys) Product Type: 1U rack mount managed stackable enterprise Layer3 PoE+ access switch

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 PoE+ ports (802.3af / 802.3at)

• 2 × Combo SFP ports (shared copper / fiber 1G interface)

• 2 × SFP+ uplink slots, support 1G or 10G transceivers

• RJ45 console port, reset button

• Per-port LED indicators and system health LED

Switch Fabric: 88 Gbps Forwarding Rate: 65 Mpps Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLANs Routing: Static routing, RIP, OSPF, multicast routing PoE Capacity: Built-in PoE+ power budget for IP phones, wireless AP and surveillance cameras QoS: L2-L4 hardware classification, 8 priority queues per port Power Supply: Integrated AC power, support external RPS redundant power Software OS: Enterasys C5 firmware Operating temperature：0℃ ~ +50℃ Weight: Approx 5.2 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

C5K125-24P2-G belongs to Enterasys C5 stackable family. Can stack up to 8 C5 series switches into one logical stack. Compatible with 1G SFP and 10G SFP+ transceivers. Designed for campus wiring closet PoE access, connect wireless APs, IP cameras and VOIP phones.

Function

C5K125-24P2-G is PoE+ capable stackable Layer3 gigabit access switch from Enterasys C5 series. 24 PoE+ copper ports supply power and data to wireless access points, IP phones and security cameras. Two combo SFP ports provide flexible 1G fiber uplink, two dedicated SFP+ slots support high-speed 10G uplink to aggregation layer. Stacking technology unifies multiple switches for simplified management. Supports 802.1X port authentication, ACL, QoS and IGMP multicast for multimedia traffic. External RPS interface supports backup power for high availability deployment. Widely used for office, campus, hospital and hotel PoE wired access network.

InstallationMount switch into standard 19-inch rack. Connect AC power cord. Insert SFP / SFP+ transceivers for uplink as required. Deploy stacking cable if multi-unit stacking needed. Access console port for initial configuration, set VLAN, PoE profile, routing and security policy. Verify port status and stack synchronization after power-up.

Interface24×PoE GE RJ45 ports,2 combo SFP slots,2×SFP+ uplink slots,RJ45 console port,reset button,RPS connector and LED indicators for Extreme Networks C5K125-24P2-G.

FeatureOriginal Extreme Networks C5K125-24P2-G Enterasys C5 gigabit PoE+ switch,24×1G PoE+ ports +2 combo SFP +2×10G SFP+,stackable architecture,hardware L2/L3 forwarding,802.3af/at PoE+,QoS and 802.1X security. This spare switch is used for enterprise PoE wiring closet network maintenance and replacement.

DiagnosticSwitch boot failure: Check AC power input, inspect power circuit and RPS connection. PoE port no power: Verify PoE power budget, check cable and terminal compatibility. SFP/SFP+ port link down: Confirm transceiver compatibility, clean fiber connector and check optical power. Stack split: Check stacking cable integrity, match firmware version of all stack members. Broadcast storm: Tune storm-control parameters and QoS queue scheduling.

Product BriefC5K125-24P2-G is Extreme Enterasys C5 series 1U 24-port PoE+ stackable Layer3 switch with 10G uplink slots,classic spare for enterprise PoE access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
