Extreme Networks C5K125-24P2 Gigabit PoE+ Stackable Managed Switch

Technical SpecificationsModel:C5K125-24P2 Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 PoE+ access switch Ports:24 × 10/100/1000BASE-T PoE+ RJ45 ports,2 × SFP+ 1/10G uplink slots,2 × dedicated 12G stacking ports PoE standard:IEEE 802.3at PoE+, max 30W per port Switching capacity:88 Gbps Forwarding rate:65.5 Mpps MAC address table:32000 entries VLAN:4094 VLAN IDs Redundancy:Supports external EPS-C2 redundant power supply Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:5.4 kg

System compatibilityC5K125-24P2 belongs to Extreme Networks SecureStack C5 series, formerly Enterasys. Up to 8 C5 switches can be stacked into one logical device. Compatible with Extreme validated 1G SFP,10G SFP+ transceivers, fiber patch cords and DAC cables. Designed for enterprise campus high-density PoE deployments for wireless APs and IP cameras. Widely used for spare replacement.

FunctionC5K125-24P2 is a high-performance Layer3 managed PoE+ access switch. It supports static/dynamic routing,VLAN segmentation,STP/RSTP/MSTP,LACP link aggregation,ACL,QoS,IPv4/IPv6 multicast and 802.1X authentication. It automatically detects powered devices and manages PoE power budget. It monitors port link status,transceiver DDM optical parameters,chassis temperature,fan speed and power supply health. Used for building resilient stacked PoE+ access networks.

InstallationMount the switch on 19-inch 1U rack. Connect AC power cord; external EPS-C2 redundant power supply is optional. Insert SFP/SFP+ transceivers for uplink. Connect Cat5e/Cat6 cables to PoE+ RJ45 ports. Connect DB9 serial console port for EOS configuration. Verify boot sequence,port link and PoE status before putting into production.

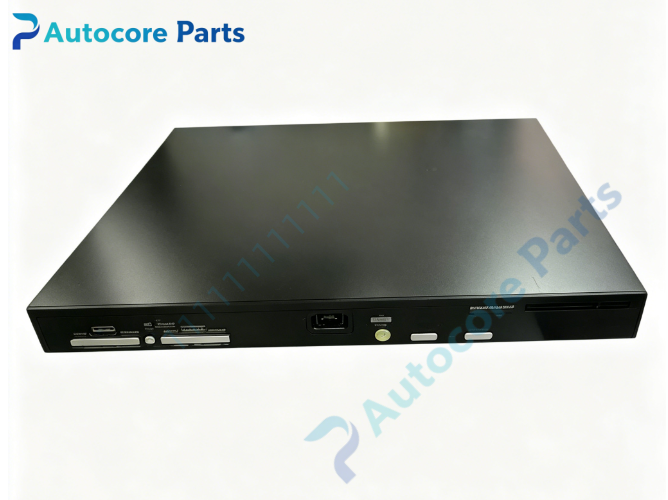

Interface24×PoE+ RJ45 gigabit ports,2×SFP+ 10G uplink slots,2×dedicated stacking ports,DB9 serial console port,status LEDs,PoE indicator,AC power inlet,RPS connector,rack mounting ears for Extreme Networks C5K125-24P2.

FeatureOriginal Extreme Networks SecureStack C5 series 1U rackmount 24-port PoE+ gigabit stackable Layer3 switch,10G high-speed uplink, dedicated stacking interface,transceiver DDM monitoring,external redundant power support,EOS operating system,built-in self-diagnostic function. This spare supports enterprise campus wireless AP and IP camera high-density PoE access network deployment.

DiagnosticSwitch fails to boot: check AC power cord and wall power input. PoE port no power: verify PD detection, total PoE budget and port admin status. Port link down: check Cat5e/Cat6 cable, SFP/SFP+ transceiver and port admin status. Transceiver no DDM data: confirm Extreme validated pluggable transceiver. Stacking failure: verify consistent firmware version among stacked C5 switches. Over-temperature alarm: inspect chassis fan operation and clear dust.

Product BriefC5K125-24P2 is Extreme Networks SecureStack C5 1U rackmount 24-port gigabit PoE+ stackable Layer3 managed switch with 2×10G SFP+ uplink and dedicated stacking ports,classic spare part for enterprise wiring closet high-density PoE access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
