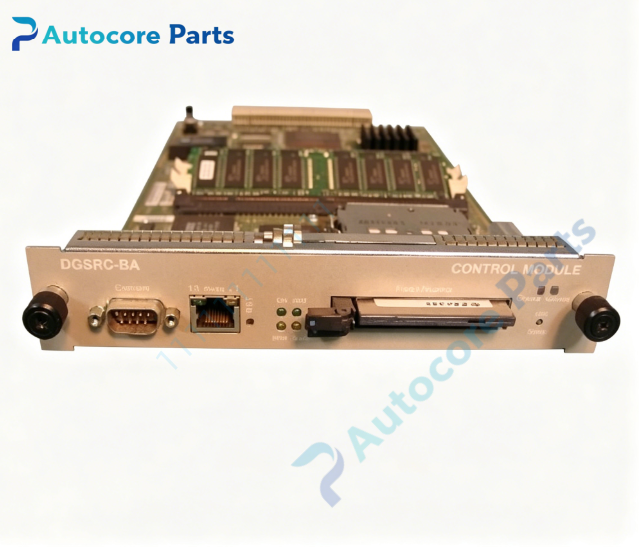

Extreme Networks DGSRC-BA SSR-8 Supervisor Control Module

Technical SpecificationsModel:DGSRC-BA Brand:Extreme Networks Product Type:Hot-swappable supervisor / control engine module Compatible chassis:SSR-8 modular chassis router Function:System control,switch fabric management,routing calculation,system health monitoring Redundancy:Supports dual redundant supervisor deployment Management:Serial console port,out-of-band Ethernet management port,SNMP,CLI OS:EOS (Enterasys Operating System) Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.62 kg

System compatibilityDGSRC-BA belongs to Extreme Networks SSR series chassis router family, formerly Enterasys/Cabletron. It is the main supervisor control card dedicated for SSR-8 chassis, can be installed in the supervisor slot of SSR-8 chassis and supports 1+1 redundant hot standby deployment. Widely used for legacy enterprise core and backbone network spare replacement.

FunctionDGSRC-BA acts as the main control brain of SSR-8 chassis router. It is responsible for overall system management, switching fabric scheduling, routing table calculation, configuration distribution and line card health management. It supports static and dynamic routing protocols, ACL, QoS, multicast control and system-level fault alarm. It continuously monitors all line cards, power supplies and fan trays of the chassis, and synchronizes configuration and runtime status with the standby supervisor in redundant mode. Used for core backbone routing control of large enterprise campus networks.

InstallationHot-swappable replacement. Insert DGSRC-BA into dedicated supervisor slot of SSR-8 chassis. Tighten captive screws. Connect serial console and out-of-band management Ethernet cable. Verify module boot and chassis recognition on EOS before putting into production.

InterfaceDB9 serial console port,10/100BASE-T out-of-band management RJ45 port,reset button,status LEDs,ejector latches for Extreme Networks DGSRC-BA.

FeatureOriginal Extreme Networks SSR series hot-swappable SSR-8 supervisor control module, supports redundant dual supervisor hot standby, centralized routing and fabric control, real-time chassis hardware health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise large-scale core backbone routing network deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Boot failure: check firmware version and compact flash status. Redundancy sync failure: verify matching firmware between primary and standby supervisors. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product BriefDGSRC-BA is Extreme Networks hot-swappable supervisor control engine for SSR-8 chassis router, supports dual redundant deployment, classic spare part for legacy enterprise core backbone routing overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
