Extreme Networks EC4800A88-E6 Gigabit PoE+ Managed Switch

Technical SpecificationsModel：EC4800A88-E6 Brand：Extreme Networks (Avaya legacy) Product Type：1U rackmount Layer2/Layer3 managed PoE+ switch

Ports:

• 48 ×10/100/1000BASE-T RJ45 copper ports, IEEE802.3at PoE+, max 30W per port

• 2 ×combo 100/1000BASE-X SFP shared slots

• 2 ×1G/10G auto-sensing SFP+ uplink ports

• 1 ×RJ45 serial console port

• 1 ×USB management port

Switching capacity：176Gbps Forwarding rate：130Mpps MAC address table：64000 entries Jumbo frame：9216 bytes OS：VOSS (Virtual Services Operating System) Redundancy：Hot-swappable AC power supply, support dual PSU for power redundancy Total PoE power budget：740W

Power & fan：740W hot-swappable AC PoE PSU, variable speed smart fans, front-to-back airflow Operating temperature：0℃ ~ +40℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：7.2kg

System compatibility

EC4800A88-E6 belongs to VSP4000 (VSP4850GTS-PWR+) enterprise aggregation platform, inherited from Avaya networking product line. Compatible with Extreme/Avaya validated 1G SFP and 10G SFP+ optical transceivers. Managed by local CLI/web GUI. Widely deployed for enterprise campus aggregation layer, smart building PoE access convergence network spare replacement.

Function

EC4800A88-E6 is high-performance Layer3 PoE+ aggregation switch. 48 gigabit PoE+ RJ45 ports supply power and data for wireless AP, IP cameras and IP terminals. Dual combo SFP ports support gigabit fiber downlink or uplink; two SFP+ ports realize 10G high-speed uplink to core network. It supports static & dynamic routing, VLAN, STP/RSTP/MSTP, Fabric Connect, LACP link aggregation, ACL, QoS and multicast protocols. It monitors port link state, PoE power consumption, power supply status, system temperature and fan health, and generates hardware fault alarms. Used for enterprise campus PoE aggregation networks.

Installation

Mount the switch on standard 19-inch 1U rack. Install hot-swappable AC power supply and connect power cord. Insert SFP/SFP+ transceivers and fiber patch cords for uplink. Connect console port for initial configuration. Verify boot,port link,PoE output and routing function before commissioning.

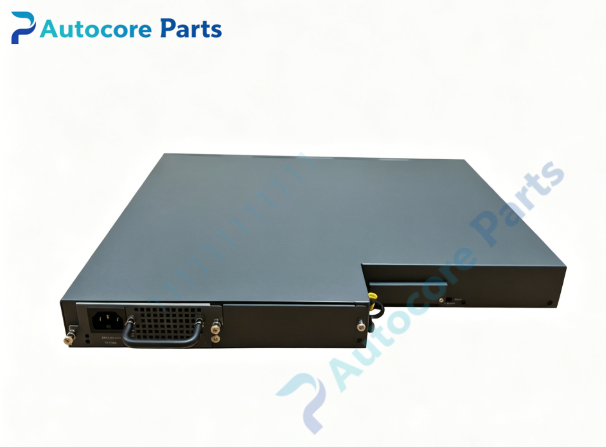

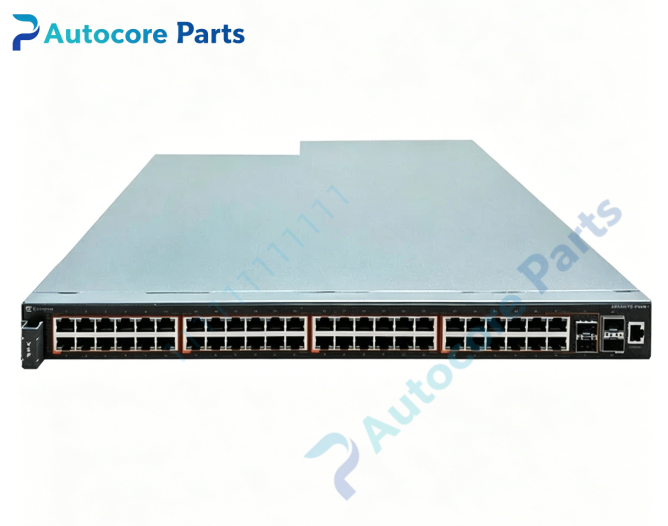

Interface48×1G PoE+ RJ45 ports,2×combo GE SFP slots,2×SFP+ 1G/10G uplink ports,RJ45 serial console,USB management port,status LEDs,reset button,hot-swappable PSU slot,ground terminal,rack mounting ears for Extreme Networks EC4800A88-E6.

FeatureOriginal VSP4000 1U rackmount Layer3 PoE+ aggregation switch,48×1G 802.3at PoE+ ports,combo SFP and dual 10G SFP+ uplink slots,740W total PoE budget,support Fabric Connect,hot-swappable power supply,smart fan cooling,built-in self-diagnostic function. This spare fits enterprise campus PoE aggregation network upgrade and maintenance.

DiagnosticSwitch fails to boot: Check PSU installation and AC power input. PoE port no power: Verify PoE total budget,PD classification and port admin status. Copper port link down: Inspect RJ45 cable quality and auto-negotiation settings. SFP/SFP+ port no link: Check transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme/Avaya compatible optical module and correct insertion. Over-temperature alarm: Check fan running status and cabinet ventilation,clean dust buildup. Fabric Connect negotiation failure: Verify VOSS firmware and peer device configuration.

Product BriefEC4800A88-E6 is Extreme Networks VSP4000 VSP4850GTS-PWR+ series 1U rackmount Layer3 gigabit PoE+ managed switch with 48×10/100/1000BASE-T PoE+ ports,2 combo SFP and 2×1/10G SFP+ uplink ports,classic spare part for enterprise PoE aggregation network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
