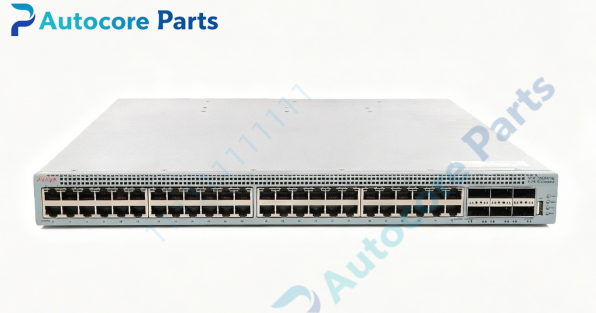

Extreme Networks EC720004X-E6 VSP 7254XTQ High Density Aggregation Switch

Technical Specifications

Model：EC720004X-E6 (VSP7254XTQ) Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 high-density data center aggregation switch (VSP7000 series)

Front Ports:

• 48 × 10G SFP+ ports, support 1G/10G optical transceivers and DAC/AOC cables

• 6 × 40G QSFP+ uplink ports, support breakout function

• RJ45 serial console port

• USB Type-A port for firmware upgrade

• LED indicators for port link, activity, power and system fault alarm

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T out-of-band management port

• Dual hot-swappable AC PSU slots

• Hot-swappable fan modules, front-to-back airflow

• Equipment grounding lug

Switching & Layer Features: Switch Fabric: 1.28 Tbps full duplex non-blocking Forwarding Rate: 960 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, ACL, storm control, hardware MACsec QoS: Hardware L2-L4 classification, 8 priority queues OS: VOSS operating system Virtualization: VRF, fabric attach, virtual switch instance support

Power & Mechanical: Power Supply: Dual hot-swappable 100-240V AC power modules Cooling: Hot-swappable fan modules, front-to-back airflow Operating temperature：0℃ ~ +50℃ Dimension: Standard 19-inch 1U rack form factor Weight: Approx 9.5 kg Mounting: 19-inch rack mounting bracket included

System compatibility

EC720004X-E6 belongs to Extreme VSP7000 virtual services platform family. Compatible with Extreme certified SFP+ / QSFP+ transceivers, DAC and AOC fiber cables. Supports Fabric Connect network architecture. Designed for enterprise core, data center leaf layer and high-performance server access. Widely used for cloud data center network upgrade and spare replacement.

Function

EC720004X-E6 is high-density non-blocking aggregation switch manufactured by Extreme Networks. It provides 48×10G SFP+ downlink ports for server connection and 6×40G QSFP high-speed uplink ports to spine layer. Native hardware MACsec supports link encryption for secure transmission. VOSS operating system delivers advanced layer3 routing, VRF and fabric virtualization functions. Dual redundant hot swap power supplies and hot swappable fans eliminate single point of failure for 24/7 continuous operation. Widely deployed for enterprise core network, cloud data center and high-performance computing spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Install SFP+ / QSFP transceivers or AOC/DAC cables. Connect AC power cords. Access console port for initial VOSS configuration, set VLAN, routing, ACL and MACsec policy. Verify port link status after power on.

Interface

48×10G SFP+ ports,6×40G QSFP ports,USB Type-A,RJ45 console port,OOB management port,dual AC PSU slots,hot-swap fan modules,system LED indicators for Extreme Networks EC720004X-E6.

Feature

Original Extreme Networks EC720004X-E6 VSP7254XTQ aggregation switch,1U,48×10G SFP+ +6×40G QSFP,hardware MACsec,dual AC,front-to-back airflow,VOSS OS,hot swappable power and fan. This spare unit is used for enterprise core and leaf-spine data center network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC power input and PSU installation status. Optical port link down: Verify SFP+/QSFP transceiver compatibility, optical power and fiber connector cleanliness. MACsec negotiation failure: Confirm matching MACsec key configuration on both ends. Temperature alarm: Inspect fan modules running status and rack air circulation. Port error counter rising: Inspect fiber cable quality and connector end face.

Product BriefEC720004X-E6 is Extreme Networks VSP7000 series 1U non-blocking aggregation switch, equipped with 48×10G SFP+ and 6×40G QSFP ports, redundant AC power and VOSS OS,classic spare for enterprise core and leaf-spine data center network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
