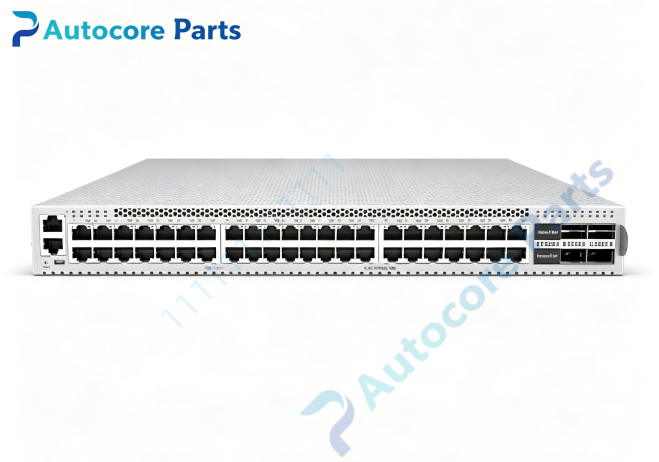

Extreme Networks EN-SLX-9030-48 SLX 9030 High Performance Leaf Switch

Technical Specifications

Model：EN-SLX-9030-48 Brand：Extreme Networks Product Type: 1U rack mount non-blocking leaf switch (SLX9030 series)

Front Ports:

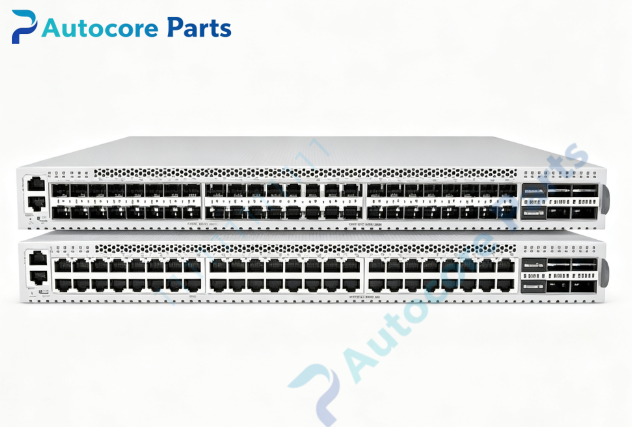

• 48 × 1/10G ports, two variants available: SFP+ (9030-48S) or 10GBASE-T RJ45 (9030-48T)

• 4 × 40G/100G QSFP28 uplink slots, support breakout function

• 1 × RJ45 serial console port

• 1 × Micro-USB port for firmware upload

• 1 × 10/100/1000BASE-T OOB management port

• LED indicators for port link, activity, power and system fault alarm

Rear Panel Interfaces:

• Dual hot-swappable 770W AC PSU slots, redundant power optional

• 6 hot-swappable fan modules, front-to-back or back-to-front airflow options

• BMC lights-out management

• Equipment grounding terminal

Switching & Layer Features: Switch Fabric: 1.76 Tbps full duplex non-blocking Forwarding Rate: Wire-speed forwarding MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing, BGP, EVPN, VXLAN Security: 802.1X, ACL, storm control, measured boot QoS: Hardware L2-L4 classification, 8 priority queues OS: SLX-OS operating system Virtualization: VXLAN, EVPN IP fabric, VRF

Power & Mechanical: Power Supply: Dual hot-swappable 770W AC power modules Cooling: 6 hot-swappable fan modules Operating temperature：0℃ ~ +45℃ Dimension: 44.1mm(H) ×441mm(W) ×488mm(D) Weight: Approx 9.8 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

EN-SLX-9030-48 belongs to Extreme SLX9030 leaf switch family. Compatible with Extreme QSFP28, SFP+ optical transceivers, DAC and AOC cables. Supports leaf-spine IP fabric, EVPN/VXLAN architecture, works together with SLX9540, SLX9850 spine switches. Widely used for cloud data center server access and enterprise core network spare replacement.

Function

EN-SLX-9030-48 is high-performance 1U leaf switch manufactured by Extreme Networks. It provides 48×10G downlink ports for servers and endpoints, and 4×100G QSFP28 high-speed uplink ports connecting to spine layer. SLX-OS natively supports EVPN and VXLAN for modern data center IP fabric. BMC enables remote lights-out management for unattended operation. Dual redundant hot-swap power and fans avoid single point of failure, ensuring 24/7 continuous operation. Widely deployed for enterprise, cloud and service provider data center leaf layer spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Insert SFP+/QSFP28 transceivers and patch cables. Connect AC power cords. Access console or BMC OOB port for initial SLX-OS configuration, fabric, VLAN, EVPN/VXLAN and ACL policy setup. Verify port link status and environmental sensor readings after boot-up.

Interface

48×10G ports,4×QSFP28 slots,OOB management port,Micro-USB,RJ45 console port,BMC interface,dual hot-swap PSU slots,hot-swap fan modules,system LED indicators for Extreme Networks EN-SLX-9030-48.

Feature

Original Extreme Networks EN-SLX-9030-48 SLX9030 leaf switch,1U,48×10G +4×100G QSFP28,non-blocking fabric,dual 770W hot-swap AC,6 hot-swap fans,SLX-OS EVPN/VXLAN,BMC remote management. This spare unit is used for data center leaf layer high-density server access network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC power input and PSU installation status. Port link down: For SFP+ version check transceiver and fiber; for 10GBASE-T verify Cat6a cable and termination. QSFP28 port failure: Confirm QSFP28 compatibility, optical power and fiber end face cleanliness. EVPN route sync error: Match SLX-OS firmware version between leaf and spine. Temperature alarm: Inspect fan module status and rack air circulation.

Product BriefEN-SLX-9030-48 is Extreme Networks SLX9030 series 1U non-blocking leaf switch with 48×10G ports and 4×100G QSFP28 uplink ports, supports EVPN/VXLAN IP fabric,classic spare for high density data center leaf fabric.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
