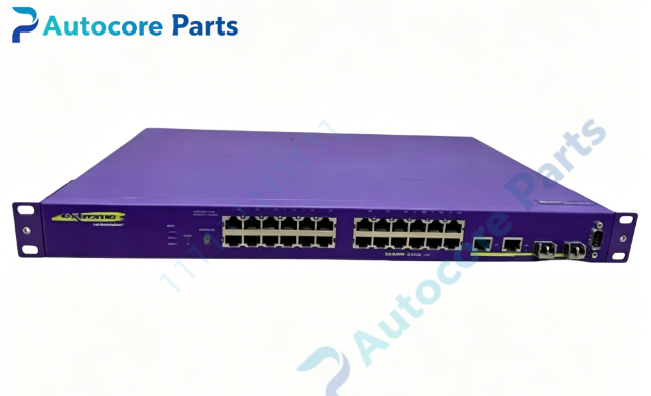

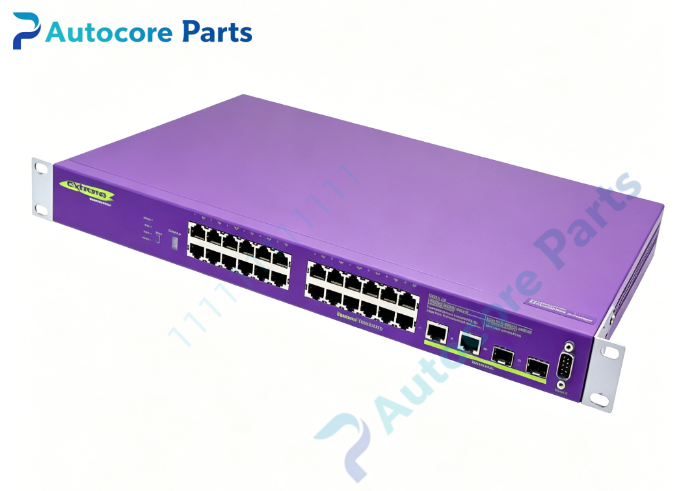

Extreme Networks Summit X250e-24t Edge Access Switch

Technical SpecificationsModel：Summit X250e-24t Brand：Extreme Networks Product Type: 1U rack mount legacy stackable enterprise non-PoE Fast Ethernet access switch

Front Ports:

• 24 × 10/100BASE-TX RJ45 copper ports, auto-negotiation

• 2 × combo gigabit ports (shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system status

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• 2 × dedicated SummitStack stacking ports

• AC power inlet

• External redundant power connector, compatible with EPS-160 external PSU

Switching & Layer Features: Switch Fabric: 8.8 Gbps Forwarding Rate: 6.6 Mpps MAC Address Table: 8K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 static routing Security: 802.1X, MAC filtering, storm control, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X250e switches as single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

Power & Mechanical: Power Supply: Built-in universal AC 100-240V Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Dimension: 441mm × 44mm × 308mm Weight: Approx 3.1 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS (end of sales legacy platform, max EXOS 15.3.x)

System compatibility

Summit X250e-24t belongs to X250e legacy edge switch family. Compatible with 1G SFP transceivers. Can stack with other X250e series switches. External EPS-160 redundant power supply supported. It is end-of-sale product, widely used for maintenance replacement of old campus wiring closet networks.

Function

Summit X250e-24t is 1U stackable Fast Ethernet access switch for legacy enterprise campus. 24×10/100 copper ports connect desktop PCs and non-power network terminals. Two combo gigabit ports provide flexible uplink choice over copper or fiber. Dedicated SummitStack ports merge multiple switches into one management domain to simplify configuration. Supports 802.1X user authentication and hardware QoS for voice and video traffic. External redundant power connector improves network uptime. Widely used for old office, school and factory wired access layer spare replacement.

InstallationFollow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Insert SFP transceiver if fiber uplink is needed. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface24×10/100BASE-T RJ45 ports,2×gigabit combo ports,serial console port,OOB management port,2×SummitStack stacking ports,AC power inlet,redundant power connector,LED indicators for Extreme Networks Summit X250e-24t.

FeatureOriginal Extreme Networks Summit X250e-24t legacy edge switch,24×10/100 fast ethernet + 2 gigabit combo uplink,SummitStack stacking,ExtremeXOS OS,support external redundant power. This spare switch is used for legacy campus wired access network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check AC power input and cable, verify EPS-160 redundant power wiring if used. Combo port link down: Confirm SFP compatibility, check cable and combo mode selection. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members. Port negotiation abnormal: Verify speed/duplex setting and copper cable quality.

Product BriefSummit X250e-24t is Extreme X250e series 1U 24-port Fast Ethernet stackable access switch with dual gigabit combo uplink ports,classic spare for legacy enterprise campus wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
