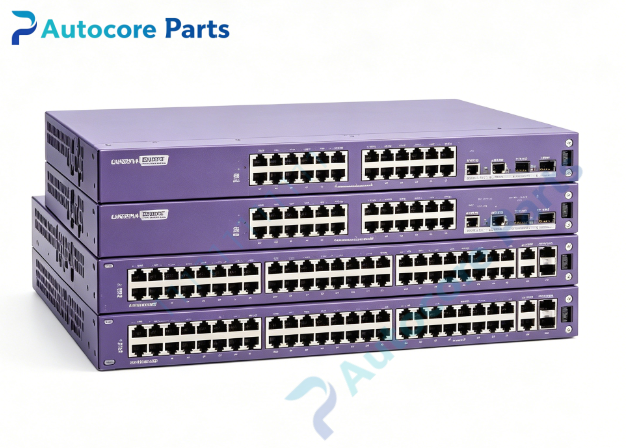

Extreme Networks Summit X250e-48tDC DC Powered Edge Access Switch

Technical SpecificationsModel：Summit X250e-48tDC Brand：Extreme Networks Product Type: 1U rack mount legacy stackable enterprise non-PoE Fast Ethernet access switch, DC power variant

Front Ports:

• 48 × 10/100BASE-TX RJ45 copper ports, auto-negotiation

• 2 × combo gigabit ports (shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system status

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• 2 × dedicated SummitStack stacking ports

• -48V DC power terminal block

• External redundant power connector, compatible with EPS-150DC external DC PSU

Switching & Layer Features: Switch Fabric: 97.6 Gbps Forwarding Rate: 39.9 Mpps MAC Address Table: 8K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 static routing Security: 802.1X, MAC filtering, storm control, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X250e switches into single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

Power & Mechanical: Power Supply: Built-in -48V DC PSU, input range -40 ~ -72VDC, rated 2.0A @ -48VDC Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Dimension: 441mm × 44mm × 388mm Weight: Approx 5.52 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS (end-of-sale legacy platform, max EXOS 15.3.x)

System compatibility

Summit X250e-48tDC belongs to X250e legacy edge switch family, DC power version for telecom cabinets. Compatible with 1G SFP transceivers. Can stack with other X250e series switches. Supports EPS-150DC external redundant DC power supply. End-of-sale product, mainly used for telecom room and industrial site legacy network maintenance replacement.

Function

Summit X250e-48tDC is 1U stackable Fast Ethernet non-PoE access switch designed for -48V DC telecom power environment. 48×10/100 copper ports connect desktop terminals and network equipment. Two combo gigabit ports provide flexible uplink selection via copper or fiber. Dedicated SummitStack ports merge multiple switches under one management domain. Supports 802.1X authentication, VLAN segmentation and hardware QoS for voice and video traffic. External EPS-150DC redundant DC power connector improves system reliability. Widely deployed for telecom site, factory and remote building legacy wired access spare replacement.

InstallationFollow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Wire -48V DC power cable to terminal block. Install EPS-150DC external redundant PSU if required. Insert 1G SFP transceiver for fiber uplink. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface48×10/100BASE-T RJ45 ports,2×gigabit combo ports,serial console port,OOB management port,2×SummitStack stacking ports,-48V DC terminal,external redundant DC power connector,LED indicators for Extreme Networks Summit X250e-48tDC.

FeatureOriginal Extreme Networks Summit X250e-48tDC legacy DC edge switch,48×10/100 fast ethernet + 2 gigabit combo uplink,SummitStack stacking,ExtremeXOS OS,support EPS-150DC external redundant DC power. This spare switch is used for telecom and industrial legacy wired access network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check -48V DC wiring and terminal voltage, inspect EPS-150DC redundant power connection if used. Combo port link down: Confirm SFP compatibility, check fiber/cable quality and combo mode selection. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members. Port negotiation abnormal: Verify speed/duplex setting and copper cable quality.

Product BriefSummit X250e-48tDC is Extreme X250e series 1U 48-port Fast Ethernet stackable non-PoE access switch with dual gigabit combo uplink and -48V DC power,classic spare for telecom and industrial legacy wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
