Extreme Networks Summit X440-48T Gigabit Non-PoE Edge Access Switch

Technical SpecificationsModel：Summit X440-48T Brand：Extreme Networks Product Type: 1U rack mount stackable enterprise Gigabit non-PoE access switch

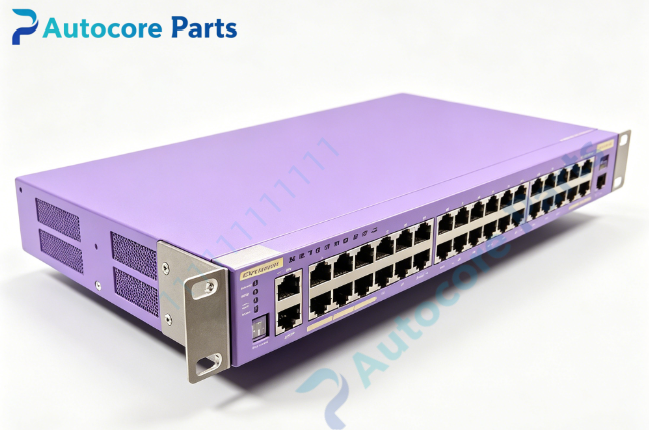

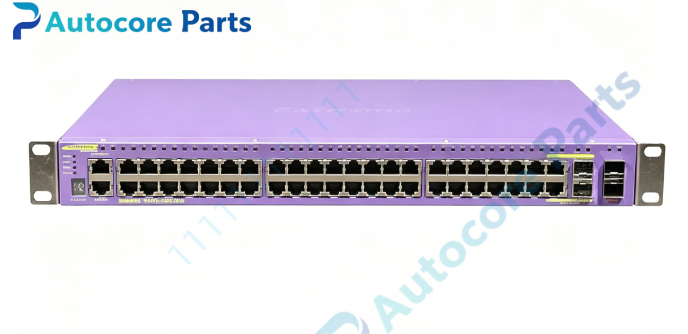

Front Ports:

• 48 × 10/100/1000BASE-T RJ45 copper ports, auto-negotiation, 4 ports shared as combo interfaces

• 4 × combo gigabit ports (shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system health

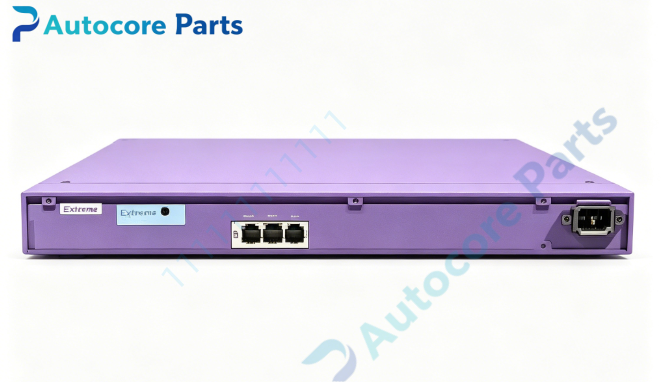

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• Dedicated SummitStack stacking ports

• AC power inlet

• External redundant power connector

Switching & Layer Features: Switch Fabric: 176 Gbps Forwarding Rate: 131 Mpps MAC Address Table: 16K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 static routing Security: 802.1X, MAC filtering, storm control, DoS protection, ACL QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X440 switches as single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

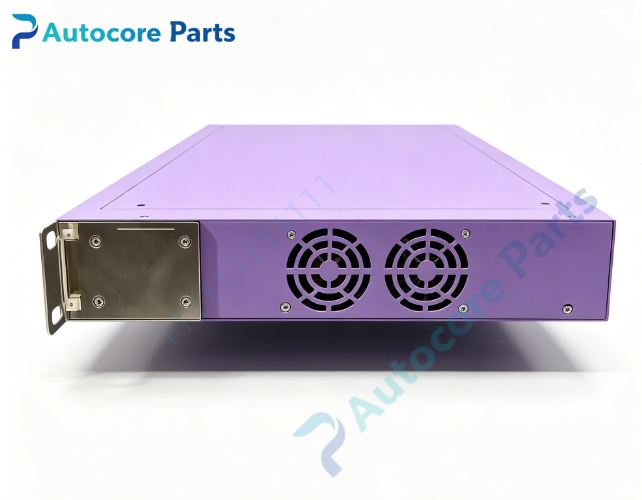

Power & Mechanical: Power Supply: Built-in universal AC 100-240V 50/60Hz, typical power consumption 57W Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Dimension: 441mm × 44mm × 387mm Weight: Approx 4.8 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS

System compatibility

Summit X440-48T belongs to X440 gigabit edge switch family, non-PoE variant. Compatible with 1G SFP transceivers. Can stack with other X440 series switches. Supports external redundant power supply. End-of-sale platform, used for enterprise office desktop wired network maintenance replacement.

Function

Summit X440-48T is 1U stackable Gigabit non-PoE access switch for enterprise campus and office. 48 gigabit copper ports connect desktop PCs, printers and non-PoE network terminals. Four combo ports offer flexible uplink selection over copper or fiber. SummitStack merges multiple switches under a single management domain to simplify configuration. Supports 802.1X user authentication, VLAN segmentation and hardware QoS to prioritize voice and video traffic. External redundant power interface improves system uptime. Widely deployed for office, factory and school gigabit wired access layer spare replacement.

InstallationFollow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Install external redundant PSU if required. Insert SFP transceiver for fiber uplink. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface48×1G RJ45 ports,4×gigabit combo ports,serial console port,OOB management port,SummitStack stacking ports,AC power inlet,redundant power connector,LED indicators for Extreme Networks Summit X440-48T.

FeatureOriginal Extreme Networks Summit X440-48T gigabit non-PoE edge switch,48×1G copper +4 gigabit combo uplink,SummitStack stacking,ExtremeXOS OS,support external redundant power. This spare switch is used for enterprise desktop wired access network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check AC power input and cable, verify external redundant power wiring if used. Combo port link down: Confirm SFP compatibility, check cable and combo mode selection. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members. Port negotiation abnormal: Verify speed/duplex setting and copper cable quality.

Product BriefSummit X440-48T is Extreme X440 series 1U 48-port gigabit stackable non-PoE access switch with four combo uplink ports,classic spare for enterprise desktop wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
