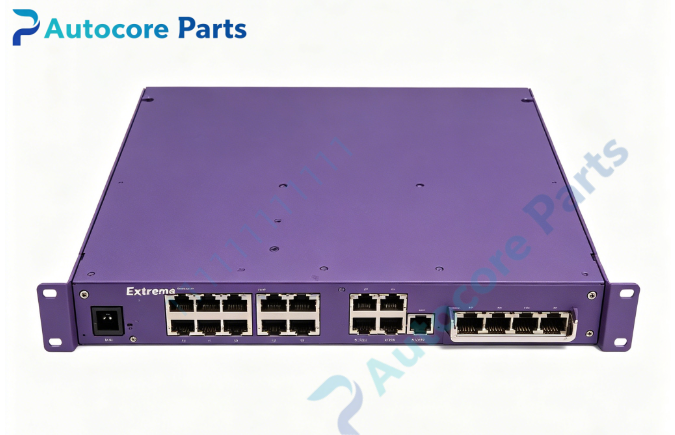

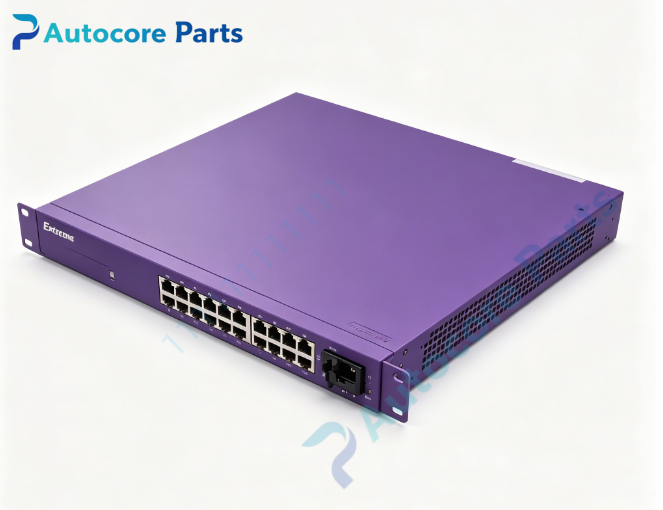

Extreme Networks Summit X450e-24t Gigabit Non-PoE Edge Access Switch

Technical Specifications

Model：Summit X450e-24t Brand：Extreme Networks Product Type: 1U rack mount stackable enterprise Gigabit non-PoE Layer3 access switch

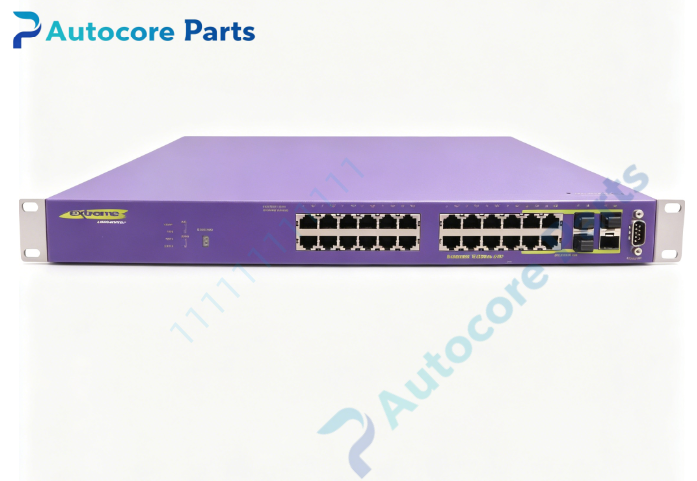

Front Ports:

• 20 × fixed 10/100/1000BASE-T RJ45 copper ports, auto-negotiation

• 4 × combo gigabit ports (ports 21-24 shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system health

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• Expansion slot for XGM2 series dual 10G uplink card

• Dedicated SummitStack stacking ports

• AC power inlet

• External redundant power connector, compatible with EPS-500 external PSU

Switching & Layer Features: Switch Fabric: 128 Gbps Forwarding Rate: 95.2 Mpps MAC Address Table: 8K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static routing Security: 802.1X, MAC filtering, storm control, centralized ACL, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X450e switches as single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

Power & Mechanical: Power Supply: Built-in universal AC 100-240V 50/60Hz Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Dimension: 441mm × 44mm × 432mm Weight: Approx 6.1 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS, max supported EXOS version 15.3.x

System compatibility

Summit X450e-24t belongs to X450e gigabit edge switch family, non-PoE L3 model. Compatible with 1G SFP transceivers and XGM2 10G expansion card. Can stack with other X450e series switches. Supports EPS-500 external redundant power supply. End-of-sale platform, widely used for legacy enterprise desktop gigabit wired network maintenance replacement.

Function

Summit X450e-24t is 1U stackable Layer3 Gigabit non-PoE access switch for enterprise campus. 24 gigabit copper ports connect desktop PCs, printers and non-PoE network terminals. Four combo ports offer flexible uplink selection over copper or fiber. Rear expansion slot accepts XGM2 dual 10G card for high-speed uplink to aggregation/core layer. SummitStack technology merges multiple switches under one management domain. Supports IPv4/IPv6 static routing, 802.1X authentication, VLAN segmentation and hardware QoS to prioritize voice and video traffic. External EPS-500 redundant power interface improves system uptime. Widely deployed for office, school and factory gigabit wired access layer spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Install EPS-500 external redundant PSU if required. Insert SFP transceiver for fiber uplink or install XGM2 10G card for high-speed uplink. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface

24×1G RJ45 ports,4×gigabit combo ports,serial console port,OOB management port,XGM2 10G expansion slot,SummitStack stacking ports,AC power inlet,redundant power connector,LED indicators for Extreme Networks Summit X450e-24t.

Feature

Original Extreme Networks Summit X450e-24t legacy L3 non-PoE edge switch,24×1G copper +4 gigabit combo uplink,optional XGM2 10G uplink,SummitStack stacking,ExtremeXOS OS,support EPS-500 external redundant power. This spare switch is used for enterprise desktop wired access network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power input and cable, verify EPS-500 redundant power wiring if used. Combo port link down: Confirm SFP compatibility, check cable and combo mode selection. 10G expansion card undetected: Power down and re-seat XGM2 card, check firmware compatibility. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members.

Product BriefSummit X450e-24t is Extreme X450e series 1U 24-port gigabit stackable Layer3 non-PoE access switch with combo uplink and optional 10G expansion slot,classic spare for legacy enterprise wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
