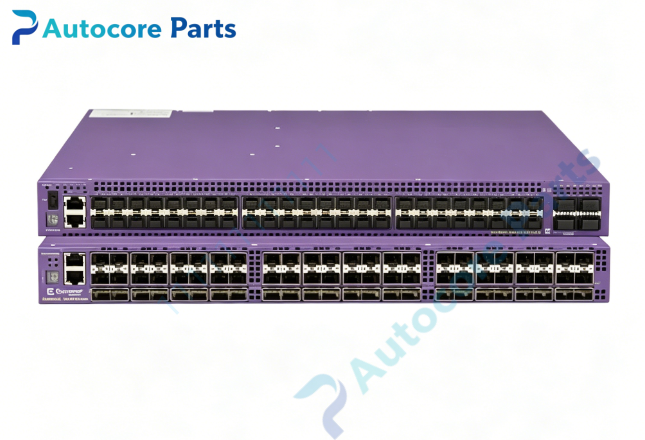

Extreme Networks Summit X670V-48x 10G SFP+ Managed Switch

Technical SpecificationsModel:X670V-48x Brand:Extreme Networks Product Type:1U rackmount fixed chassis Layer2/Layer3 managed switch (non-PoE) Ports:

• 48 ×1G/10G SFP+ fiber ports(auto negotiate 1000BASE-X /10GBASE-SR/LR/ER)

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port Rear expansion slot:VIM4 versatile interface module slot, supports VIM4-40G4X (4×40G QSFP+) uplink module Switching capacity:960Gbps Forwarding rate:720Mpps MAC address table:128000 entries Jumbo frame:9216 bytes Stacking:SummitStack, up to 8 switches stacked OS:ExtremeXOS, maximum supported version 16.x Power & fan:Dual hot-swappable AC/DC PSU slots,hot-swappable fan tray,selectable front-to-back / back-to-front airflow Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~93%, non-condensing Weight:7.0kg

System compatibilityX670V-48x belongs to Extreme Networks Summit X670 high-density 10G fiber aggregation family. Compatible with Extreme validated 1G SFP and 10G SFP+ transceivers, as well as VIM4 series rear 40G uplink modules. Can stack together with other X670/X670V series switches. Widely used for data center top-of-rack and enterprise campus core/aggregation spare replacement.

FunctionX670V-48x is non-blocking wire-speed Layer3 10G fiber switch. 48 SFP+ ports connect to servers or downstream access switches; rear VIM4 module provides 40G high-speed uplink or stacking. It supports static & dynamic routing,VLAN,STP/RSTP/MSTP,LACP/MLAG,ACL,QoS and multicast routing. It monitors optical module DDM,port link state,module temperature,power and fan health, and sends hardware fault alarms. Used for data center ToR and large campus core networks.

InstallationMount the switch on standard 19-inch 1U rack. Install hot-swappable PSU and fan tray. Insert SFP/SFP+ transceivers and fiber patch cords. Install VIM4 40G uplink module as required. Connect console port for ExtremeXOS configuration. Verify boot,port optical link and stacking function before commissioning.

Interface48×SFP+ fiber slots,1G out-of-band management port,RJ45 serial console,status LEDs,reset button,rear VIM4 expansion slot,dual PSU bays,fan tray,ground terminal,rack mounting ears for Extreme Networks Summit X670V-48x.

FeatureOriginal Extreme Networks Summit X670V 1U rackmount high-density 10G fiber Layer3 switch,48 SFP+ ports supporting 1G/10G auto-sensing,modular VIM4 rear expansion for 40G uplink,hot-swappable redundant PSU and fan tray,DDM optical diagnostics,wire-speed non-blocking forwarding,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports data center top-of-rack and enterprise campus core network deployment.

DiagnosticSwitch fails to boot: check AC/DC power input and PSU module health. Fiber port link down: verify SFP/SFP+ transceiver, fiber cable and port admin status. Low optical power alarm: dirty fiber endfaces or damaged fiber cable. Transceiver undetected: confirm Extreme validated optical module and proper insertion. VIM4 module not detected: verify VIM4 compatibility and ExtremeXOS firmware version. Over-temperature alarm: check fan tray operation and rack ventilation,remove dust buildup. Stacking failure: verify matching ExtremeXOS firmware and stacking cable integrity.

Product BriefX670V-48x is Extreme Networks Summit X670V series 1U rackmount Layer3 managed 10G fiber switch with 48×SFP+ ports and rear VIM4 40G expansion slot,classic spare part for data center ToR and enterprise campus core network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
