Extreme Networks VSP 7254XTQ Virtual Services Platform Switch

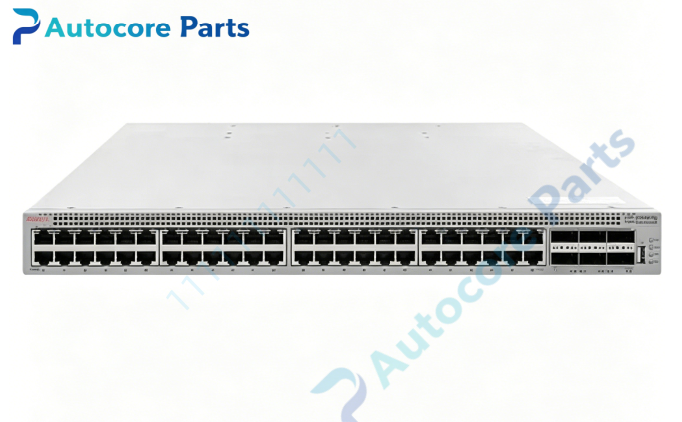

Technical SpecificationsModel：VSP7254XTQ (7254XTQ) Brand：Extreme Networks Product Type: 2U rack mount high-density virtualized data center switch (VSP7200 family)

Front Ports:

• 48 × 10GBASE-T RJ45 copper ports

• 6 × QSFP+ slots for 40GBASE-R transceivers; support channelization to split 40G into 4×10G

• 1 × OOB 10/100/1000BASE-T management port

• RJ45 serial console port, USB port

• LED indicators for port, fan, PSU and system health

Switching & Forwarding: Switching Capacity: 2.56 Tbps full duplex Forwarding Rate: 1428 Mpps MAC Address Table: 224K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLANs, Private VLAN support Routing Protocol: IPv4/IPv6, Static routing, OSPF, BGP, PIM multicast Virtual Network: EVPN, VXLAN overlay, MLAG multi-chassis link aggregation Security: MACsec encryption on 10G ports, 802.1X, ACL, storm control QoS: Hardware L2-L4 classification, 8 hardware priority queues per port

Power & Mechanical: Power Supply: Hot-swappable 800W AC / DC PSU, redundant load sharing Cooling: Hot-swappable fan trays, airflow options: front-to-back or back-to-front Software OS: VOSS (Virtual Operating System) Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch 2U rack bracket

System compatibility

VSP7254XTQ belongs to VSP7200 series, paired with VSP7254XSQ fiber variant. Runs VOSS, can form fabric with VSP8200 / VSP8400 series switches. 40G QSFP+ ports support breakout cables to 10G SFP+. Suitable for virtualized data center leaf layer deployment.

Function

VSP7254XTQ is high-density 2U 10G copper data center leaf switch. 48 10GBASE-T copper ports connect servers and hypervisor hosts over RJ45 cabling, 6 40G QSFP+ uplink ports interconnect to spine layer. It supports EVPN-VXLAN overlay network for cloud virtualization. MLAG eliminates single link failure between paired switches. MACsec provides encryption on 10G copper ports for secure server access. Redundant hot-swappable power supplies and fans guarantee continuous operation for 24/7 data center service. Widely used for virtualization data center, cloud computing and high-performance computing access layer.

InstallationFollow ESD protection procedure. Mount switch into standard 19-inch 2U rack. Install hot-swappable PSU and fan tray. Connect power and RJ45 / QSFP+ cables. Access console port for initial VOSS configuration, enable MLAG, EVPN-VXLAN and security policy. Verify fabric peering and port connectivity after power-up.

Interface48×10GBASE-T RJ45 ports,6×QSFP+ 40G slots,OOB management RJ45,serial console port,USB port,status LED indicators,PSU and fan bays for Extreme Networks VSP7254XTQ.

FeatureOriginal Extreme Networks VSP7254XTQ 2U data center switch,48×10GBASE-T copper +6×40G QSFP+,2.56Tbps switching capacity,VOSS OS,support EVPN VXLAN,MLAG and MACsec encryption. This spare switch is used for virtualized data center leaf layer deployment and hardware replacement.

DiagnosticSwitch boot failure: Check AC/DC power input, re-seat power supply and fan tray. 10G copper port link abnormal: Inspect Cat6A/7 cable quality, auto-negotiation setting. 40G port no link: Verify QSFP+ transceiver compatibility, check breakout configuration. MLAG peer down: Confirm inter-switch link status and matching VOSS firmware version. Overheat alarm: Check fan tray running status and rack airflow.

Product BriefVSP7254XTQ (7254XTQ) is Extreme VSP7200 series 2U high-density 48×10GBASE-T +6×40G QSFP+ leaf switch,classic spare for virtualized data center fabric.
