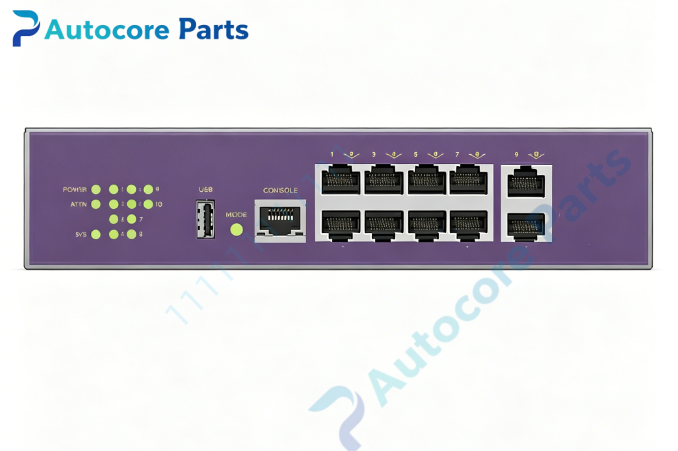

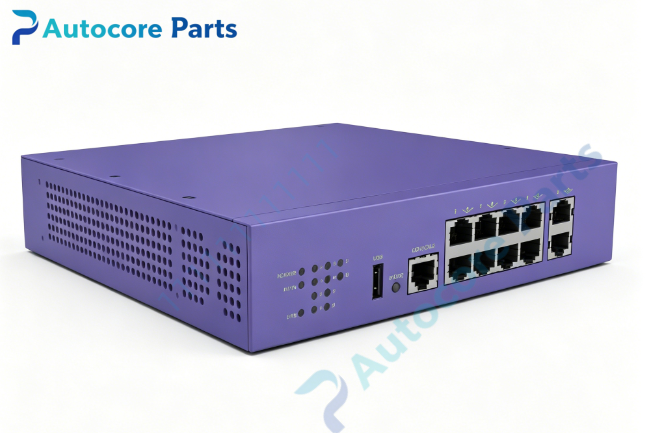

Extreme Networks X435-8P-2T-W Ethernet Switch

Technical SpecificationsModel：X435-8P-2T-W Brand：Extreme Networks Product Type：Fanless Wall Mount Compact Value Edge Enterprise Switch

Port Configuration: 8 × 10/100/1000BASE-T RJ45 PoE+ ports (802.3at, max 30W per port) 2 × 10/100/1000BASE-T 802.3bt PD uplink ports, powered from upstream PoE source 1 × RJ45 serial console port 1 × USB-A port for firmware/configuration storage

Switch Performance: Switching bandwidth 20Gbps, forwarding rate 14.9Mpps Software: ExtremeXOS Value Edge firmware, support Layer2 switching and static routing Stacking: Non-stackable standalone design Power supply: No local AC power adapter, powered by 802.3bt PD from upstream PoE switch, total downstream PoE budget up to 100W Operating temperature：0℃ ~ +40℃ Cooling: Fanless passive heat dissipation Dimension: 180mm(H) ×130mm(W) ×40mm(D) Weight: 2.0kg

System compatibility

X435-8P-2T-W belongs to Extreme X435 value edge compact switch family. The two BT uplink ports receive power from upstream PoE++ switch. Managed via CLI, SSH, HTTPS and ExtremeCloud IQ. Designed for remote branch, retail store, small office ceiling cabinet, IoT edge deployment for IP cameras and Wi-Fi access points. Standalone wall-mounted deployment.

Function

X435-8P-2T-W is compact fanless PoE passthrough edge switch. 8 PoE+ RJ45 ports supply power to IP cameras, wireless APs and IP phones. The dual 802.3bt uplink ports receive both network data and power from upstream PoE++ switch, eliminating local power supply. Supports static routing, VLAN, QoS, IGMP snooping, port security, storm control and network monitoring. Fanless silent operation, ideal for noise-sensitive small site.

Installation

Mount the switch on wall or cabinet. Connect Cat5e/Cat6 cable from upstream 802.3bt PoE++ switch to one or both uplink ports to supply power and data. Connect end PoE devices to 8 PoE+ ports. Configure via serial console or ExtremeCloud IQ. Verify PoE power allocation and port link status after commissioning. Pay attention to total PoE budget limitation.

InterfaceGigabit PoE+ RJ45 port,802.3bt PD uplink port,RJ45 serial console,USB-A port for Extreme Networks X435-8P-2T-W.

FeatureOriginal Extreme X435-8P-2T-W fanless compact wall mount PoE+ switch,8×30W PoE+ ports plus 2×802.3bt PoE passthrough uplink ports,runs ExtremeXOS,no local power supply required,standalone non-stackable. This spare is designed for remote branch and retail small site PoE edge network.

DiagnosticDevice undetected: Check upstream PoE++ equipment, cable connection, confirm uplink port 802.3bt negotiation. PoE port no power: Verify PD compatibility, check total 100W PoE budget limit. RJ45 port link down: Inspect Cat5e/Cat6 cable quality and length, check auto-negotiation. Uplink power lost: Confirm upstream switch 802.3bt capability and power allocation. Over-temperature warning: Check cabinet ventilation, fanless design depends on natural convection.

Product BriefX435-8P-2T-W is Extreme Networks fanless wall-mounted gigabit PoE+ edge switch with PoE passthrough function,8 PoE+ ports and dual 802.3bt uplink ports,classic spare part for retail and remote branch small PoE network replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
