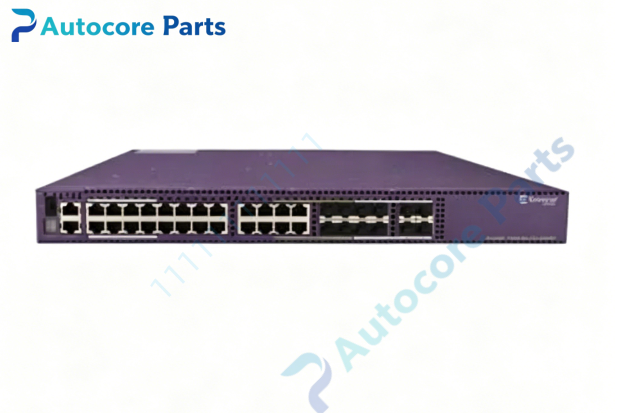

Extreme Networks X460-G2-24t-10GE4 Gigabit Managed Switch

Technical SpecificationsModel:X460-G2-24t-10GE4 Brand:Extreme Networks Product Type:1U rackmount fixed chassis Layer2/Layer3 managed switch (non-PoE) Ports:

• 24 ×10/100/1000BASE-T RJ45 copper ports

• 4 ×10GBASE-X SFP+ uplink/stacking ports,2 ports support SummitStack-V400 stacking Switching capacity:296Gbps Forwarding rate:220.2Mpps MAC address table:64000 entries Jumbo frame:9216 bytes Stacking:Supports SummitStack-V400, up to 8 switches stacked Timing:PTP IEEE1588, SyncE OS:ExtremeXOS Management interfaces:RJ45 serial console,USB console,1G out-of-band management port Expansion:Rear VIM modular slot,TM-CLK timing slot Power & fan:Dual hot-swappable PSU slots,hot-swappable fan tray,selectable front-to-back / back-to-back airflow Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:5.9kg

System compatibilityX460-G2-24t-10GE4 belongs to Extreme Networks X460-G2 high-performance enterprise edge/aggregation family. Compatible with Extreme validated 10G SFP+ transceivers SR/LR/ER and DAC/AOC cables. Can stack with X460-G2,X590,X690 series switches. Widely used for enterprise campus building aggregation spare replacement.

FunctionX460-G2-24t-10GE4 is non-blocking wire-speed Layer3 aggregation switch. 24 gigabit copper ports connect to access switches or end devices; four 10G SFP+ ports provide high-speed uplink to core switches or stacking. It supports static & dynamic routing,PTP precision time protocol,SyncE,VLAN,STP/RSTP/MSTP,LACP/MLAG,ACL,QoS and multicast. It monitors SFP+ DDM optical diagnostics,port link state,module temperature,power and fan health, and sends hardware fault alarms. Used for enterprise campus aggregation and building core networks.

InstallationMount the switch on standard 19-inch 1U rack. Install hot-swappable power supplies and fan tray. Insert SFP+ transceivers and fiber/DAC/AOC cables. Connect console port for ExtremeXOS configuration. Verify boot,port optical link,stacking and routing function before commissioning.

Interface24×1G RJ45 ports,4×10G SFP+ slots,RJ45 serial console,USB console,1G out-of-band management port,status LEDs,reset button,rear VIM expansion slot,TM-CLK clock slot,dual PSU slots,fan tray,ground terminal,rack mounting ears for Extreme Networks X460-G2-24t-10GE4.

FeatureOriginal Extreme Networks X460-G2 1U rackmount aggregation switch,24 copper gigabit ports plus quad 10G SFP+ uplink,PTP/SyncE timing,hot-swappable redundant PSU/fan,400G stacking capability,DDM optical monitoring,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports enterprise campus aggregation and building core high-speed network deployment.

DiagnosticSwitch fails to boot: check AC power input and PSU module health. Copper port link down: inspect Cat5e/Cat6 cable quality and auto-negotiation. Fiber port no link: verify SFP+ transceiver, fiber/DAC cable and port admin status. Low optical power alarm: dirty fiber endfaces or damaged fiber cable. Transceiver undetected: confirm Extreme validated optical module and proper insertion. Over-temperature alarm: check fan tray operation and rack airflow,remove dust buildup. Stacking failure: verify matching ExtremeXOS firmware and stacking cable integrity.

Product BriefX460-G2-24t-10GE4 is Extreme Networks X460-G2 series 1U rackmount Layer3 managed aggregation switch with 24×1G RJ45 and 4×10G SFP+ uplink ports,classic spare part for enterprise campus building aggregation network overhaul.

DisclaimerAll parameters are for reference only and shall not be identified as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
