Extreme Networks X460-G2-24t-GE4 Gigabit Edge Access Switch

Technical Specifications

Model：X460-G2-24t-GE4 Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 stackable gigabit enterprise access switch

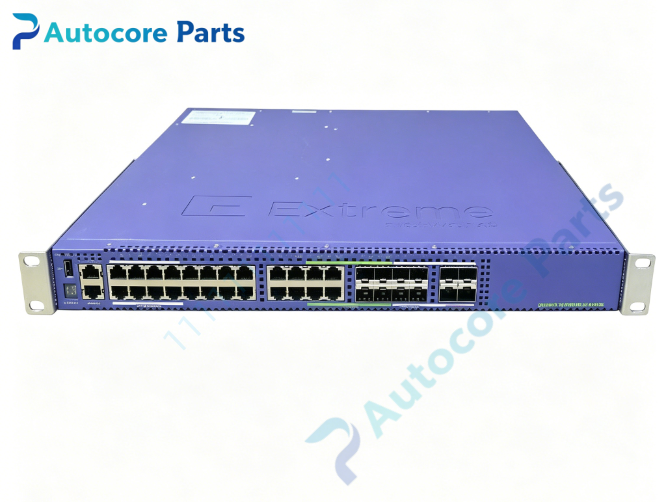

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 auto-sensing copper ports, 4 ports support combo SFP

• 4 × 100/1000BASE-X SFP slots for gigabit fiber uplink

• 1 × USB 2.0 port

• 1 × RJ45 serial console port

• LED indicators for port link, activity, power and system health

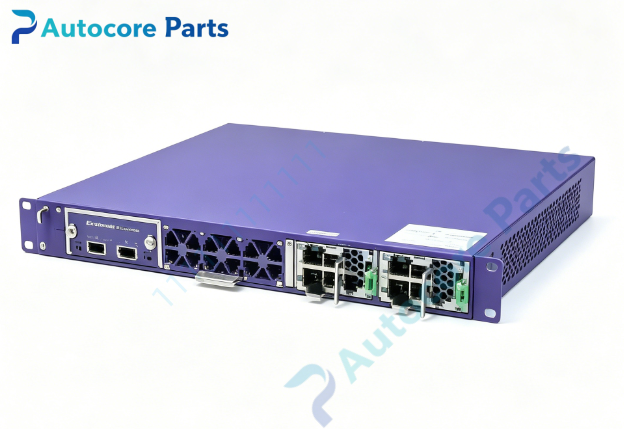

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T management port

• Dual hot-swappable PSU slots, support AC or DC power modules

• Hot-swappable fan tray, front-to-back / back-to-front airflow optional

• VIM modular slot for optional high-speed uplink or stacking module

Switching & Layer Features: Switch Fabric: 296 Gbps full duplex Forwarding Rate: 220.2 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, MAC authentication, storm control, bidirectional ACL QoS: Hardware L2-L4 classification, 8 priority queues Stacking: SummitStack-V, up to 8 switches stacked into one logical device Management: ExtremeXOS OS, SNMP, SSH, Web GUI, Extreme Management Center

Power & Mechanical: Power Supply: Dual hot-swappable 300W AC / DC PSU modules (sold separately) Cooling: Hot-swappable fan tray, airflow direction customizable Operating temperature：0℃ ~ +50℃ Dimension: 442mm × 44mm × 380mm Weight: Approx 5.86 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS

System compatibility

X460-G2-24t-GE4 belongs to Extreme X460-G2 series enterprise edge switch family. Compatible with Extreme certified 1G SFP transceivers. Supports SummitStack-V stacking with other X460-G2 switches. Designed for enterprise campus, office building and factory gigabit access network. Widely used for LAN upgrade and spare replacement.

Function

X460-G2-24t-GE4 is 1U high-performance stackable gigabit edge switch manufactured by Extreme Networks. It provides 24 gigabit copper ports for terminal access and 4×1G SFP fiber uplink ports. SummitStack-V technology combines multiple physical switches as one logical unit to simplify centralized management. Supports full IPv4/IPv6 routing, 802.1X authentication, VLAN segmentation and hardware QoS. Modular power and fan design enhances equipment reliability for non-stop network operation. Widely deployed for campus, factory and commercial building access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Install matching AC/DC power supplies and fan tray. Insert 1G SFP transceivers if fiber uplink required. Use Cat5e/Cat6 copper cables for gigabit terminals. Access serial console port for initial ExtremeXOS configuration, set VLAN, stacking, routing and QoS policy. Verify port connectivity and stack status after power-up.

Interface

24×1G RJ45 ports,4×1G SFP uplink slots,USB port,serial console port,OOB management port,VIM module slot,dual hot-swap PSU slots,hot-swap fan tray,LED indicators for Extreme Networks X460-G2-24t-GE4.

Feature

Original Extreme Networks X460-G2-24t-GE4 campus edge switch,1U,24×1G copper +4×1G SFP,SummitStack-V stacking,ExtremeXOS OS,support hot-swappable modular power and fan. This spare unit is used for enterprise campus gigabit access network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC/DC power input and PSU installation status. Copper port link down: Inspect Cat5e/Cat6 cable quality and termination. Fiber port no link: Confirm SFP transceiver compatibility, check fiber end face. Stack split fault: Verify stacking module and stacking cable, match ExtremeXOS firmware version. Overheat alarm: Check fan tray working condition and rack ventilation.

Product BriefX460-G2-24t-GE4 is Extreme Networks X460-G2 series 1U stackable gigabit access switch with 24 copper gigabit ports and 1G SFP fiber uplink, modular power and fan, ExtremeXOS OS,classic spare for enterprise campus edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
