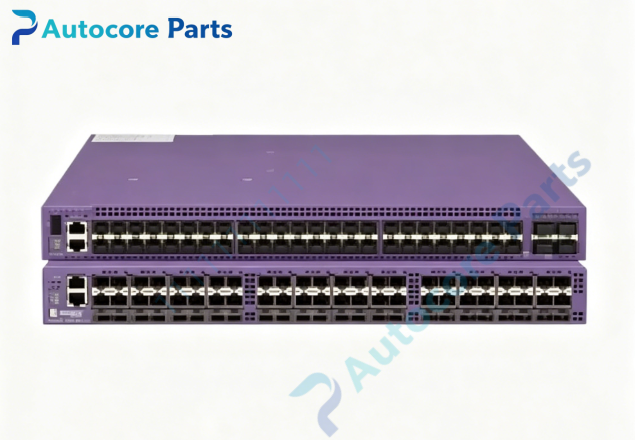

Extreme Networks X670-G2-48x-4q 10G/40G Managed Switch

Technical SpecificationsModel:X670-G2-48x-4q Brand:Extreme Networks Product Type:1U rackmount fixed chassis Layer2/Layer3 managed switch (non-PoE)

Ports:

• 48 ×1G/10G auto-sensing SFP+ fiber ports

• 4 ×40G QSFP+ uplink ports,each QSFP+ can be split into 4×10G ports via breakout cable

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB port

• 2 ×mini-BNC timing ports (1PPS,10MHz)

Switching capacity:1.28Tbps Forwarding rate:960Mpps MAC address table:128000 entries Jumbo frame:9216 bytes Stacking:SummitStack-V160 / SummitStack-V320, up to 8 switches stacked Timing:IEEE1588 PTP hardware clock OS:ExtremeXOS

Power & fan:Dual hot-swappable 550W AC/DC PSU slots,3 hot-swappable fan modules,selectable front-to-back / back-to-front airflow Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~95%, non-condensing Weight:8.2kg

System compatibility

X670-G2-48x-4q belongs to Extreme Networks X670-G2 high performance aggregation family. Compatible with Extreme validated 1G SFP,10G SFP+ and 40G QSFP+ transceivers. It supports stacking with other X670-G2 series switches. Widely used for enterprise campus core and cloud data center top-of-rack spare replacement.

Function

X670-G2-48x-4q is non-blocking wire-speed Layer3 aggregation switch. 48 SFP+ ports connect to servers or downstream access switches; four QSFP+ ports provide 40G high-speed uplink or stacking,each port supports breakout to four 10G channels. It supports static & dynamic routing,DCB(PFC/ETS/DCBX),MPLS,VLAN,STP/RSTP/MSTP,LACP/MLAG,ACL,QoS and multicast routing. Built-in hardware PTP realizes high precision time synchronization. It monitors optical module DDM,port link state,system temperature,power and fan health, and triggers hardware fault alarms. Used for data center ToR and enterprise core aggregation networks.

Installation

Mount the switch on standard 19-inch 1U rack. Install hot-swappable PSU and three fan modules. Insert SFP+/QSFP+ transceivers and fiber patch cords. Configure QSFP+ ports for stacking or breakout 10G if required. Connect console port for ExtremeXOS configuration. Verify boot,port optical link,stacking and PTP timing function before commissioning.

Interface48×SFP+ fiber slots,4×QSFP+ slots,1G out-of-band management port,RJ45 serial console,USB port,mini-BNC timing output ports,status LEDs,reset button,dual PSU bays,three fan slots,ground terminal,rack mounting ears for Extreme Networks X670-G2-48x-4q.

FeatureOriginal Extreme Networks X670-G2 1U rackmount 10G/40G fiber Layer3 switch,48 SFP+ plus 4 QSFP+ multi-rate uplink ports,support QSFP+ breakout,hardware IEEE1588 PTP timing,hot-swappable redundant AC/DC PSU and three independent fan modules,DDM optical diagnostics,wire-speed non-blocking forwarding,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports mixed 10G/40G data center top-of-rack deployment.

DiagnosticSwitch fails to boot: check AC/DC power input and PSU module health. Fiber port link down: verify SFP+/QSFP+ transceiver, fiber cable and port admin status. Low optical power alarm: dirty fiber endfaces or damaged fiber cable. Transceiver undetected: confirm Extreme validated optical module and proper insertion. QSFP+ breakout abnormal: verify breakout cable and port split configuration. PTP timing abnormal: check BNC timing wiring and PTP configuration. Over-temperature alarm: check three fan modules running status and rack ventilation,remove dust buildup. Stacking failure: verify matching ExtremeXOS firmware and stacking port configuration.

Product BriefX670-G2-48x-4q is Extreme Networks X670-G2 series 1U rackmount Layer3 managed 10G/40G fiber switch with 48×1G/10G SFP+ and 4×40G QSFP+ uplink ports,classic spare part for data center ToR and enterprise core aggregation network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
