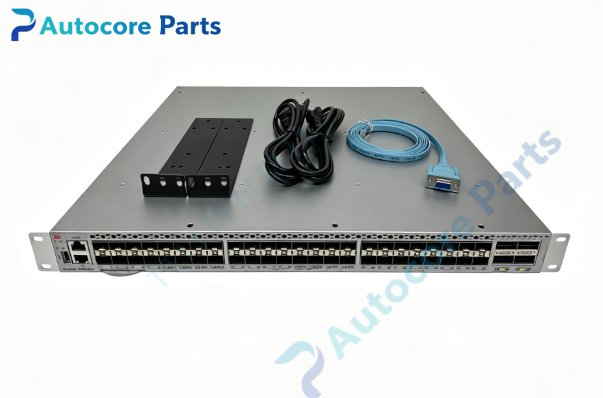

Extreme Networks BR-VDX6740-64-R Data Center Leaf Switch

Technical Specifications

Model：BR-VDX6740-64-R Brand：Brocade (Extreme Networks) Product Type: 1U rack mount high-density data center Layer2/L3 leaf switch

Front Ports:

• 48 × 10GbE SFP+ ports, upgradable to total 64×10G via PoD license

• 4 × 40GbE QSFP+ ports, each QSFP+ can breakout to four 10G SFP+

• Partial ports support FlexPort function, switch between Ethernet / 16G FC for FCoE

• 1 × RJ45 serial console port

• LED indicators for port link, activity and system health

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T management port

• Dual hot-swappable AC power supplies, integrated fans

• N+1 redundant fan, back-to-front airflow (port-side exhaust, R version)

Switching & Layer Features: Switch Fabric: 1.28 Tbps full duplex Forwarding Rate: 960 Mpps MAC Address Table: 32K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, MAC authentication, storm control, ACL, FIPS QoS: Hardware L2-L4 classification, 8 priority queues, DCB PFC Fabric: VCS Virtual Cluster Switching, multiple switches form unified fabric Management: Network OS, SNMP, SSH, Web GUI, Brocade Network Advisor

Power & Mechanical: Power Supply: Dual hot-swappable AC 100-240V PSU, load sharing Cooling: N+1 redundant fans integrated into PSU, back-to-front airflow Operating temperature：0℃ ~ +40℃ Dimension: 442mm × 43.7mm × 440mm Weight: Approx 7.3 kg Mounting: Standard 19-inch 1U rack bracket Software OS: Brocade Network OS (NOS)

System compatibility

BR-VDX6740-64-R belongs to VDX6740 data center leaf switch family, R variant with port-side exhaust airflow. Compatible with standard 10G SFP+ and 40G QSFP+ transceivers. Support VCS fabric to virtualize multiple physical switches. Supports FCoE for storage convergence. End-of-sale platform, widely used for legacy data center leaf/spine network renovation and spare replacement.

Function

BR-VDX6740-64-R is 1U high-performance data center leaf switch. It delivers high-density 10G access ports and 40G uplink ports for server rack connections. VCS fabric technology combines multiple VDX switches into a single logical device, simplifying network management. Partial ports work as FlexPort to run FCoE, converging storage and LAN traffic on same infrastructure. Supports complete L2/L3 routing, DCB lossless ethernet, 802.1X authentication and hardware QoS. Dual redundant hot-swap PSU and fans enhance uptime for critical datacenter environment. Widely deployed for enterprise data center, virtualization and storage convergence network spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cords to both power supplies. Insert SFP+/QSFP+ transceivers for server access and uplink connection. Access serial console port for initial NOS configuration, set VCS fabric, VLAN, routing and QoS policy. Verify fabric formation and port connectivity after power-up. Activate PoD license to unlock full 64×10G ports if needed.

Interface

48×10G SFP+ ports,4×40G QSFP+ ports,serial console port,OOB management port,dual hot-swap AC PSU,N+1 fan tray,LED indicators for Brocade BR-VDX6740-64-R.

Feature

Original Brocade BR-VDX6740-64-R datacenter leaf switch,1U,up to 64×10G SFP+ +4×40G QSFP+,VCS virtual fabric,FCoE FlexPort,back-to-front airflow,NOS OS,support hot-swappable redundant power and fan. This spare unit is used for legacy data center leaf network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power input and dual PSU installation status. Port link down: Confirm SFP+/QSFP+ transceiver compatibility, inspect fiber/cable quality. VCS fabric split: Verify inter-switch 40G links, match NOS firmware version across fabric nodes. PoD port cannot enable: Confirm valid PoD license installed on switch. Overheat alarm: Check fan operation and rack airflow.

Product BriefBR-VDX6740-64-R is Brocade VDX6740 series 1U high-density data center leaf switch, up to 64×10G SFP+ plus 4×40G QSFP+, VCS fabric and FCoE capability, back-to-front airflow,classic spare for legacy virtualized data center network.
