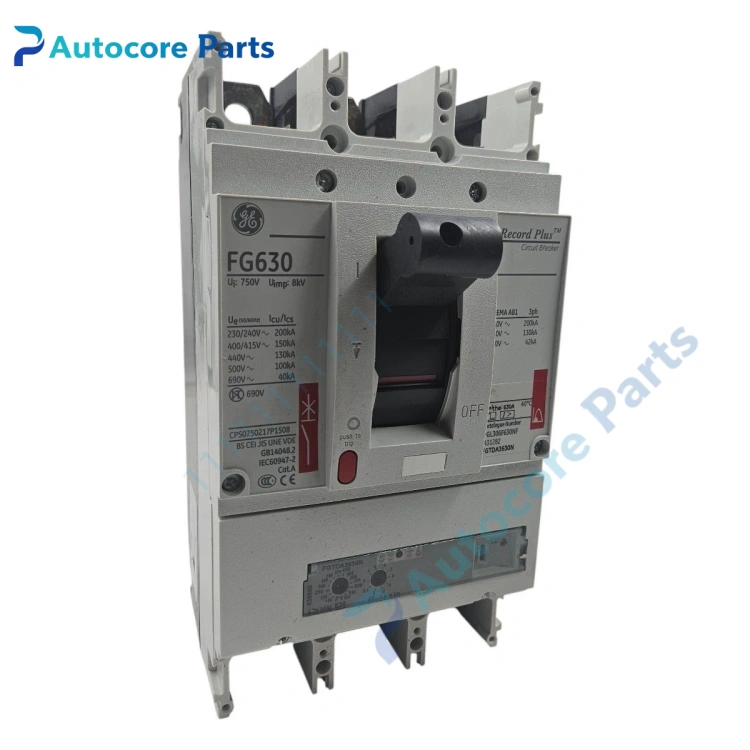

FGL37DA630NF Circuit Breaker

Feature & Principle

It is molded case circuit breaker for low-voltage power distribution loop. The thermal element responds to overload current and triggers delayed trip; the magnetic element responds to large short-circuit current for instantaneous trip. It can protect cables, transformers and downstream loads against overload, short circuit. Compact molded housing, easy installation inside power distribution cabinet.

Specifications

Model: FGL37DA630NF Poles: 3P Rated current: 630A Trip type: Thermal-magnetic Installation: Fixed mounting Application: Factory distribution cabinet, workshop power supply, motor branch protection Certification: CE, UL optional

Components & Diagnostics

Contact group, thermal bimetallic strip, magnetic trip coil, arc extinguishing chamber, operating mechanism, terminal. Common faults: cannot close, trip frequently, contact overheating, arc extinguishing chamber damage.

Product Brief

FGL37DA630NF molded case circuit breaker, low voltage distribution spare widely used for power cabinet overhaul and replacement.
