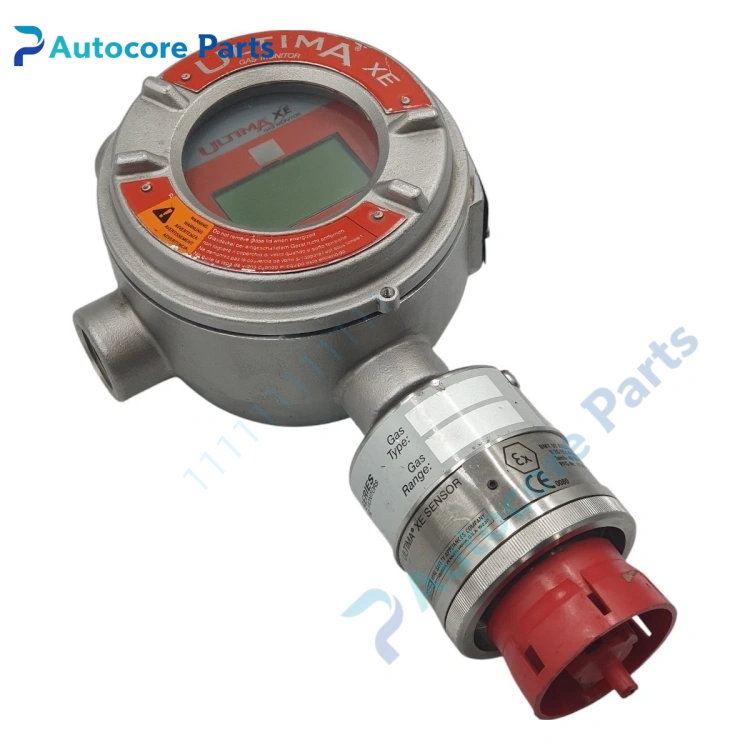

MSA Ultima Xe/Xir Gas Detector

Feature & Principle

It is MSA Ultima X series fixed gas detector. Ultima Xe uses electrochemical sensor for oxygen and toxic gas monitoring. Ultima XIR adopts non-dispersive infrared technology to detect hydrocarbon combustible gas, immune to catalyst poisoning. It converts gas concentration signal to standard 4-20mA analog signal, and supports HART digital communication. Smart pluggable sensor allows replacement without power off. Built-in LCD display, status LED and multi-channel alarm relay. 316 stainless steel explosion-proof enclosure adapts to oil, chemical and refinery hazardous areas.

Specifications

Model: Ultima Xe/Xir Brand: MSA Housing: 316 stainless steel, Ex d Detection type: Xe: toxic gas, O2; XIR: combustible gas (0-100%LEL) Output: 4-20mA, HART optional Power supply: 11~30VDC Relay: 3 SPDT relays (fault, warning, high alarm) Ingress protection: IP66 Working temperature: -40℃ ~ +60℃ Certification: ATEX, IECEx, UL Application: Refinery, offshore platform, chemical plant, hazardous area gas monitoring

Components & Diagnostics

Main electronic board, gas sensor module, LCD display, relay unit, explosion-proof enclosure, wiring terminal. Common faults: sensor drift, optical window contamination, communication failure, relay failure.

Product Brief

Ultima Xe/Xir fixed gas detector, MSA Ultima X series safety monitoring spare widely used for petrochemical hazardous area overhaul and replacement.
