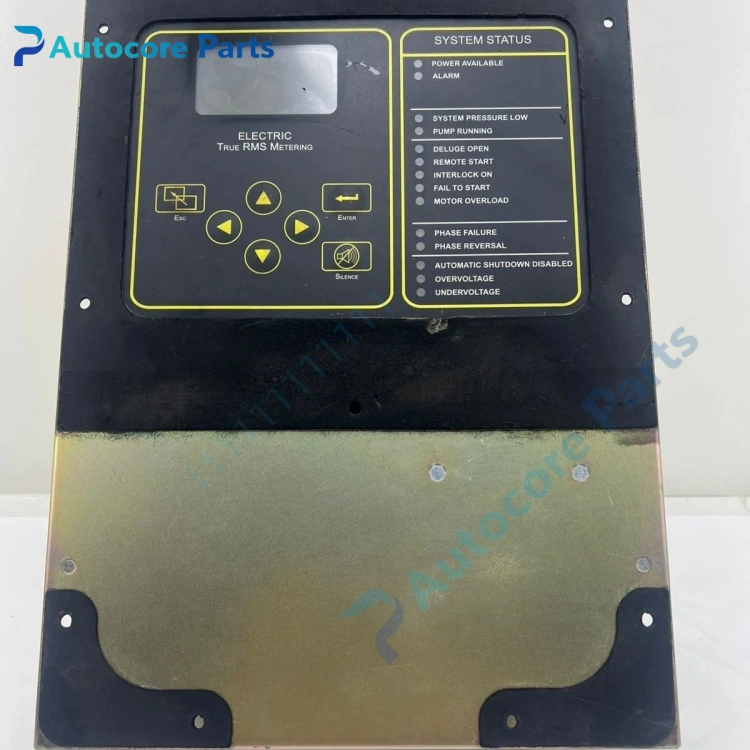

Firetrol IIXG-AS-1198-003 Mark IIXG Fire Pump Controller

Feature & Principle

It receives fire alarm signal or pressure switch signal to automatically start the fire pump. It monitors pump running current, voltage and motor status in real time, with overload, phase loss, overvoltage and undervoltage protection. It provides local manual test operation, sound and light alarm and remote relay output feedback, and records fault events for maintenance check.

Specifications

Model: IIXG-AS-1198-003 Brand: Firetrol Series: Mark IIXG Main power: 200~600VAC, 3 phase, 50/60Hz Control input: 120VAC Relay output: 5A 240VAC / 5A 30VDC Max power consumption: 30VA Mounting: Panel embedded installation Compliance: NFPA 20, UL

Components & Diagnostics

Main control board, LCD display, membrane keypad, signal sampling circuit, relay output module, status indicator lamp. Common faults: no response to fire trigger, screen no display, phase loss false alarm, relay output failure, communication signal loss.

Product Brief

IIXG-AS-1198-003 fire pump controller, Firetrol fire protection spare widely used for commercial buildings, industrial plants and warehouse fire pump cabinet maintenance and replacement.
