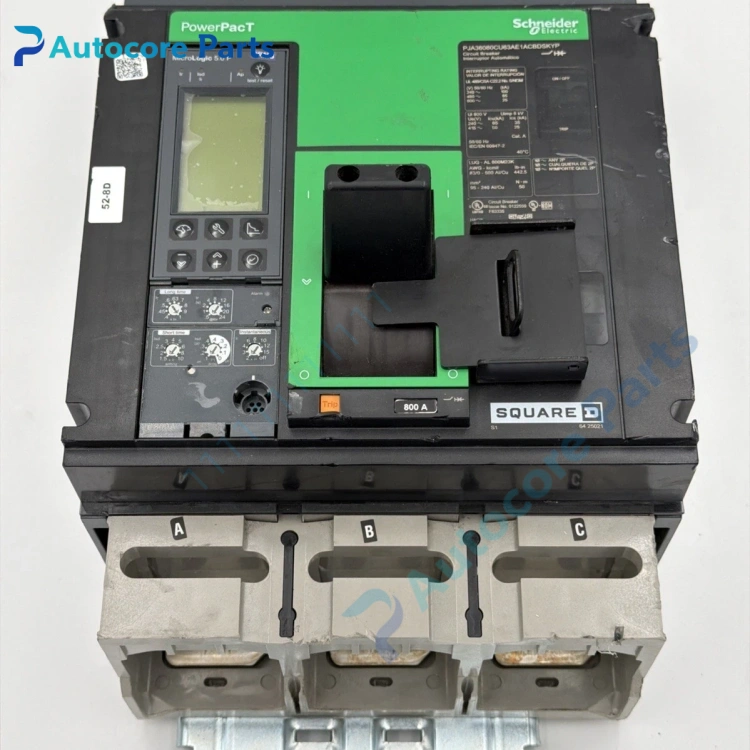

Square D PJA36080CU63AE1ACBDSKYP Molded Case Circuit Breaker

Feature & Principle

It adopts electronic microprocessor trip unit. Overload provides inverse time delayed protection, short-circuit fault supports short-delay or instantaneous tripping, earth leakage function detects residual current. This model is pre-configured with multiple auxiliary accessories, supports remote shunt trip and status feedback signal output, can communicate with power monitoring system, quickly cut off fault current to protect downstream cables and electrical loads.

Specifications

Model: PJA36080CU63AE1ACBDSKYP Brand: Square D (Schneider) Series: PowerPact P Pole: 3P Rated current: 800A Rated voltage: 600V AC Trip unit: Electronic trip Accessories: Auxiliary contact, shunt trip, alarm switch Mounting: I-Line plug-in Certification: UL, CSA, CE

Components & Diagnostics

Main contact assembly, arc extinguishing chamber, electronic trip unit, operating mechanism, auxiliary switch, shunt release. Common faults: cannot close, false tripping, contact overheating, shunt trip failure, signal feedback abnormal.

Product Brief

PJA36080CU63AE1ACBDSKYP molded case circuit breaker, Square D power distribution spare widely used for industrial power distribution cabinet, commercial building main circuit maintenance and replacement.
