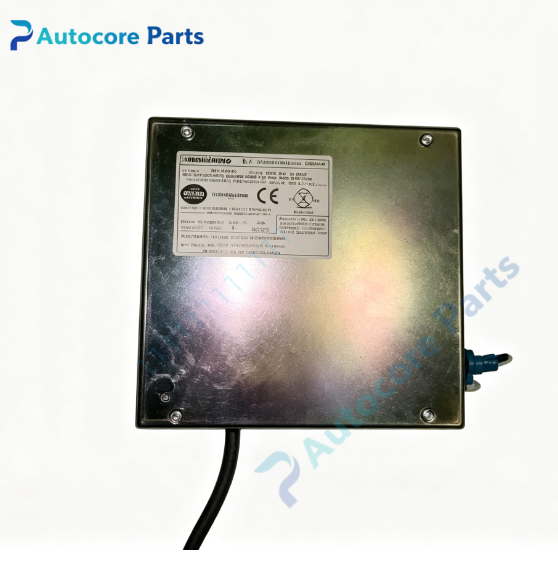

Fireye NX610 Nexus Integrated Combustion Controller

Technical Specifications

Model：NX610 Brand：Fireye Product Type: Microprocessor-based modular integrated burner controller, combining flame safeguard and parallel positioning fuel-air ratio control

Control Feature:

• Integrated flame safeguard logic and parallel positioning control

• Support up to 4 fuel profiles for multi-fuel burners

• CANbus 2-wire communication for servo actuators

• Support UV / self-check UV / IR flame scanners

• Built-in PID loops for temperature or pressure boiler regulation

• Optional O2 trim function for combustion efficiency optimization

Electrical Parameters:

• Supply voltage: 120/230 VAC, 50/60Hz

• Servo output: 24V CANbus servomotors

• Communication: Modbus RTU, CANbus

• Digital I/O: Configurable digital input and relay output points for safety interlock

• Expansion slots: for optional communication and VSD control cards

Mechanical & Structure:

• Housing: NEMA4 metal enclosure

• Front panel: keypad and LED status indicators, optional touchscreen display

• Mounting: panel mount or rack mount

• Accessory compatibility: NXD series display, NXCBH CANbus hub, NXO2 oxygen probe modules

Environmental:

• Operating temperature: -20℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: UL, FM approved

• Weight: Approx 3.2kg

System compatibility

NX610 belongs to Fireye Nexus series combustion control family. Compatible with Fireye UV, UV self-check, IR flame scanners, NXC CANbus servo motors. Matches NXD series display units, NXESI external servo interface, NXO2 oxygen trim modules. Widely used for industrial gas/oil boiler and furnace burner control and spare replacement.

Function

NX610 is Nexus integrated combustion controller manufactured by Fireye. It integrates burner sequencing, flame safety monitoring and parallel positioning fuel-air ratio control into one unit. The controller manages pre-purge, ignition, flame supervision and safety shutdown sequence. CANbus bus wiring simplifies multiple servo actuator connections for air and fuel valves. Built-in PID control maintains boiler temperature or pressure setpoint. Optional oxygen trim adjusts fuel-air ratio dynamically to improve combustion efficiency and reduce emissions. It provides complete diagnostic logs and lockout fault codes for troubleshooting. Widely deployed on industrial boilers and process furnaces for burner management spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount NX610 controller inside control cabinet. Wire power supply, safety interlock inputs, fuel valve relay outputs. Connect CANbus cable to servo motors, connect flame scanner wiring according to Fireye wiring schematic. Complete configuration of fuel profiles, purge timing and safety parameters. Perform burner cold test and firing commissioning, verify servo travel and flame safeguard interlock function.

InterfacePower terminal block,digital I/O terminals,CANbus bus port,flame signal input,expansion card slot,keypad & LED status indicators for Fireye NX610.

FeatureOriginal Fireye NX610 Nexus modular burner controller,integrated flame safeguard and parallel positioning,CANbus servo communication,support multi-fuel profiles,Modbus RTU communication,UL & FM safety certified. This spare unit is used for industrial boiler burner sequence control and combustion safety maintenance and hardware replacement.

DiagnosticFlame lockout: Check flame scanner lens, optical alignment, scanner wiring and flame signal gain setting. Servo communication loss: Inspect CANbus wiring, termination resistor, servo power supply. Safety interlock trip: Check external limit switches, pressure/temperature interlock contacts. No power: Verify AC supply voltage, fuse condition and power terminal tightness. Poor combustion efficiency: Check O2 trim sensor calibration and fuel-air curve parameters.

Product BriefNX610 is Fireye Nexus series integrated burner management controller with parallel positioning function, used for gas and oil boiler burner sequencing, flame safety interlock and fuel-air ratio control,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
