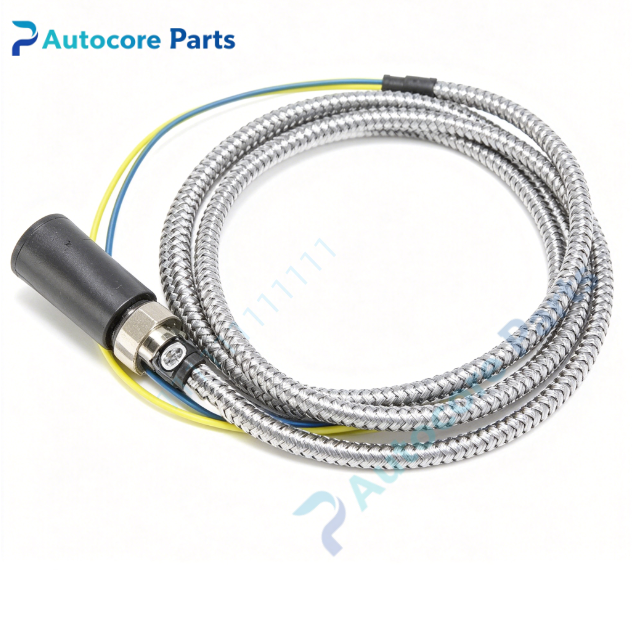

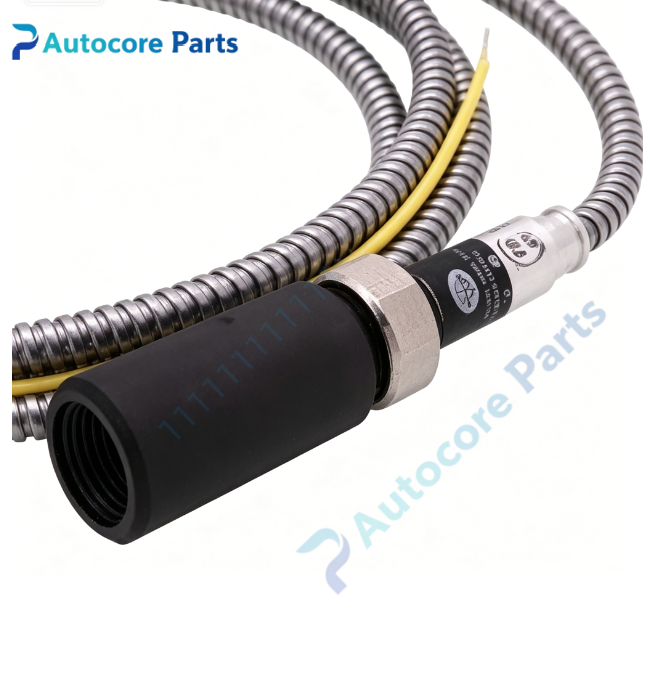

Fireye UV7A4 UV Flame Scanner

Technical Specifications

Model：UV7A4 Brand：Fireye Product Type: Non self-checking ultraviolet flame scanner for industrial cycling burners

Detection Feature:

• Detection spectrum: Ultraviolet UV band

• Self-check function: NO continuous built-in sensor self-test

• Flame target: Gas, light oil industrial burner flame

• Operating principle: Capture UV flicker radiation generated by combustion flame

• Safety verification: Scanner circuit health checked automatically at burner startup and shutdown cycle

Electrical Parameters:

• Supply voltage: 425VDC ±25VDC

• Discharge current: 0.3mA

• Cable assembly: 4ft (122cm) #18AWG shielded instrument cable

• Max total wiring length: 76m (250ft)

• Output: UV flame flicker signal to matched MBPF flame amplifier module

Mechanical & Structure:

• Housing: Metal straight body construction

• Mount thread: 1/2" F.N.P.T insulated nylon coupling

• Window: UV-transparent fused silica lens

• Optional accessory: Magnifying lens P/N 46-185

Environmental:

• Operating temperature: -20℃ ~ +125℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.4kg

System compatibilityUV7A4 belongs to Fireye UV7 series flame scanner family. Compatible with Fireye MB series multi-burner controllers, SB series single burner controllers and MBPF flame sensing modules. Designed for frequently cycled gas or oil boiler and furnace burners. Widely used for combustion safety system spare replacement.

FunctionUV7A4 is non self-check ultraviolet flame scanner manufactured by Fireye. It detects ultraviolet flicker radiation from combustion flame and transmits flame signal to matched flame safeguard amplifier. This model does not support continuous real-time self-check; the burner control system verifies scanner integrity on every burner start and stop cycle. When flame extinguishes, flame signal disappears, burner system cuts fuel supply to eliminate explosion hazard. The integrated 4ft shielded cable simplifies field wiring. Widely deployed for industrial boiler and furnace flame continuous monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount UV7A4 onto burner sight port through 1/2 inch FNPT insulated coupling, align quartz viewing window toward flame. Keep lens free of soot contamination. Route 4ft shielded cable to MBPF flame amplifier module, strictly follow Fireye wiring schematic. Execute burner cycling test and flame signal strength check during commissioning.

InterfaceFused silica quartz viewing window,1/2" FNPT insulated nylon coupling,4ft shielded instrument cable,metal straight housing for Fireye UV7A4.

FeatureOriginal Fireye UV7A4 non self-check UV flame scanner,4ft shielded cable,straight body design,system cycle health verification,UL & FM safety certified. This spare unit is suitable for frequently cycling gas/oil burners,used for industrial boiler burner flame detection maintenance and hardware replacement.

DiagnosticNo flame signal: Inspect quartz window soot contamination,optical alignment,cable continuity. No continuous self-test: This is non-self-check UV scanner,health check only executed during burner start/stop cycle. Intermittent flame signal: Check lens dirt, mechanical vibration and cable shielding integrity. False flame indication: Remove external UV interference source near burner sighting port.

Product BriefUV7A4 is Fireye non-self-check UV flame scanner with 4ft shielded cable,straight 1/2" FNPT mounting,works with MB/SB burner controllers and MBPF modules,classic spare for industrial furnace combustion control system.
