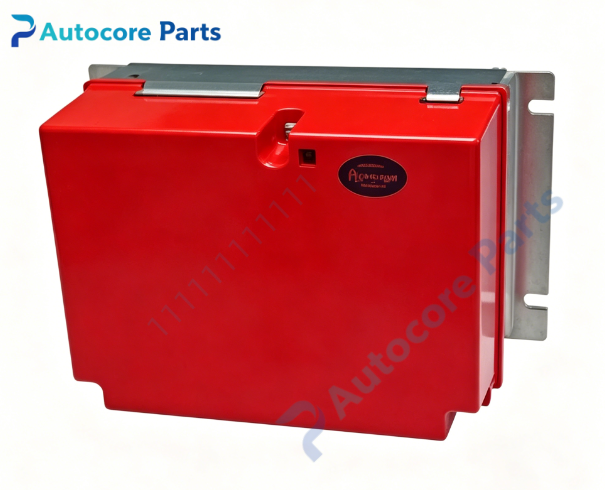

Fireye PPC6000 Parallel Positioning Controller

Technical Specifications

Model：PPC6000 Brand：Fireye Product Type: Parallel positioning fuel-air ratio controller for combustion systems

Control Feature:

• Servo capacity: Support up to 10 units of 24V CANbus servomotors

• Fuel profile: 4 independent fuel profiles, each profile supports 24 configurable curve points

• Control precision: Servo positioning accuracy ±0.1°, eliminates mechanical hysteresis

• Control loop: Dual independent PID loops for pressure or temperature regulation

• Boiler sequence: Built-in lead-lag function for maximum 4 boilers

Electrical Parameters:

• Supply voltage: 120/230VAC jumper selectable,50/60Hz

• Communication: CANbus daisy-chain for servo and display, optional Modbus TCP

• Digital input: 4 safety-rated configurable digital inputs

• Optional function block: Analog input expansion via Fireye Abacus software

• VFD interface: Support up to 2 variable frequency drives with feedback signal

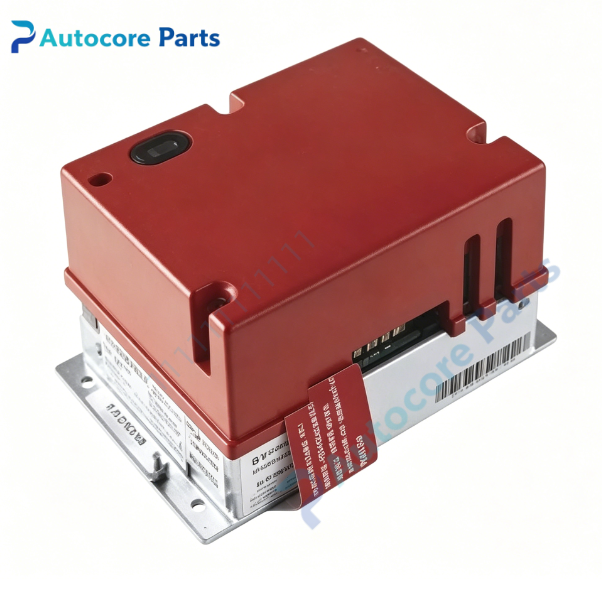

Mechanical & Structure:

• Housing: Metal enclosure for cabinet mounting

• Mounting: DIN rail / panel installation inside control cabinet

• Display option: NXTSD104 10.4-inch color touchscreen

• Protocol: Secure CANbus serial communication for all servo devices

Environmental:

• Operating temperature: 0℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 2.2kg

System compatibilityPPC6000 belongs to Fireye PPC series parallel positioning controller family. It must be matched with Fireye BurnerLogix flame safeguard controllers. Compatible with NXC CANbus servomotors, PXMS pressure transmitters, PSA pressure switches and flame scanners. Applied for gas, oil, dual-fuel industrial boilers and process furnaces. Widely used for combustion control system upgrade and spare replacement.

FunctionPPC6000 is advanced parallel positioning fuel-air ratio controller manufactured by Fireye. It independently controls fuel valve and air damper servomotors through CANbus bus. 24-point curve programming optimizes air-fuel ratio at different firing rates to improve combustion efficiency. Dual PID loops stabilize boiler pressure or temperature. Built-in lead-lag function manages multi-boiler load distribution. It handles modulation positioning while external flame safeguard performs burner safety sequence and flame supervision. Supports O2 trim and VFD integration for energy saving. Widely deployed for large industrial boiler combustion control and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PPC6000 inside NEMA rated control cabinet. Use 4-core shielded cable to daisy-chain CANbus servomotors and display. Wire digital inputs and analog sensors to terminal block strictly follow PPC-6001 wiring manual. Program fuel curve, PID parameters and boiler logic via Abacus software, then perform full modulation test and combustion tuning during commissioning.

InterfaceCANbus servo communication port,power terminal block,digital input terminals,analog sensor input,relay interlock terminals,metal cabinet mount housing for Fireye PPC6000.

FeatureOriginal Fireye PPC6000 parallel positioning controller,multi-fuel curve programming,CANbus servo network,dual PID control,lead-lag boiler sequencing,UL & FM safety certified. This unit is used for industrial boiler fuel-air ratio modulation,combustion optimization and control system hardware replacement.

DiagnosticServo no communication: Inspect CANbus wiring,terminal connection and bus termination resistor. Combustion curve drift: Re-calibrate fuel-air profile,check servo feedback and mechanical linkage. PID unstable regulation: Tune PID gain parameters,check pressure/temperature sensor signal. Lead-lag sequence fault: Verify digital input configuration and interlock contact status.

Product BriefPPC6000 is Fireye PPC series parallel positioning fuel-air ratio controller with CANbus servo drive,supports multi-fuel and multi-boiler lead-lag control,classic core controller for industrial boiler combustion modulation system.
