Fireye SB510 Remote Display Unit

Technical Specifications

Model：SB510 Brand：Fireye Product Type: Remote display & keypad operator interface for SB series flame safeguard controllers

Display Feature:

• Screen: 2-line × 16 character alphanumeric LCD

• Function: Real-time burner status, lockout fault history, parameter viewing

• Control: Integrated membrane keypad for remote reset and menu navigation

• Communication: Dedicated communication cable to connect SB series main controller

Electrical Parameters:

• Supply voltage: 120VAC, 50/60Hz

• Connection: Specialized wiring cable to SB base unit terminal block

• Remote reset support: Built-in keypad reset function for burner lockout

Mechanical & Structure:

• Housing: NEMA rated enclosure

• Mounting: Panel mount

• Keypad: Sealed membrane keys for industrial environment

• Cable: Compatible with Fireye SB series communication wiring

Environmental:

• Operating temperature: -20℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.95kg

System compatibilitySB510 belongs to Fireye SB series accessory family. Compatible with all SB560xxAA / SB560xxXA flame safeguard main controllers. It serves as remote human-machine interface, used on gas industrial burners, commercial heating boilers and process heating furnaces. Widely used for combustion system spare replacement and upgrade.

FunctionSB510 is remote display and keypad module manufactured by Fireye for SB series burner controllers. It retrieves real-time operating data, flame signal value, lockout fault logs and sequence status from the main SB controller via communication link. Operators can read diagnostic information and perform remote lockout reset via the keypad. It is used when the main safety controller is mounted inside control cabinet and local operation/observation is required on boiler front panel. Widely deployed for industrial boiler combustion monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount SB510 on front control panel. Run dedicated communication cable between SB510 and SB series controller base, strictly follow Fireye SB510 wiring schematic. Power on and verify communication link and keypad reset function during commissioning.

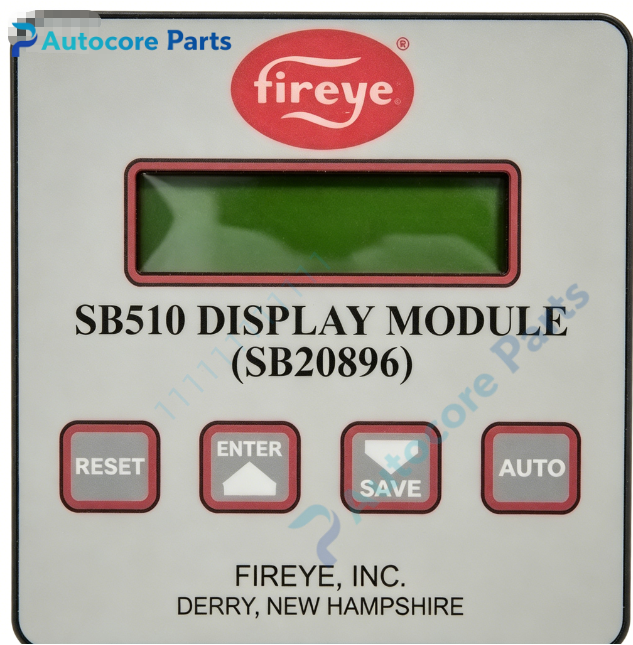

Interface2×16 LCD screen,sealed membrane keypad,communication wiring terminals,NEMA panel mount enclosure for Fireye SB510.

FeatureOriginal Fireye SB510 remote display unit for SB series burner controller,two-line alphanumeric LCD,built-in keypad for fault viewing and remote reset,UL & FM safety certified. This spare unit is used for industrial boiler burner remote operation,diagnostic monitoring maintenance and hardware replacement.

DiagnosticNo display: Inspect 120VAC power supply and communication cable continuity. No communication: Check wiring terminal connection, cable damage and main controller power status. Keypad no response: Verify keypad membrane damage and remote reset terminal configuration. Incomplete fault log: Power cycle the SB main controller and re-establish communication.

Product BriefSB510 is Fireye SB series remote display & keypad interface,works with SB560xxAA flame safeguard controllers for remote status reading,fault history review and burner reset,classic accessory spare for gas burner combustion safety system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
