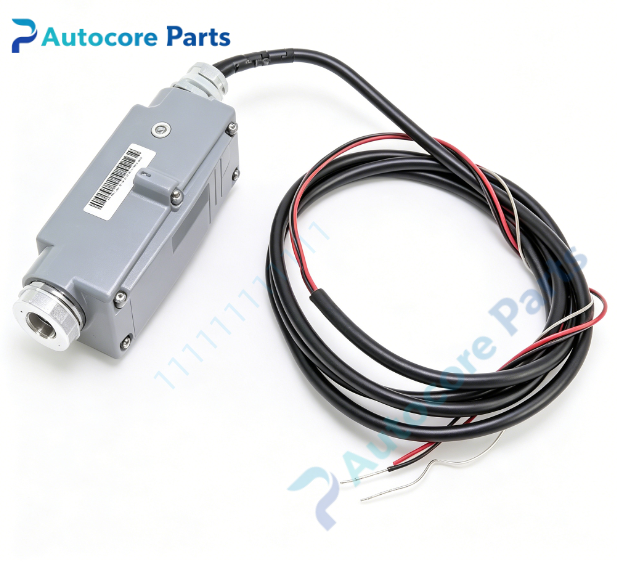

Fireye UV1A50 UV Flame Scanner

Technical Specifications

Model：UV1A50 Brand：Fireye Product Type: Non self-checking ultraviolet flame scanner for industrial cycling burners

Detection Feature:

• Detection spectrum: 190 ~ 270nm ultraviolet UV band

• Self-check function: NO built-in continuous sensor self-test

• Flame target: Natural gas, propane, No.2 light oil industrial burner flame

• Operating principle: Geiger-Muller UV tube captures UV flicker radiation generated by combustion flame

• Safety verification: Scanner circuit health checked automatically at burner startup and shutdown cycle

Electrical Parameters:

• Cable assembly: 50 inch (1270mm) #18AWG integrated shielded instrument cable

• Max extended wiring length: Up to 250ft

• Signal output: UV flame flicker signal to matched non-self-check UV flame amplifier

• Wiring terminals: S1 / S2, non-polarity connection

Mechanical & Structure:

• Housing: Compact metal straight body construction

• Mount thread: 1/2" F.N.P.T insulated nylon coupling

• Window: UV-transparent fused silica lens

• Structure: Small footprint design for regular burner sight port installation

Environmental:

• Operating temperature: -40℃ ~ +93℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.38kg

System compatibilityUV1A50 belongs to Fireye UV1 series flame scanner family. Compatible with Fireye MB series multi-burner controllers, MicroM, YB110UV, ZB110UV non-self-check UV burner chassis. Matches YP series programmer modules, ED510 display units. Suitable for gas and light oil boiler and furnace burners. Widely used for combustion safety system spare replacement.

FunctionUV1A50 is non self-check ultraviolet flame scanner manufactured by Fireye. It uses Geiger-Muller UV tube to detect ultraviolet flicker radiation from combustion flame and transmit flame signal to matched flame safeguard amplifier. This model does not support continuous real-time self-check; burner control system verifies scanner integrity on every burner start and stop cycle. When flame extinguishes, flame signal disappears, burner controller triggers safety lockout and cuts fuel supply to eliminate explosion hazard. The 50-inch pre-wired shielded cable simplifies field wiring work. Widely deployed for industrial boiler and furnace flame continuous monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount UV1A50 onto burner sight port via 1/2 inch FNPT insulated coupling, align quartz viewing window toward flame. Keep lens free of soot contamination. Route 50-inch shielded cable to matched Fireye UV amplifier, strictly follow Fireye wiring schematic. Execute burner cycling test and flame signal strength verification during commissioning.

InterfaceFused silica quartz viewing window,1/2" FNPT insulated nylon coupling,50 inch integrated shielded signal cable,compact metal housing for Fireye UV1A50.

FeatureOriginal Fireye UV1A50 non self-check UV flame scanner,50 inch shielded cable,straight compact body,Geiger-Muller UV tube,UL & FM safety certified. This spare unit is used for industrial boiler burner flame detection maintenance and hardware replacement.

DiagnosticNo flame signal: Inspect quartz window soot contamination,optical alignment,cable continuity. No continuous self-test: This is non-self-check UV scanner,health check only executed during burner start/stop cycle. Intermittent flame signal: Check lens dirt,mechanical vibration and shielding cable integrity. False flame indication: Remove external UV interference source near burner sighting port.

Product BriefUV1A50 is Fireye non-self-check UV flame scanner with 50 inch shielded cable,straight 1/2" FNPT mounting,works with MB/MicroM/YB110UV burner chassis,classic spare for industrial furnace combustion control system.
