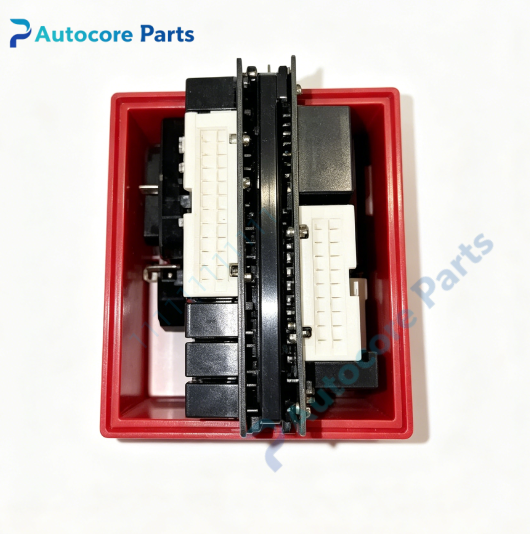

Fireye YB110IR BurnerLogix Y Integrated Burner Control Chassis

Technical Specifications

Model：YB110IR Brand：Fireye Product Type: BurnerLogix Y series microprocessor burner management chassis with built-in standard IR auto-check flame amplifier

Control Feature:

• Amplifier type: Standard IR auto-check flame amplifier

• Sequence logic: Full burner cycle control including pre-purge,ignition trial,flame supervision,post-purge and safety lockout

• Supported burner modes: on/off,high-low-off,modulating burner

• Compatible flame detector: Fireye IR series infrared flame scanners

• Built-in boiler modulation control,pressure/temperature limit monitoring

• Cold start thermal shock protection

• Fault log storage for lockout history review

Electrical Parameters:

• Supply voltage: 120 VAC,50/60Hz

• Power consumption: 25VA

• Flame input: Dedicated IR scanner signal terminals

• Relay outputs: Fuel valve,ignition,alarm and auxiliary relay outputs

• Digital inputs: Safety interlock,high/low pressure,temperature limit switch inputs

• Communication: Optional Modbus communication module

Mechanical & Structure:

• Mounting: DIN rail installation inside control cabinet

• Housing: NEMA1 metal chassis

• Front panel: Multi LED status indicators,manual reset button

• Expansion slot: For plug-in YP programmer module

• Optional display: BLV512 OLED or BLL510 LCD display (sold separately)

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: UL,FM approved

• Weight: Approx 1.45kg

System compatibility

YB110IR belongs to Fireye BurnerLogix Y burner control family. Compatible with Fireye IR series infrared flame scanners. Matches YP programmer modules,BLV512/BLL510 display units and wiring base 60-2810-1. Suitable for gas,oil and dual-fuel boiler and furnace burners. Widely used for industrial combustion safety control spare replacement.

Function

YB110IR is BurnerLogix Y integrated burner control chassis manufactured by Fireye. It integrates burner sequence control and standard IR auto-check flame amplifier. The IR auto-check circuit continuously verifies infrared flame scanner health status during operation. It detects infrared flicker signal from burning flame. The controller executes complete burner operating cycle. If flame loss or scanner failure is detected, it triggers safety lockout and cuts fuel supply immediately to avoid unburned fuel accumulation and explosion risk. It also supports boiler modulation and thermal shock protection function. Widely deployed for industrial boiler and furnace burner combustion safety control and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount YB110IR on DIN rail in control cabinet. Install YP programmer module and optional display. Wire 120VAC power,external safety interlock switches,ignition transformer and fuel valve relays. Connect IR flame scanner wiring strictly following Fireye wiring schematic. Complete cold test and burner firing commissioning,verify stable IR flame signal and safety interlock action.

InterfaceAC power terminal block,IR flame scanner input terminals,digital interlock input terminals,relay output terminals,YP programmer slot,LED status indicators and reset button for Fireye YB110IR.

FeatureOriginal Fireye YB110IR BurnerLogix Y chassis,120VAC power,standard IR auto-check flame amplifier,full burner sequencing,boiler thermal shock protection,UL & FM safety certified. This spare unit is used for industrial boiler burner flame safety system maintenance and hardware replacement.

DiagnosticFlame lockout: Inspect IR scanner lens contamination,optical alignment,scanner wiring and flame signal gain. IR scanner auto-check fault: Verify IR scanner compatibility,power supply and sensor aging. Interlock lockout: Check external pressure/temperature limit switches and interlock loop continuity. No power: Check 120VAC supply voltage and internal fuse integrity. Modulation abnormal: Verify firing rate motor wiring and boiler sensor calibration.

Product BriefYB110IR is Fireye BurnerLogix Y series 120VAC burner management chassis with standard IR auto-check amplifier,designed for gas/oil burner applications,provides burner sequencing and infrared flame safety interlock,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
