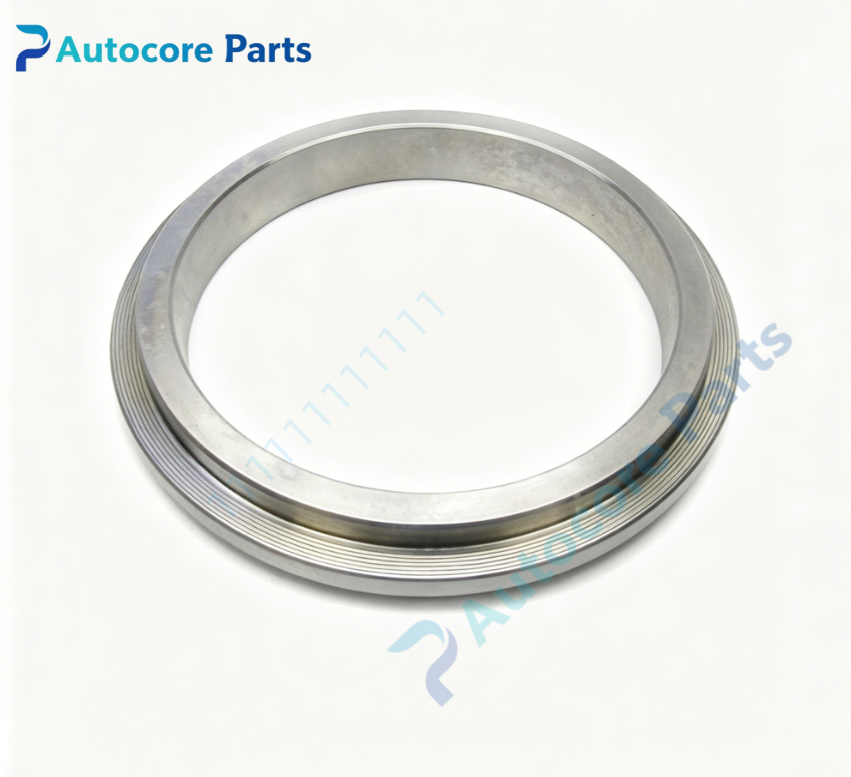

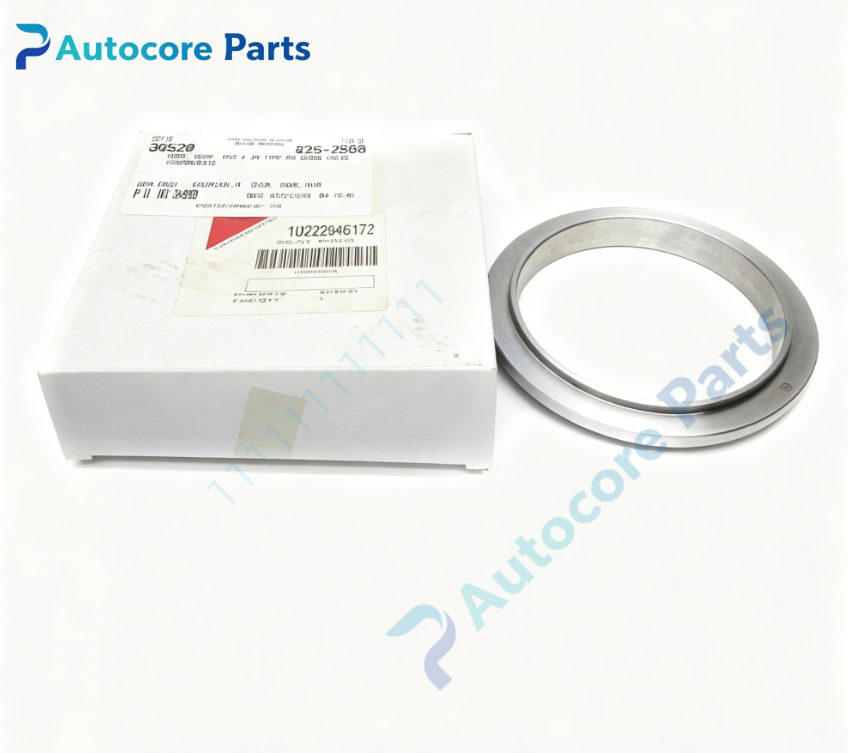

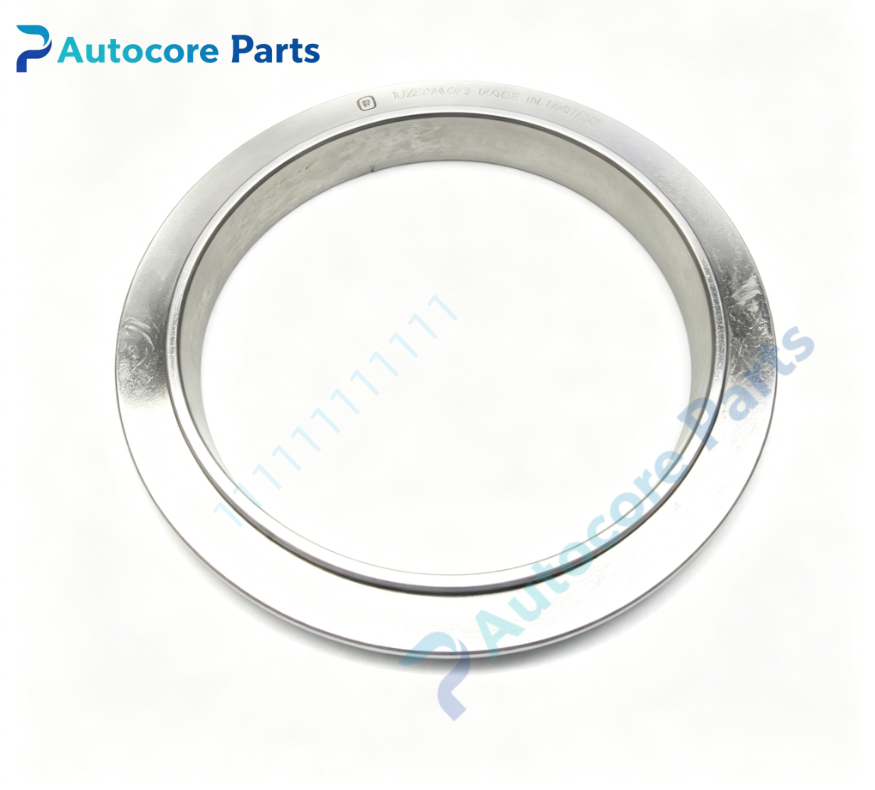

Fisher 1U222946172 Valve Trim Spare Component

Technical Specifications

Model：1U222946172 Brand：Fisher Product Type: Control valve internal trim spare component

Module Feature

Fisher 1U222946172 is precision alloy mechanical spare component for Fisher globe control valve trim assembly. It cooperates with valve plug, cage and seat ring to form complete throttling trim set. High strength alloy material provides excellent anti-corrosion and anti-erosion performance for medium and high pressure drop process service. Widely applied in oil,gas,chemical and power plant globe control valves.

Working principle: Trim positioning and mechanical support for throttling assembly Onboard components: Alloy mechanical body, locating pins, sealing washer

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, dimensional measurement, surface wear & deformation inspection, trim assembly fit test

Programming software

No dedicated software required

Mechanical & Structure

Mounting: Installed inside globe control valve body Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +425℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher valve trim spare part

System compatibility

Compatible with matched Fisher globe control valve trim set and pneumatic diaphragm actuator for industrial process control system.

Function

1U222946172 is core trim support component manufactured by Fisher. It supports and positions internal valve trim assembly, maintains coaxiality between valve plug and cage during stroke movement. It reduces fluid vibration and mechanical friction during throttling, stabilizes flow characteristic and guarantees seat shutoff performance. It is essential spare part for control valve trim overhaul.

Installation

Follow lockout/tagout safety procedure before installation. Isolate pipeline and release process pressure. Disassemble valve bonnet, replace old 1U222946172 component. Verify trim coaxiality and sliding clearance. Reassemble valve assembly and perform hydrostatic test and seat leakage inspection.

Interface

Valve body internal locating groove, locating pin holes, no LED indicators on 1U222946172.

Diagnostic

Valve internal leakage: Trim misalignment caused by worn support component. Abnormal vibration and noise: Component deformation or loose trim assembly. Valve sticking: Increased mechanical friction of moving trim parts.

Product Brief

1U222946172 Fisher globe control valve alloy trim support spare component,matched with Fisher globe valve trim and pneumatic diaphragm actuator,for industrial high differential pressure control valve maintenance and overhaul,anti-erosion internal trim spare part.
