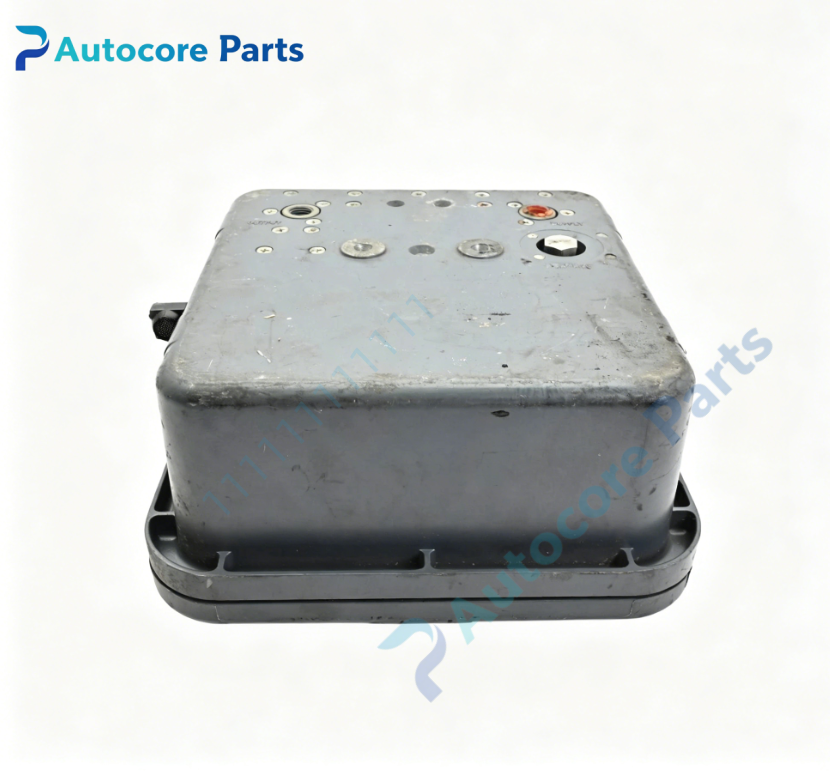

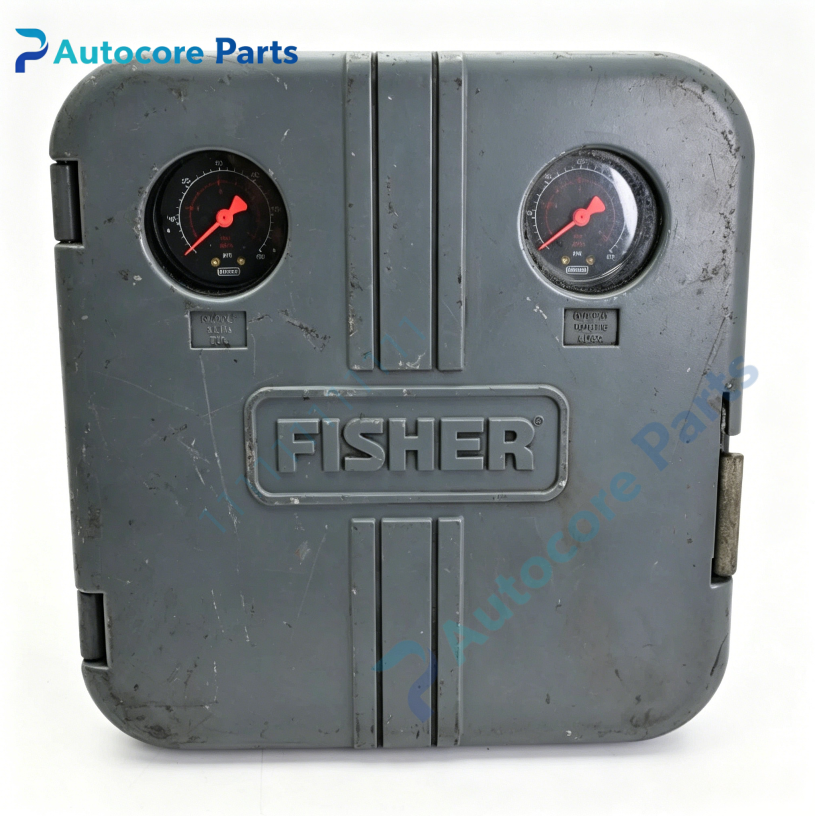

Fisher 4150K Wizard II Pressure Controller

Technical Specifications

Model：4150K Brand：Fisher Product Type: Pneumatic pressure controller

Module Feature

Fisher 4150K belongs to Wizard II series self-contained pneumatic pressure controller. It adopts bourdon tube or bellows sensing element to detect process pressure and outputs pneumatic signal to drive control valve actuator. It supports proportional only or proportional plus reset function. It can be configured for gauge pressure, vacuum or differential pressure measurement. Widely applied in oil,gas,chemical and refinery pipeline pressure control. Working principle: Pneumatic pressure sensing and closed-loop control Onboard components: Sensing element, flapper-nozzle assembly, pneumatic relay, setpoint adjustment knob, mounting bracket

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, setpoint calibration, output signal test, air tightness test

Programming software

No dedicated software required

Pneumatic Parameters

Output signal:3~15psi or 6~30psi pneumatic signal Supply air:20~100psi Process medium:Gas,liquid

Mechanical & Structure

Mounting: Pipe stand mount or direct mount on valve actuator Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +120℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher Wizard II pressure controller

System compatibility

Compatible with Fisher pneumatic actuators and globe/rotary control valves for on-site pressure closed-loop control.

Function

4150K is field-mounted pneumatic pressure controller manufactured by Fisher. It senses process pressure locally and automatically adjusts valve opening without electrical power. It can suppress pressure fluctuation and stabilize pipeline pressure. Direct actuator mounting saves installation space. It is widely used for pressure regulating loop without power supply.

Installation

Follow lockout/tagout safety procedure before installation. Isolate process pipeline. Mount controller on pipe stand or valve actuator. Connect process pressure sampling line and instrument air supply. Perform setpoint calibration and run stability test.

Interface

1/4"NPT process pressure port, 1/4"NPT supply air and output air ports, mounting bracket, no LED indicators on 4150K.

Diagnostic

Pressure control unstable: Sensing element damage or nozzle blockage. No output pressure: Supply air lost or relay fault. Setpoint drift: Spring fatigue or flapper wear.

Product Brief

4150K Fisher Wizard II pneumatic pressure controller,used for oil and gas pipeline local pressure closed-loop regulation,field self-powered pneumatic controller.
