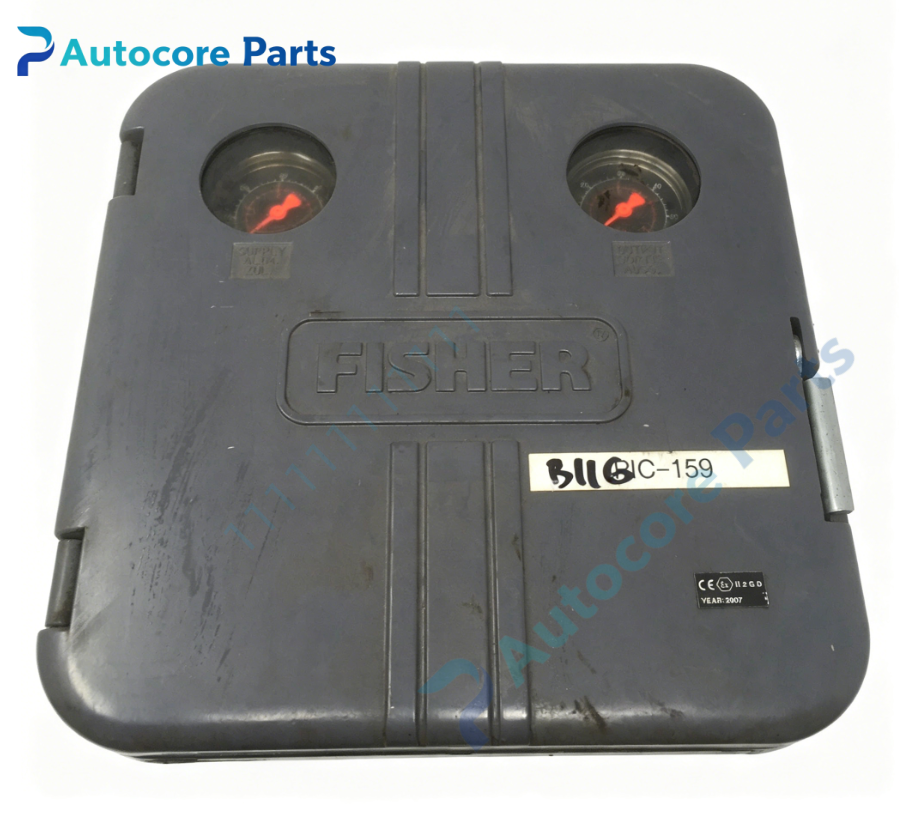

Fisher 4150KR Wizard II Pressure Controller

Technical Specifications

Model：4150KR Brand：Fisher Product Type: Reverse acting pneumatic pressure controller

Module Feature

Fisher 4150KR belongs to Wizard II series pneumatic pressure controller, R suffix represents reverse action configuration. It uses bourdon tube or bellows to sense process pressure and outputs pneumatic signal to control valve actuator. When process pressure rises, controller output air pressure decreases. It supports proportional or proportional-plus-reset function. Widely used in oil,gas and chemical pipeline pressure regulation. Working principle: Pneumatic pressure sensing reverse closed-loop control Onboard components: Sensing element, flapper-nozzle assembly, pneumatic relay, setpoint knob, mounting bracket

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, setpoint calibration, output signal test, air tightness test

Programming software

No dedicated software required

Pneumatic Parameters

Output signal:3~15psi pneumatic signal Supply air:20~100psi Process medium:Gas,liquid

Mechanical & Structure

Mounting: Pipe stand mount or direct mount on valve actuator Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +120℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher Wizard II series pressure controller

System compatibility

Compatible with Fisher pneumatic actuators and globe/rotary control valves for reverse action pressure control loop.

Function

4150KR is reverse acting pneumatic pressure controller manufactured by Fisher. It detects process pressure locally without power supply. Reverse action characteristic: higher process pressure reduces controller output air pressure to close valve. It stabilizes pipeline pressure for reverse requirement process application. It is widely used for self-operated pressure regulating loop.

Installation

Follow lockout/tagout safety procedure before installation. Isolate process pipeline. Mount controller on pipe stand or actuator. Connect process pressure sampling line and instrument air. Run calibration and pressure stability test.

Interface

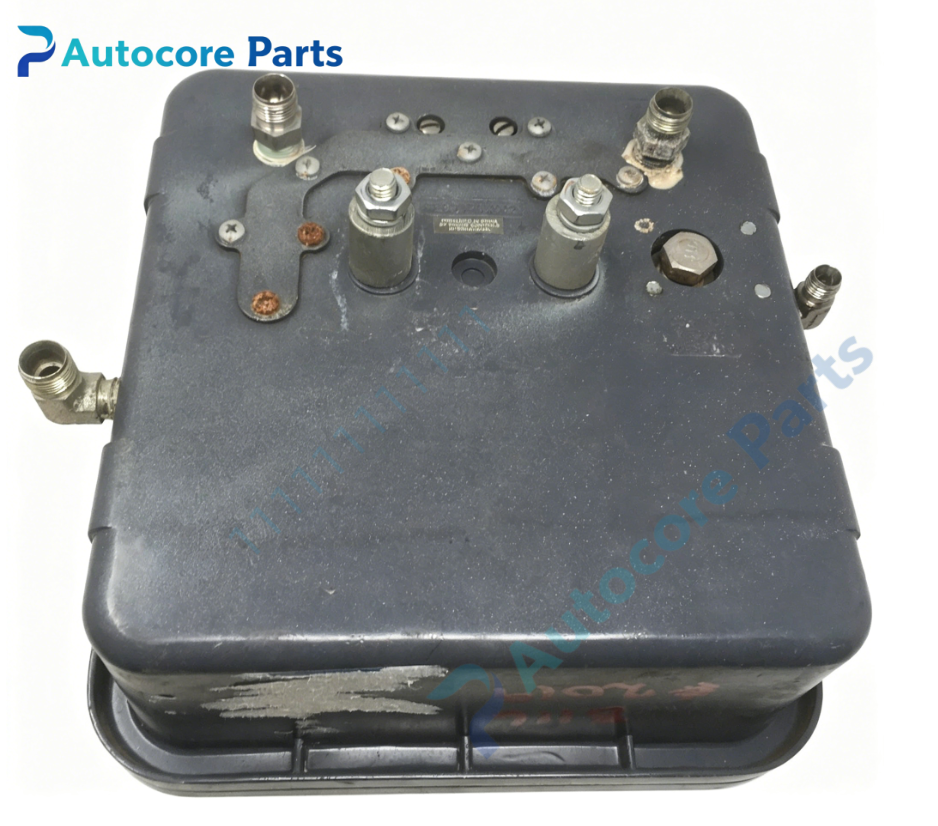

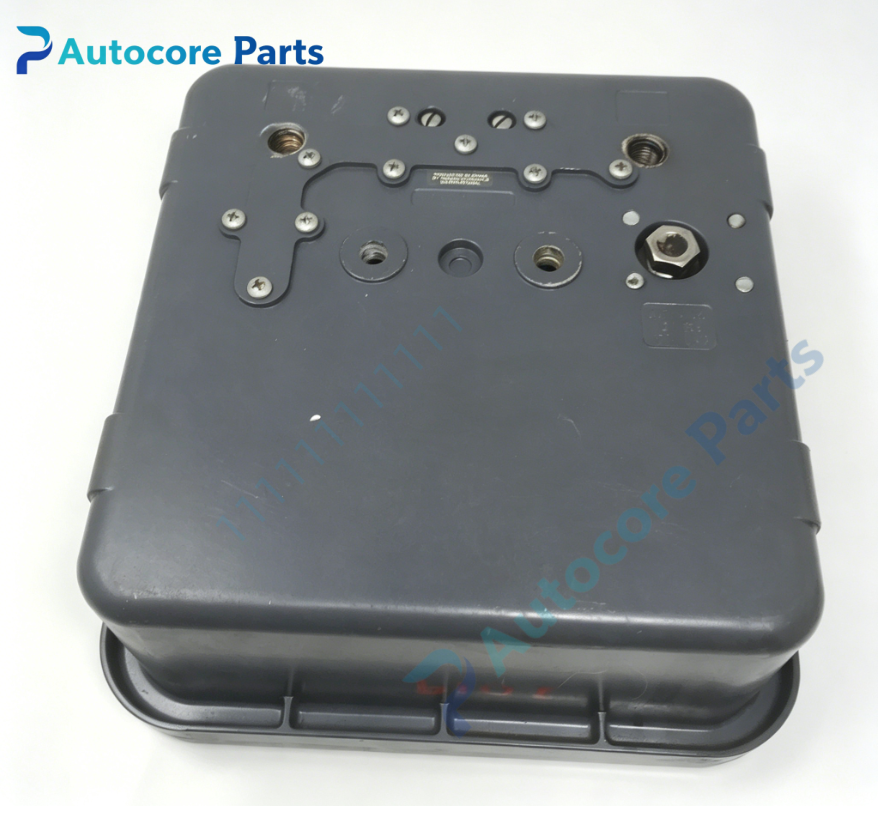

1/4"NPT process port, 1/4"NPT supply air & output air ports, mounting bracket, no LED indicators on 4150KR.

Diagnostic

Pressure unstable: Nozzle blockage or sensing element damage. No pneumatic output: Loss of supply air or relay fault. Setpoint drift: Spring fatigue or flapper wear.

Product Brief

4150KR Fisher Wizard II reverse acting pneumatic pressure controller,used for oil and gas pipeline reverse action pressure closed-loop regulation,self-powered field pressure controller.
