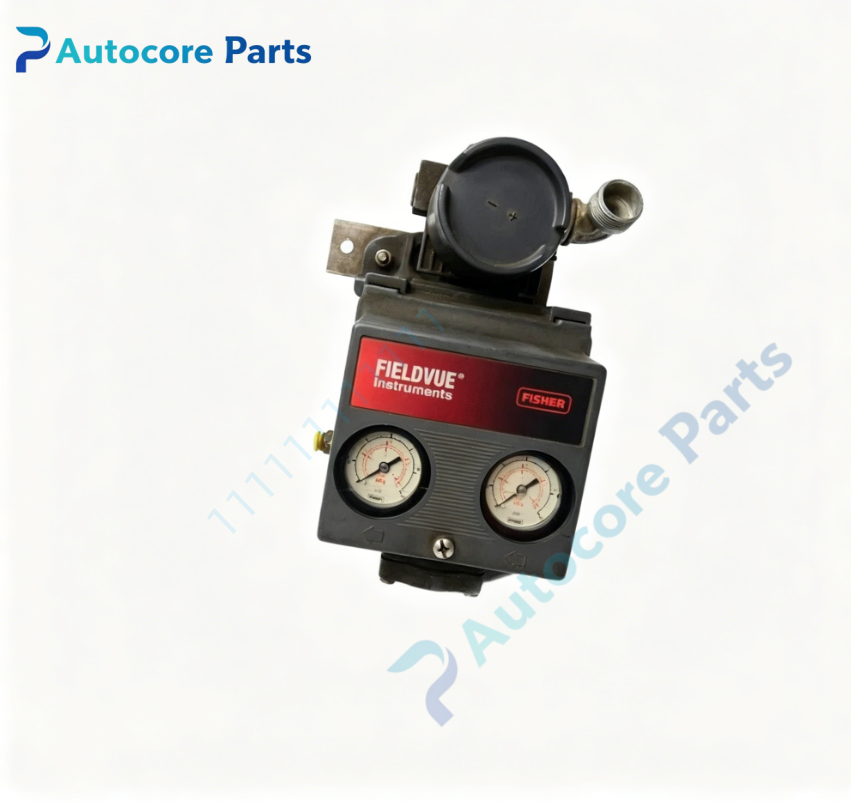

Fisher DT4000 FIELDVUE Digital Valve Controller

Technical Specifications

Model：DT4000 Brand：Fisher Product Type: FIELDVUE heavy duty electro-pneumatic digital valve controller

Module Feature

Fisher DT4000 is heavy-duty FIELDVUE digital valve controller, optimized for high vibration, severe service industrial environments. It adopts linkage-less non-contact magnetic travel feedback, eliminates mechanical lever wear and failure risk. Modular electronic and pneumatic assembly simplifies on-site maintenance and spare parts replacement. Supports HART 7 protocol and comprehensive valve health diagnostics. Widely applied in oil,gas,refining and power plant heavy-duty control valve loops.

Working principle:4-20mA+HART digital signal processing,non-contact magnetic stroke sensing,electro-pneumatic conversion and closed-loop pneumatic regulation Onboard components:Main electronic module,I/P converter,magnetic travel sensor,pneumatic relay,aluminum alloy housing,mounting bracket,sealing gaskets

LED indicatorsStatus LED indicator on housing

Hardware self-diagnosis

Supply air inspection,4-20mA loop signal test,auto stroke calibration,HART communication test,valve friction,dead band and actuator pressure diagnostic

Programming software

ValveLink software for configuration,calibration and advanced valve performance diagnostic

Pneumatic & Electrical Parameters

Input signal:4~20mA DC with HART7 Supply air:20~150psi clean dry instrument air Actuator type:Single acting / Double acting, linear or rotary

Mechanical & Structure

Mounting:Direct mount on Fisher pneumatic actuator,NAMUR standard Protection class:IP66 / NEMA 4X

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:ATEX,IECEx,FM,CSA,SIL2 capable Status:Fisher FIELDVUE heavy-duty digital valve controller

System compatibility

Compatible with Fisher 657,658,667,GX series pneumatic actuators,works with globe,butterfly and rotary control valves for HART DCS system.

Function

DT4000 is heavy-duty smart digital valve controller manufactured by Fisher. It receives 4-20mA+HART setpoint signal, compares real valve stroke via non-contact magnetic sensor and adjusts pneumatic output pressure to drive actuator. Built-in online diagnostics can detect valve friction, packing wear and actuator air leakage for predictive maintenance. HART communication supports remote configuration and alarm monitoring. It provides reliable performance under high vibration working conditions.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and loop power supply. Install magnetic strip on valve stem, mount DT4000 assembly onto actuator bracket. Connect instrument air tubing and 4-20mA HART signal cable. Run auto-calibration and full stroke test. Restore air and power supply, verify HART communication and diagnostic functions.

Interface

1/4"NPT pneumatic supply and output ports,1/2"NPT electrical conduit port,pressure gauge tapping port,status LED on DT4000.

Diagnostic

Valve no movement:Loss of instrument air or 4-20mA loop fault. Positioning instability:Magnetic sensor misalignment or I/P module failure. HART communication lost:Wiring damage or electronic board defect. Diagnostic alarm:High valve friction or actuator air leakage.

Product Brief

DT4000 Fisher FIELDVUE heavy-duty linkage-less digital valve controller,with non-contact magnetic feedback and HART7 communication,for linear/rotary control valve intelligent positioning under high vibration conditions,industrial smart electro-pneumatic positioner.
