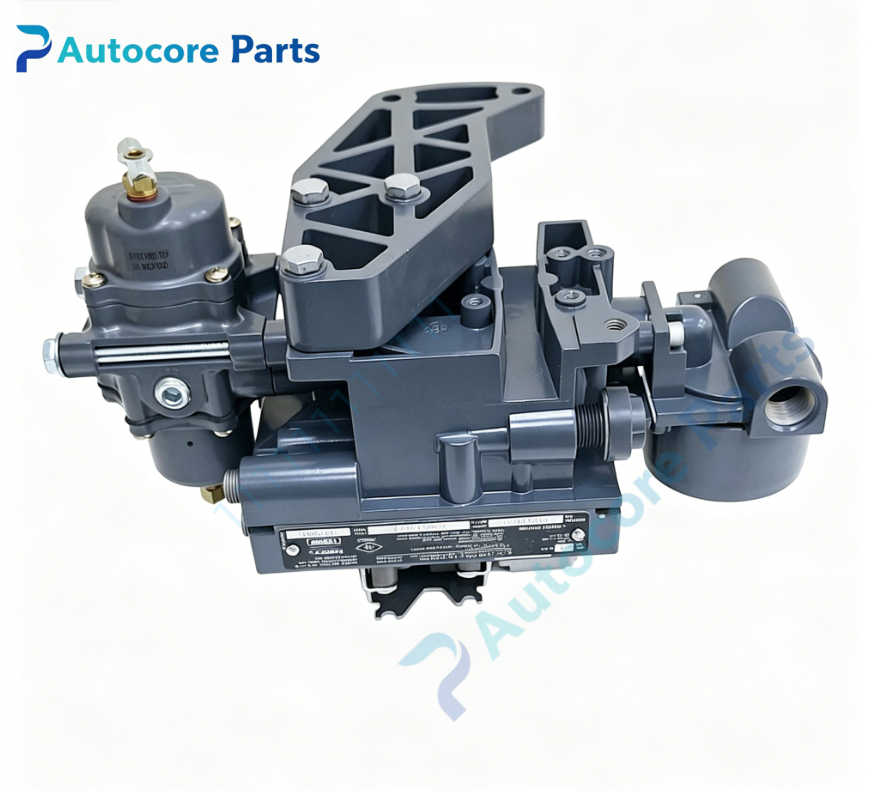

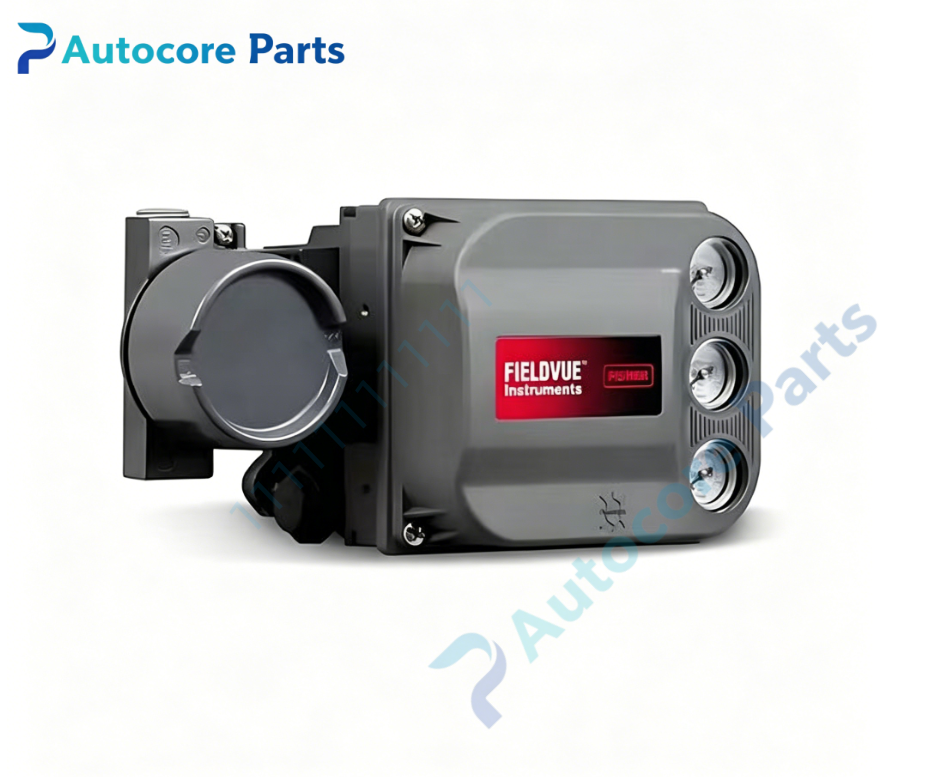

Fisher DVC6200 GE40184X292 FIELDVUE Digital Valve Controller

Technical Specifications

Model：DVC6200 / GE40184X292 Brand：Fisher Product Type: FIELDVUE DVC6200 series electro-pneumatic digital valve controller

Module Feature

Fisher DVC6200 GE40184X292 is FIELDVUE digital valve controller with linkage-less non-contact magnetic travel feedback. It removes mechanical lever, greatly reduces wear and maintenance work. Fully encapsulated electronic module with strong anti-vibration capability. It supports HART7 protocol and advanced valve performance diagnostics. GE40184X292 is the part number of the DVC6200 assembly. Widely used in oil,gas,chemical,power and refining control valve loops.

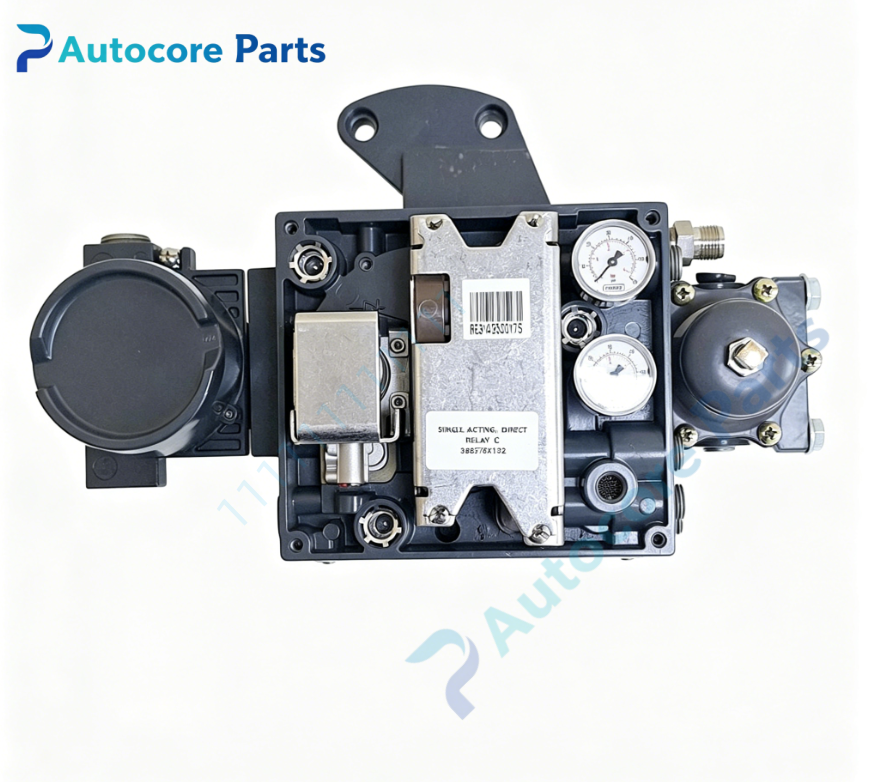

Working principle:4-20mA+HART signal processing,non-contact magnetic stroke sensing,electro-pneumatic conversion and closed-loop pneumatic regulation Onboard components:Main electronic assembly,I/P converter,magnetic feedback sensor,pneumatic relay,pressure gauge,aluminum housing,mounting bracket,sealing gaskets

LED indicatorsStatus LED indicator on housing

Hardware self-diagnosis

Supply air inspection,4-20mA loop signal test,auto stroke calibration,HART communication test,valve friction,dead band and actuator pressure diagnostic

Programming software

ValveLink software for configuration,calibration and advanced valve diagnostic

Pneumatic & Electrical Parameters

Input signal:4~20mA DC with HART7 Supply air:20~150psi clean dry instrument air Actuator type:Single acting / Double acting, linear or rotary

Mechanical & Structure

Mounting:Direct mount on Fisher pneumatic actuator,NAMUR standard Protection class:IP66 / NEMA 4X

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:ATEX,IECEx,FM,CSA,SIL2 capable Status:Fisher FIELDVUE DVC6200 series digital valve controller

System compatibility

Compatible with Fisher 657,658,667,GX series pneumatic actuators,works with globe,butterfly and rotary control valves for HART DCS system.

Function

DVC6200 GE40184X292 is smart digital valve controller manufactured by Fisher. It receives 4-20mA+HART setpoint signal, compares with real valve stroke via magnetic non-contact sensor and adjusts pneumatic output pressure to drive actuator. Built-in online diagnostics can detect valve friction, packing wear and actuator air leakage, support predictive maintenance. HART communication allows remote configuration and alarm monitoring. It improves valve positioning accuracy and reduces unplanned shutdown risk.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and loop power supply. Install magnetic strip on valve stem, mount DVC6200 assembly onto actuator bracket. Connect instrument air tubing and 4-20mA HART signal cable. Run auto-calibration and full stroke test. Restore air and power supply, verify HART communication and diagnostic functions.

Interface

1/4"NPT pneumatic supply and output ports,1/2"NPT electrical conduit port,pressure gauge tapping port,status LED on DVC6200 GE40184X292.

Diagnostic

Valve no movement:Loss of instrument air or 4-20mA loop fault. Positioning instability:Magnetic sensor misalignment or I/P module failure. HART communication lost:Wiring damage or electronic board defect. Diagnostic alarm:High valve friction or actuator air leakage.

Product Brief

DVC6200 GE40184X292 Fisher FIELDVUE linkage-less digital valve controller,with non-contact magnetic feedback and HART7 communication,for linear/rotary control valve intelligent positioning and online predictive diagnostics,industrial smart electro-pneumatic positioner.
