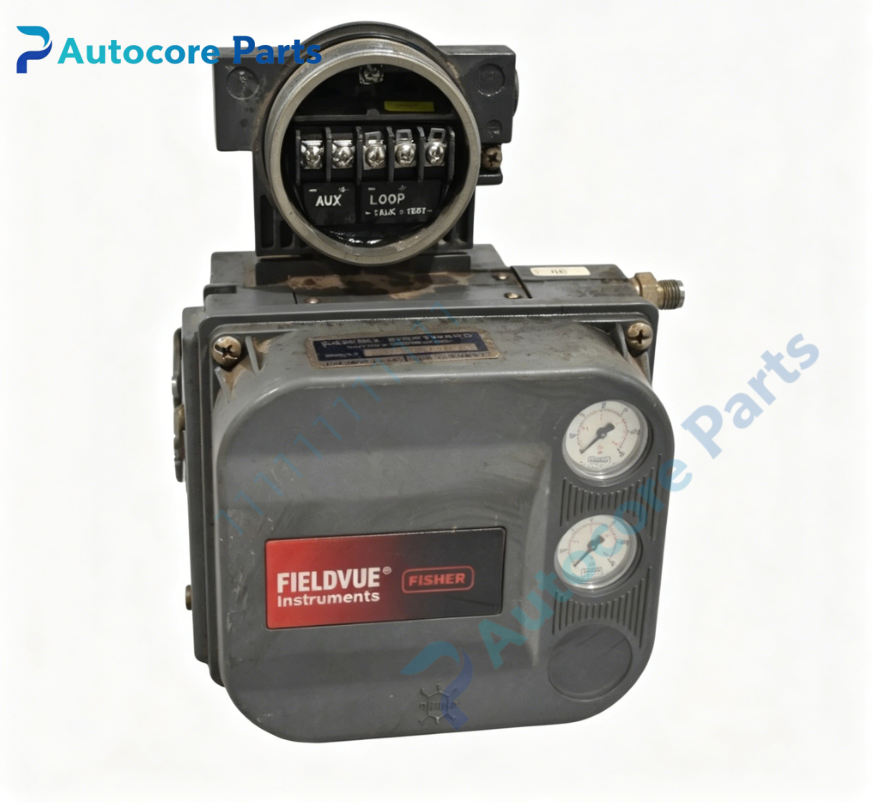

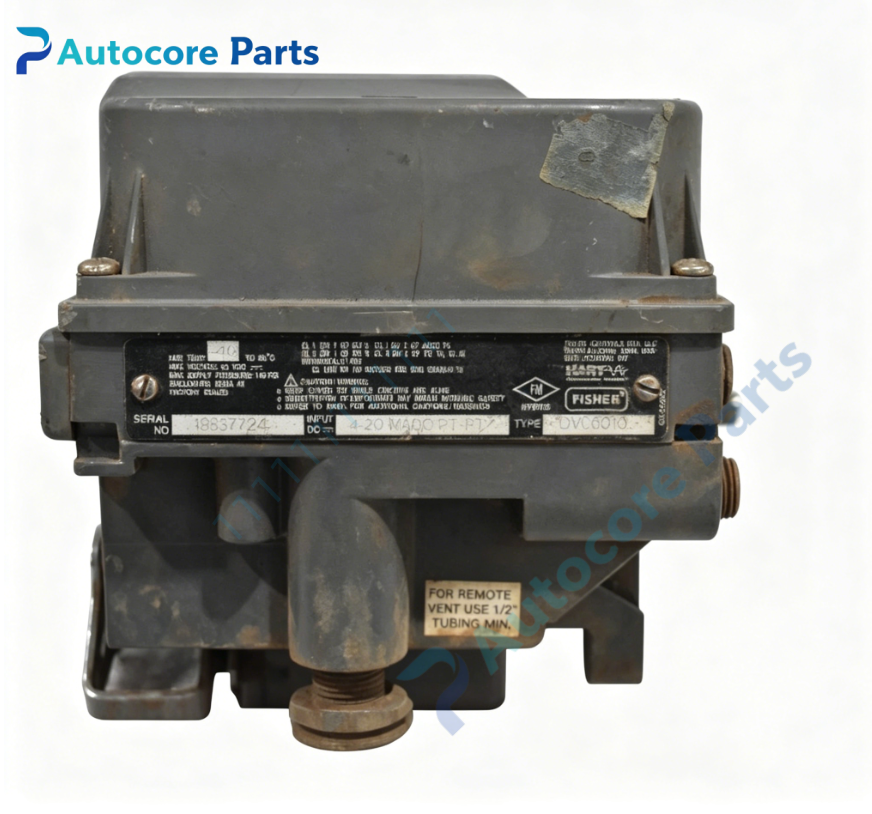

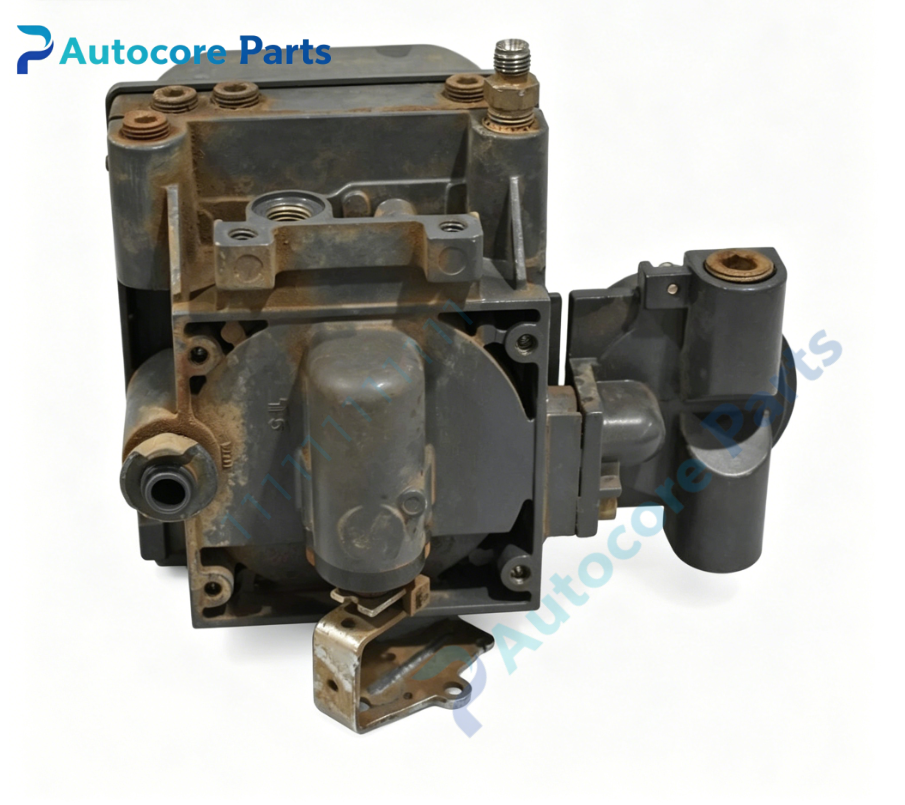

Fisher DVC6010 FIELDVUE Digital Valve Controller

Technical Specifications

Model：DVC6010 Brand：Fisher Product Type: FIELDVUE DVC6000 series electro-pneumatic digital valve controller

Module Feature

Fisher DVC6010 belongs to DVC6000 series FIELDVUE digital valve controller. It adopts linkage-less non-contact magnetic travel feedback, eliminating wear from mechanical linkage. Modular construction simplifies spare parts replacement and field maintenance. Supports HART 7 protocol for bi-directional digital communication. Built-in comprehensive valve diagnostic functions to monitor actuator pressure, valve friction and dead band. Suitable for heavy-duty process industries. Widely used in oil,gas,chemical and power plant control valve loops.

Working principle:4-20mA analog + HART digital signal processing, non-contact travel feedback, electro-pneumatic conversion and closed-loop pneumatic control Onboard components:Main electronic module,I/P converter,magnetic travel sensor,pneumatic relay,terminal block,aluminum housing,mounting bracket,sealing gaskets

LED indicatorsStatus LED indicator on controller housing

Hardware self-diagnosis

Supply air inspection,4-20mA loop signal test,auto stroke calibration,HART communication test,valve friction and pressure diagnostic check

Programming software

ValveLink software for configuration,calibration and advanced valve performance diagnostics

Pneumatic & Electrical Parameters

Input signal:4~20mA DC with HART 7 Supply air:20~150psi clean dry instrument air Actuator type:Single acting / Double acting, linear or rotary

Mechanical & Structure

Mounting:Direct mount on Fisher pneumatic actuator,compliant with NAMUR standard Protection class:IP66 / NEMA 4X

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:ATEX,IECEx,FM,CSA,SIL2 Status:Fisher DVC6000 series digital valve controller

System compatibility

Compatible with Fisher 657,658,667 series pneumatic actuators,works with globe and rotary control valves for HART-based DCS system.

Function

DVC6010 is smart digital valve controller manufactured by Fisher. It receives 4-20mA+HART setpoint signal, compares with real valve travel from non-contact magnetic sensor and adjusts pneumatic output pressure to drive actuator. It provides high positioning accuracy and online predictive diagnostics for valve and actuator health status. HART communication supports remote configuration,parameter reading and alarm monitoring. It reduces unexpected shutdown and maintenance expense.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and loop power. Install magnetic feedback component on valve stem, mount DVC6010 bracket onto actuator. Connect instrument air tubing and 4-20mA HART signal cable. Run auto-calibration and full stroke test. Restore air and power supply, verify HART communication and valve diagnostic results.

Interface

1/4"NPT pneumatic supply and output ports,1/2"NPT electrical conduit port,pressure gauge tapping port,status LED on DVC6010.

Diagnostic

Valve no movement:Loss of instrument air or 4-20mA loop failure. Positioning drift:Magnetic sensor misalignment or I/P module malfunction. HART communication loss:Wiring fault or electronic board damage. Diagnostic alarm:Abnormal valve friction or actuator air leakage.

Product Brief

DVC6010 Fisher FIELDVUE DVC6000 series digital valve controller,with linkage-less non-contact magnetic feedback and HART7 communication,for linear/rotary control valve intelligent positioning and online predictive diagnostics,industrial smart electro-pneumatic positioner.
